2K 4K 8K Full HD Small Pixel Fine Pitch Led Display Video Wall
3200k-9300k
Advantage:
1. Magnesium alloy die casting, single cabinet weight is only 6KG
2. Cabinet size: 640*480*50mm, Wide Viewing Angle: 160° (H),160°
(V)
3. High Reliability: Power and signal dual backup
4. Front maintenance, front installation: Modules with maginets
make it easier to front maintainance.
Ultra-light, Ultra-thin
1. Magnesium alloy die casting, single cabinet weight is only 6KG
2. Cabinet size: 640*480*50mm

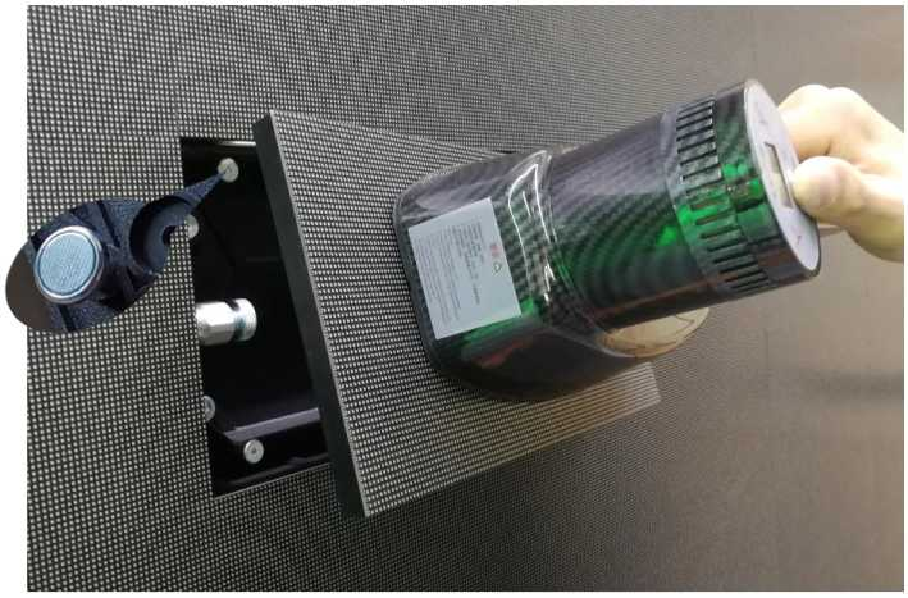

Front maintenance, front installation
Modules with maginets make it easier to front maintainance
Wide Viewing Angle
ViewingAngle:160° (H),160° (V)
High refresh rate (7680hz) High grey scale(16bit) which can be the
best video visual
performance and no scan line under the camara
Specification
| Parameters | LH1.25 | LH1.5 | LH1.6 | LH1.8 | LH2.0 | LH2.5 | LH3.0 | LH4.0 | LH5.0 |
| Pixel Pitch(mm) | 1.25 | 1.538 | 1.667 | 1.839 | 2 | 2.5 | 3.076 | 4 | 5 |
| LEDconfiguration | SMD1010 | SMD1212 | SMD1515 | SMD2020 |
| Module size(mm) | 320*160*14 |
| Module resolution | 256*128 | 208*104 | 192*96 | 172*86 | 160*80 | 128*64 | 104*52 | 80*40 | 64*32 |
| Cabinet size(mm) | 640*480*50 |
| Cabinet resolution | 512*384 | 416*312 | 384*288 | 344*258 | 320*240 | 256*192 | 208*156 | 160*120 | 128*96 |
| Cabinet weight(kg) | 6 |
| Brightness(cd/m2) | 500-1000 |
| Max Power Consumption | 580(W/m2) | 450(W/m2) | 460(W/m2) | 420(W/m2) | 480(W/m2) | 580(W/m2) |
| Avg Power Consumption | 193(W/m2) | 150(W/m2) | 193(W/m2) | 140W/m2) | 160(W/m2) | 193(W/m2) |
| Refresh rate | 3840Hz | 1920Hz |
| IPRatingfFront/Rear) | IP31/IP30 |

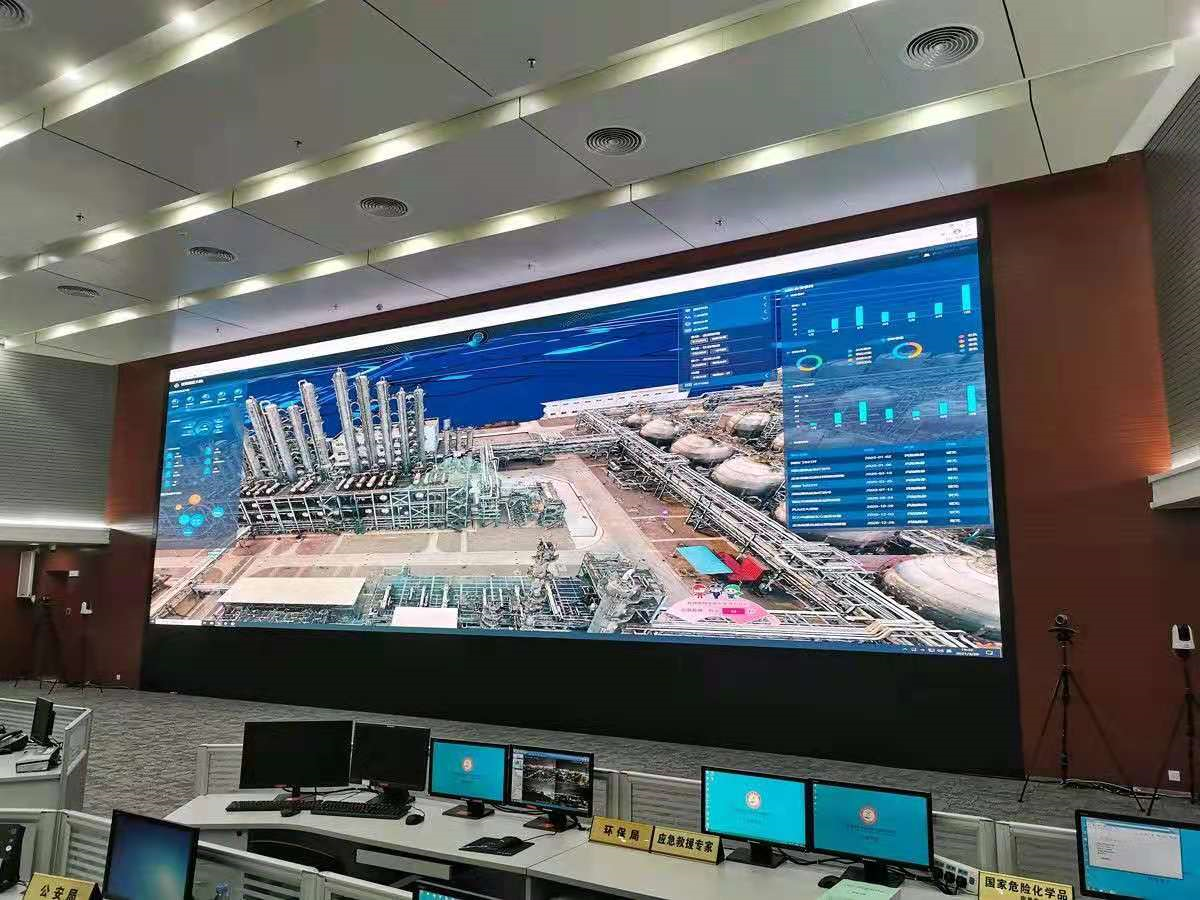

Applications:
Small Pixel LED display are widely used in different applications,
the main application fields
are command and dispatch center, security monitoring, video
conference, exhibition, radio and
television studio, meteorological information center, production
safety monitoring, environment
monitoring, fire protection, maritime flood control, energy,
electric power, finance, securities market,
shopping malls, hotels, airports, subway and so on
FAQ :
Q1. What about LED Display MOQ?
A1. Any quantity is acceptable for your order. And the price is
negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to
the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt
industry top quality material,we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free,
spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
