P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display

Advantage:

1. Ultra-light, Ultra-thin- Magnesium alloy die casting, single cabinet weight is only 6KG.
Cabinet size:640mm*480mm*50mm
2. Wide Viewing Angle ·Viewing Angle: 160°(horz.), 160°(vert.)
3. Excellent Visual Effect: Low brightness with high gray level and high refresh rate,
stable dynamic display effect and the visual experience is more comfortable.
4. High Reliability: Power and signal dual backup

Specifications
Model	VA 1.2	VA 1.5	VA 1.6	VA 1.8	VA 1.8
Pixel Pitch	1.25	1.53	1.667	1.83	1.86
Application	UHD Display
Pixel Density	640000 dots/m²	427186 dots/m²	360000 dots/m²	298605 dots/m²	289050 dots/m²
LED Type	SMD1010	SMD1212	SMD1212	SMD1515	SMD1515
Brightness	＞700cd/m²	＞700cd/m²	＞700cd/m²	＞700cd/m²	＞700cd/m²
Module Size	320*160 mm	320*160 mm	320*160 mm	320*160 mm	320*160 mm
Module Resolution	256*128	208*104	192*96	174*87	172*86
Cabinet Size	640*480 mm	640*480 mm	640*480 mm	640*480 mm	640*480 mm
Cabinet Resolution	512*384	416*312	384*288	348*261	344*258
Cabinet Material	Die-casting Aluminum
Cabinet Weight	7kg/cbn
Viewing Angle	H:160° / V:140°
Refresh Rate	≥3840Hz
Viewing Distance	1.2m~15m	1.5m~20m	1.6m~25m	1.8m~30m	1.8m~30m
Gray Scale	14~16bit
Max Power Consumption	700W/m²	700W/m²	800W/m²	800W/m²	800W/m²
Avg. Power Consumption	350W/m²	350W/m²	400W/m²	400W/m²	400W/m²
Power Input	AC 100～240V
Frequency	50～60Hz
Maintenance	100% Front Service
Operating Temperature	-20℃～50℃
Operating Humidity	10%～95%
Lifetime	100,000H

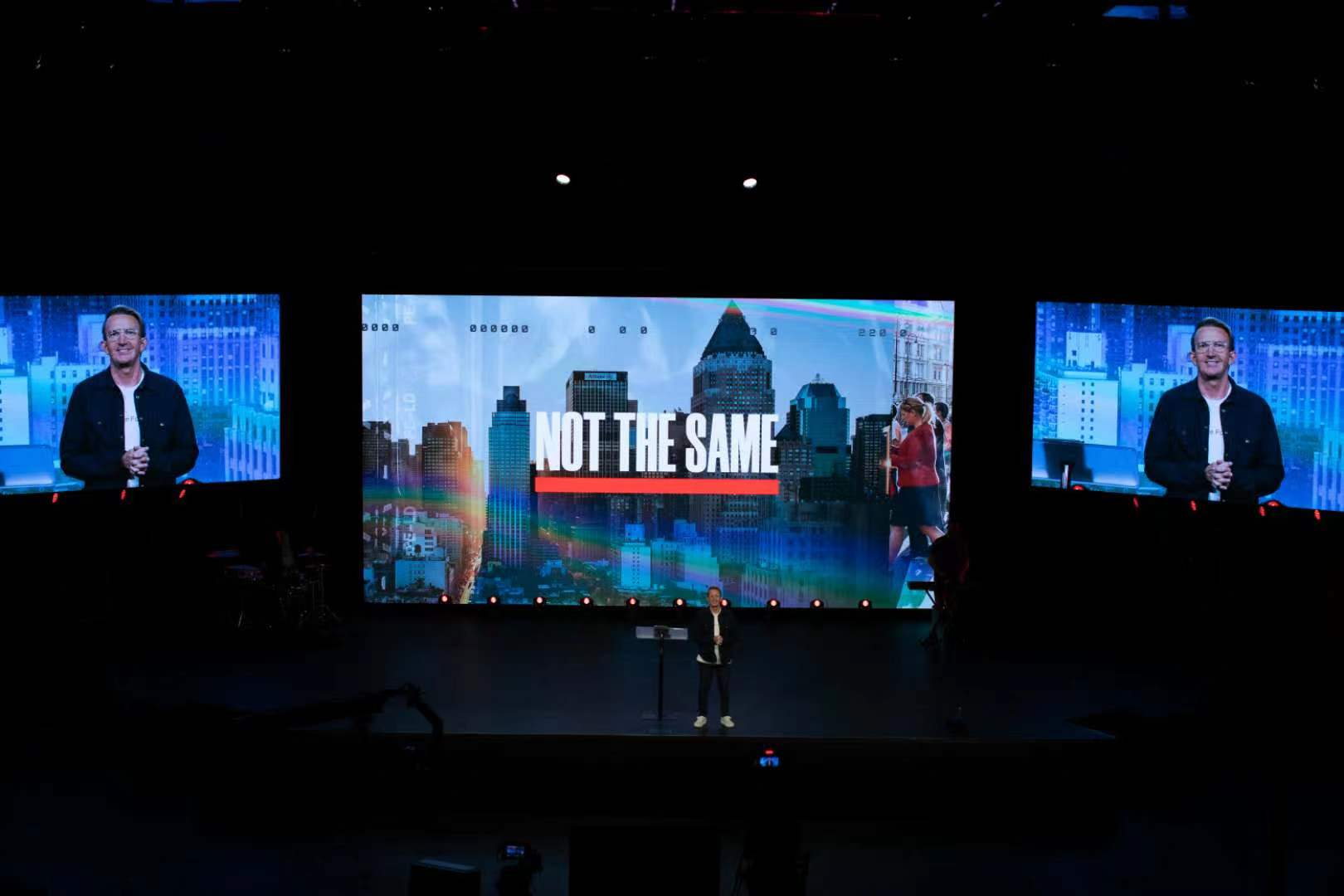

Applications:

Small Pixel LED display are widely used in different applications, the main application fields

are command and dispatch center, security monitoring, video conference, exhibition, radio and

television studio, meteorological information center, production safety monitoring, environment

monitoring, fire protection, maritime flood control, energy, electric power, finance, securities market,

shopping malls, hotels, airports, subway and so on

FAQ :

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
