Ultra HD P0.9 P1.5 P1.6 P1.25 Fine Pitch Led Display Screen Indoor Fixed Installation

Advantages

1. Exstremely Light&slim, only 5kg per cabinet and 38mm thickness

2. 2k/4k/8k Standard Resolution, 16:9 Perfect proportion

3. Super resolution rate, 3840 HZ, Non-srg

4. Perfect display efect, multiple choice 0.93/1.25/1.56/1.87

5. Easy maintenance and installation splicing without cables

Large screen smart TV,cabinet size 600x337.5mm, can reach 2K 4k and 8K

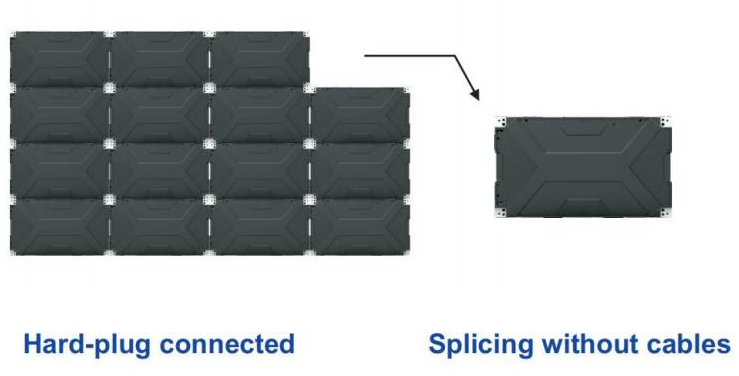

Splicing and Plug

Hard connection without wires, very simple and concise.

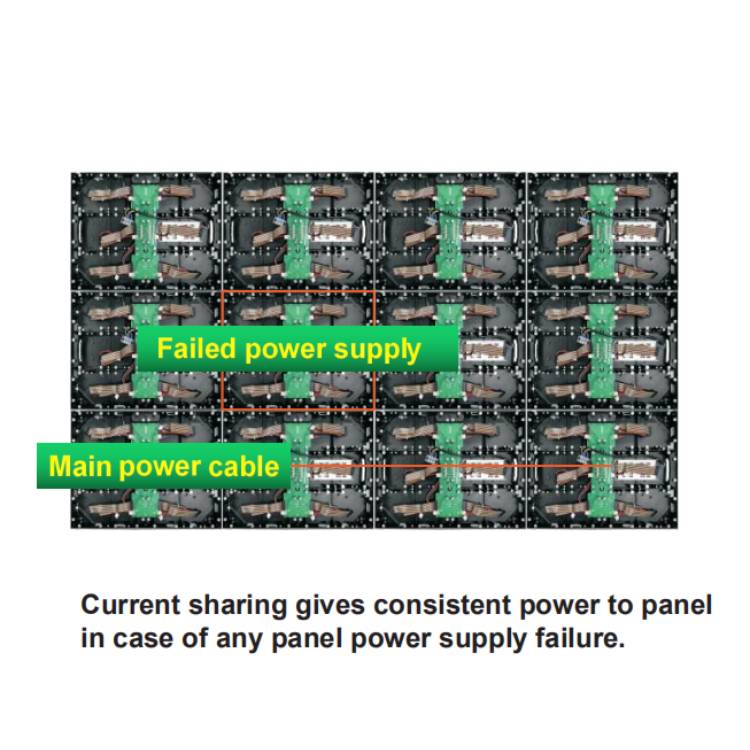

Data redundancy sharing backup Data input and output redundancy Design

Electromagnetic compatibility and protection

Specifications

Item		Parameter
Basic Parameters	Pixelpitch size	1.25mm
	Pixel configuration	1R1G1B
	Pixel density	640000/m2
	Module resolution	120(W)*135(H)
	Module size	150mm*168.75mm
	Cabinet size	600mm*337.5mm*28mm
	Cabinet weight	3.2kgs
Optical Parameters	Brightness and gray grade calibration for single pixel	Yes
	White balance brightness	≥600cd/㎡
	Color temperature	3200K—9300K(Adjustable)
	Horizontal viewing angle	≥170°
	Vertical viewing angle	≥170°
	Viewing distance	≥3meter
	Brightness uniformity	≥97%
	Contrast rate	≥3000:1
Process Performance	Signalprocessing bits	16bit*3
	Gray level	65536
	Control distance	Internet cable: 100m, fibre cable: 10KM
	Driving method	High gray level constant current driving IC
	Frame change rate	≥60HZ
	Refresh rate	≥3840HZ
	Control way	synchronous
	Brightness adjustment range	0to 100grades
Working Parameters	Continous working time	≥72hours
	Typical life time	50,000 hours
	Protection grade	IP20
	Working temperature range	-20 ℃~50 ℃
	Working humidity range	10 %- 80% RH no coagulation
	Storage temperature range	-20 ℃~60 ℃
Power	Working voltage	DC:4.2-5V
	Input power	AC:220×(1±10%)V, 50×(1±5%)Hz
	Max power consumption	680 w/㎡
	Average power consumption	270 w/㎡

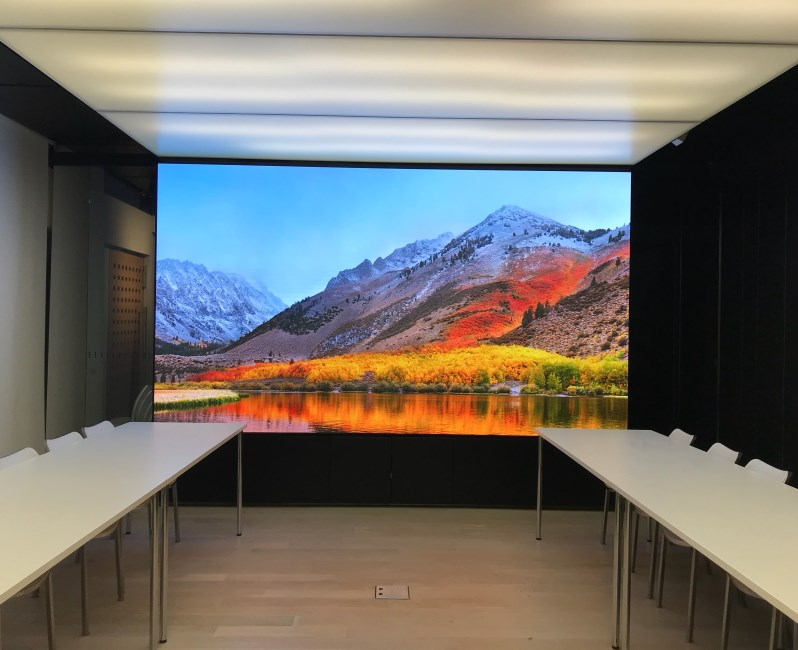

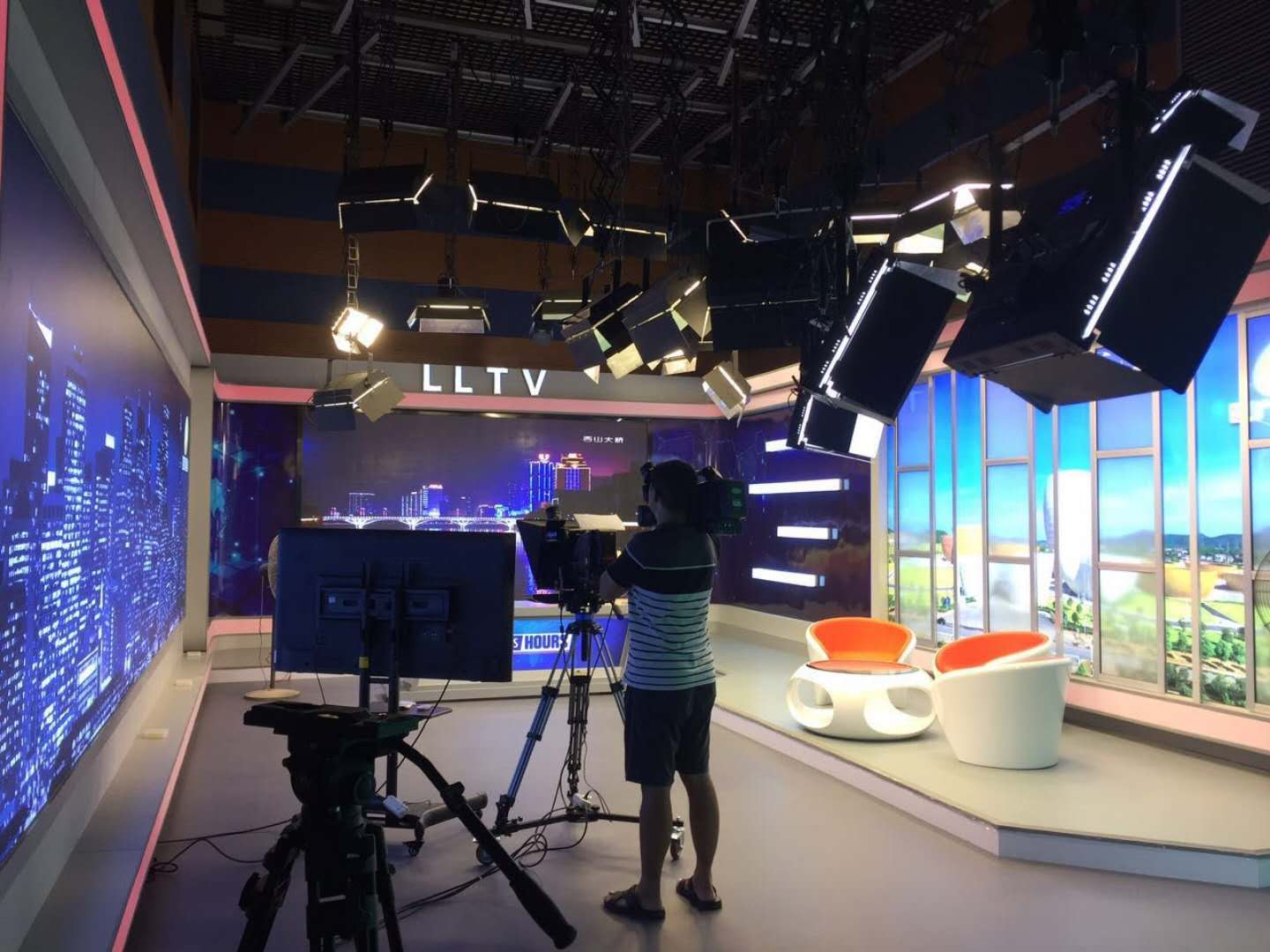

Application Area

Fine Pixel LED display are widely used in different applications, the main application fields

are command and dispatch center, security monitoring, video conference, exhibition, radio and

television studio, meteorological information center, production safety monitoring, environment

monitoring, fire protection, maritime flood control, energy, electric power, finance, securities market,

shopping malls, hotels, airports, subway Medical system, traffic center, command system, Studio system etc.

FAQ :

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc

Shenzhen Longvision Technology Co., Ltd. (Longvision) is a professional LED display solution servicer. It is a high-tech enterprise focusing on providing customers with advertising display, data visualization, stage display equipment and overall technical solutions for commercial display. The company's core business includes small-pitch led screens, indoor and outdoor fixed led screens, rental led screens, creative led screens, window led screens, and stadium led screens. Its products are sold to more than 130 countries and regions, and are widely praised.

Longvision has a complete design, R & D, manufacturing, sales and installation service system, and an independent production base with modern workshops and automated production equipment. In addition, the company also recruited a large number of high-quality professional design, research and development, production and sales personnel, and created an excellent and stable service team. Specially for upholding down-to-earth and honest behavior, insisting on honesty, innovation in technology and processes, and treating each order as a quality project for production and supervision. In just a few years, it has been specially obtained It has been highly recognized by the country and industry.

"To Make the biggest Contribution to Staff’s Better Life and Social Progress", this is a special corporate vision, and it is also the goal to strive for. We would like to be together with you to "show a better world"!
