Small 2.5 Mm Pixel Fine Pitch Led Display Ultra Thin Indoor Fixed Installation

Ask Lasest Price
Model Number :	VL SERIES
Brand Name :	Longvison
Supply Ability :	3000 Square Meter/Square Meters per Month
Price :	$399.00 - $899.00/Square Meter
Certification :	CE FCC UL ROHS CCC
Payment Terms :	D/P, T/T, Western Union, MoneyGram
Delivery Time :	4-10 days

Add to Cart

Product Details
Company Profile

Small 2.5 Mm Pixel Fine Pitch Led Display Ultra Thin Indoor Fixed Installation

Small 2.5 Mm Pixel Fine Pitch Led Display Ultra Thin Indoor Fixed Installation

Advantages

1. High Precision: all-in-one design with die-casting aluminum fashioning technology

2. 100% Front Maintenance:all components dismount from front side,

fast and easy

3. Wireless Connection: adopt hard-wired connector, support hot plug to dismounting easily

4. Fast Heat Dissipation: multi-point heat emission holes speed up efficiency of heat dissipation

High Definition Led Screen TV P1.2 P1.5 P1.8 4K 8K Led Full Color LED Video Wall Screen 1

Best display effect, refresh more high, special 16 bit high gray level, high refresh drive constant current IC,
unique blanking circuit, protect LED, prevent surge leakage; Support system multiple redundant backup,

module point by point chroma correction, power supply double backup.

Each module adopts independent control card control, higher integration, stronger stability,cleaning

and maintenance is convenient,

Using ultra-high hardness epoxy package, earthquake resistance, pressure resistance, knock and

collision resistance

High Definition Led Screen TV P1.2 P1.5 P1.8 4K 8K Led Full Color LED Video Wall Screen 5

16:9 golden ratio, which can be 2K/4K/8K resolution, reaching the best viewing size of video

visual performance

20000:1 High Contrast,enhancing the picture details, and restoring the natural color;

Applications:

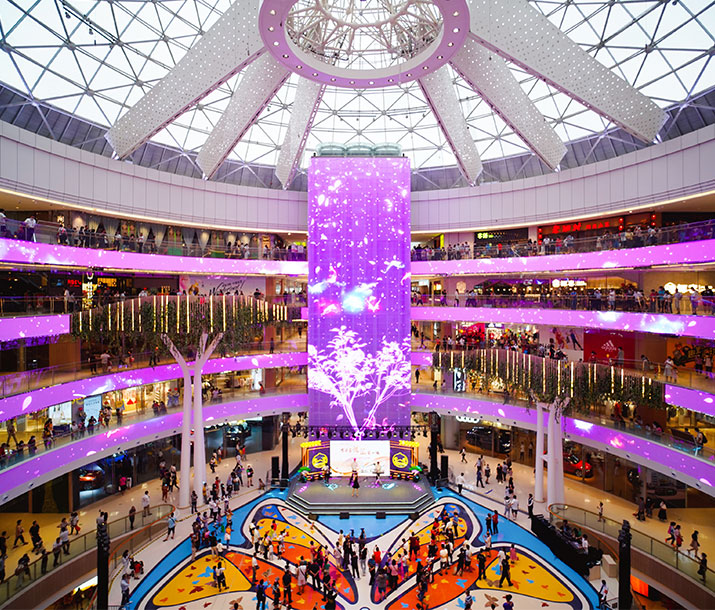

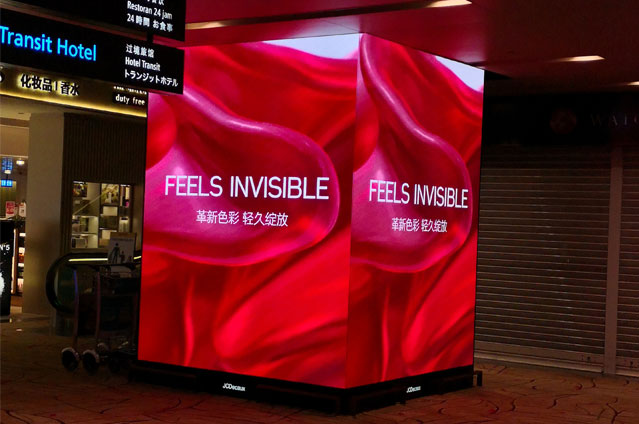

Small Pixel LED display are widely used in different applications, the main application fields

are command and dispatch center, security monitoring, video conference, exhibition, radio and

television studio, meteorological information center, production safety monitoring, environment

monitoring, fire protection, maritime flood control, energy, electric power, finance, securities marke,

shopping malls, hotels, airports, subway and so on

Small 2.5 Mm Pixel Fine Pitch Led Display Ultra Thin Indoor Fixed Installation

Specifications

Model	VL4912	VL4915	VL4918	VL4925
Pixel Pitch(mm)	1.29mm	1.579mm	1.875mm	2.5mm
Application	Indoor UHD	Indoor UHD	Indoor UHD	Indoor UHD
Pixel Density (dots/m²)	600586	401084	284444	160000
LED Type	SMD1010	SMD1010	SMD1515	SMD2121
		SMD1212

Brightness (cd/m²)	200~800nit adjustable

Module Size (mm*mm)	240mm*240mm

Module Resolution (dots*dots)	186*186	152*152	128*128	96*96
Cabinet Size (WHD)	48048060mm/96048060mm

Cabinet Resolution (dots*dots)	372372/744372	304304/608304	256256/512256	192192/384192
Cabinet Material	Die-casting Aluminum

Cabinet Weight (±0.25kg)	26kg/m²

Viewing Angle (Deg)	H:160°/V:140°

Refresh Rate (Hz)	>3840Hz

Viewing Distance (m)	>1m	>1.5m	>2m	>2.5m
Gray Scale (bit)	14-16bit

Max./Avg. Power Consumption(m²)	600W/100W~300W

AC Power Input(V)	AC 200～240V

AC Power Frequency (Hz)	50～60Hz

Level of Protection	Front: IP41/Rear: IP20

Maintenance	100% Front Service

FAQ:

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable

for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
