    Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5

    Ask Lasest Price
    Model Number : VL SERIES
    Brand Name : Longvison
    Supply Ability : 3000 Square Meter/Square Meters per Month
    Price : $-589-$1300.00/Square Meter
    Certification : CE FCC UL CCC ROHS
    Payment Terms : D/P, T/T, Western Union, MoneyGram
    Delivery Time : 5- 8 days
    • Product Details
    • Company Profile

    Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5

    Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5


    Advantages
    1. High Precision: all-in-one design with die-casting aluminum fashioning technology
    2. 100% Front Maintenance:all components dismount from front side,
    fast and easy
    3. Wireless Connection: adopt hard-wired connector, support hot plug to dismounting easily
    4. Fast Heat Dissipation: multi-point heat emission holes speed up efficiency of heat dissipation

    Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
    Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
    Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
    Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
    Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5

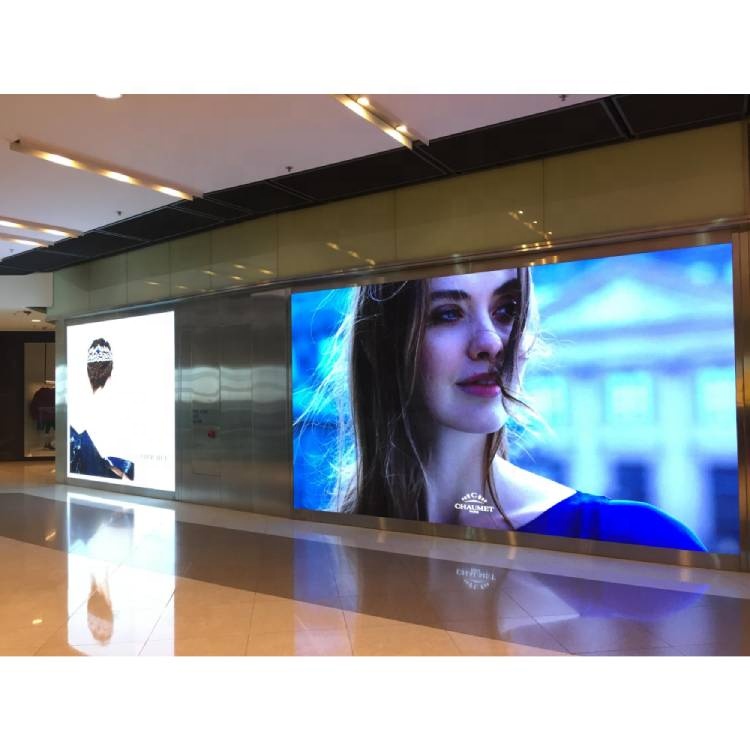

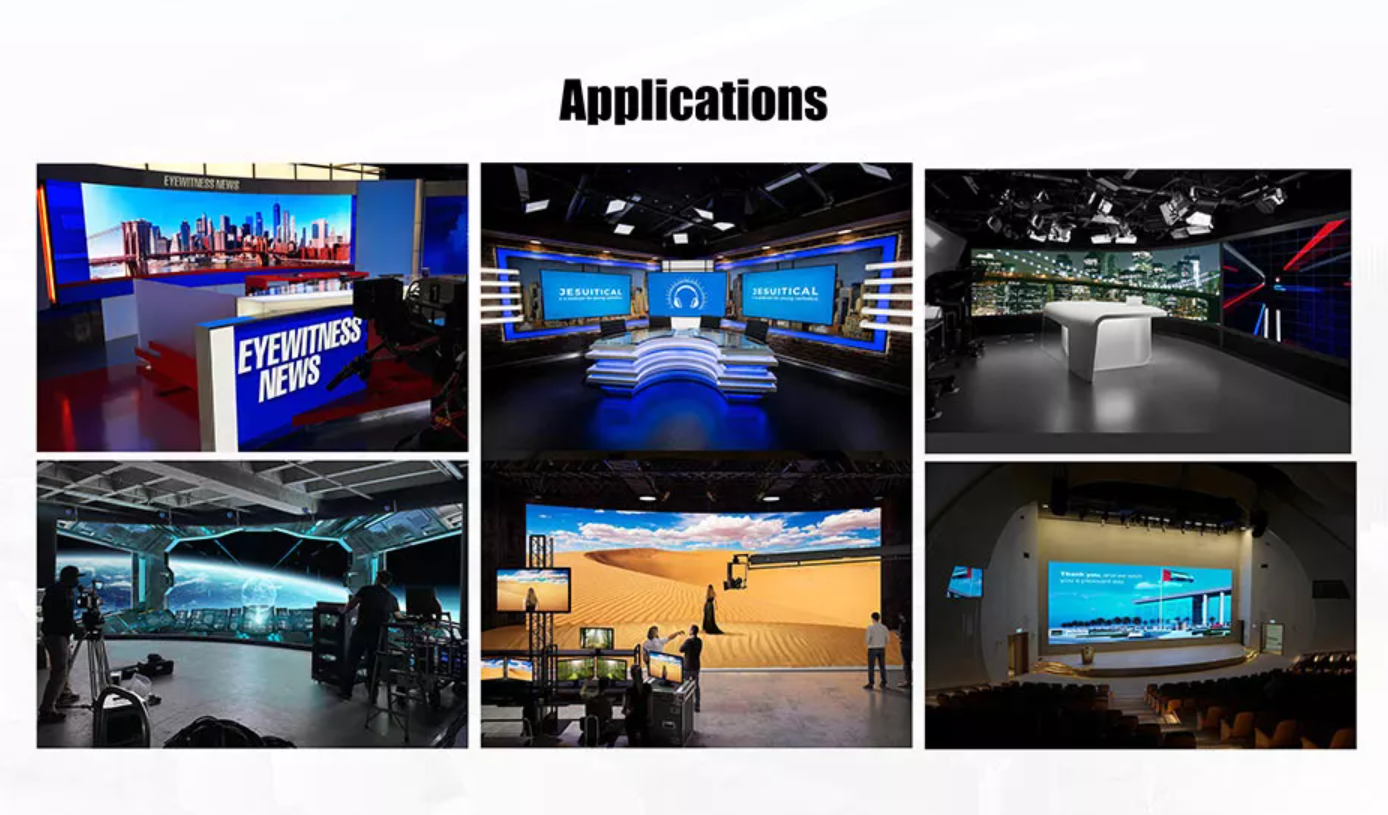

    Applications:
    Fine pitch Indoor LED display screenhas good color performance, low energy consumption
    characteristics, small spacing LED display can meet the requirements of high quality of suitable
    for indoor conference room, exhibition hall, teaching and training, hotel banquet hall, indoor office
    building, shopping mall propaganda screen, TV studio and so on.
    Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
    Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
    Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
    Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
    Specifications
    Model
    VL4912
    VL4915
    VL4918
    VL4925
    Pixel Pitch(mm)
    1.29mm
    1.579mm
    1.875mm
    2.5mm
    Application
    Indoor UHD
    Indoor UHD
    Indoor UHD
    Indoor UHD
    Pixel Density (dots/m²)
    600586
    401084
    284444
    160000
    LED Type
    SMD1010
    SMD1010
    SMD1515
    SMD2121
    SMD1212
    Brightness (cd/m²)
    200~800nit adjustable
    Module Size (mm*mm)
    240mm*240mm
    Module Resolution (dots*dots)
    186*186
    152*152
    128*128
    96*96
    Cabinet Size (W*H*D)
    480*480*60mm/960*480*60mm
    Cabinet Resolution (dots*dots)
    372*372/744*372
    304*304/608*304
    256*256/512*256
    192*192/384*192
    Cabinet Material
    Die-casting Aluminum
    Cabinet Weight (±0.25kg)
    26kg/m²
    Viewing Angle (Deg)
    H:160°/V:140°
    Refresh Rate (Hz)
    >3840Hz
    Viewing Distance (m)
    >1m
    >1.5m
    >2m
    >2.5m
    Gray Scale (bit)
    14-16bit
    Max./Avg. Power Consumption(m²)
    600W/100W~300W
    AC Power Input(V)
    AC 200~240V
    AC Power Frequency (Hz)
    50~60Hz
    Level of Protection
    Front: IP41/Rear: IP20
    Maintenance
    100% Front Service

    FAQ:


    Q1. What about LED Display MOQ?
    A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

    Q2. What about Longvision capacity?
    A2.3000sqm per month.
    8 modernized dust-free and static-free production lines,
    6 new YAMAHA and PANASONIC high speed SMT machines,
    2 large leadless reflow oven
    250 skilled workers.

    Q3. When will you make the delivery?
    A3. 3-5 working days when we have LED module stock
    10-15 days for the new production led finished screen according to the size and quantities of your order.

    Q4. How about the warranty time?
    A4. Our standard is 2 years.
    But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

    Q5. Do you provide any free spare parts in each order?
    A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.

    Q6. What`s trade terms you accept?
    A6. We accept EXW,CIF,CNF,DDP,DDU etc
