P12 P15 DIP Outdoor Led Curtain Screen Mesh For Advertising 8000nits

Ask Lasest Price
Model Number :	EV series
Brand Name :	Longvision
Supply Ability :	3000 Square Meter/Square Meters per Month
Price :	negotiable
Certification :	CE, ROHS, UL, FCC
Payment Terms :	T/T
Delivery Time :	7-20 work days

Add to Cart

Product Details
Company Profile

P12 P15 DIP Outdoor Led Curtain Screen Mesh For Advertising 8000nits

Advantages

1. Independent plug and pull new technology for single light strip, to solve signal and power synchronously transmission problem

2. Strong tail board design, quick mounting clip foot, more safe and faster, high flatness

3. Unique heat sink design to improve heat dissipation, ensure long lifespan of LED lamp

4. IP67 waterproof, level 12 windproof, 100% VO, super high safety factor, to ensure long lifespan of LED lamp

Product Description

1. Colorful

Colors can be customized to better blend into the building

P12 P15 DIP Outdoor Led Curtain Screen Mesh For Advertising 8000nits

2. Light as a Feather

Aluminum frame at 18.4kg/㎡, greatly reduce the load-bearing requirements on buildings and steel structures..

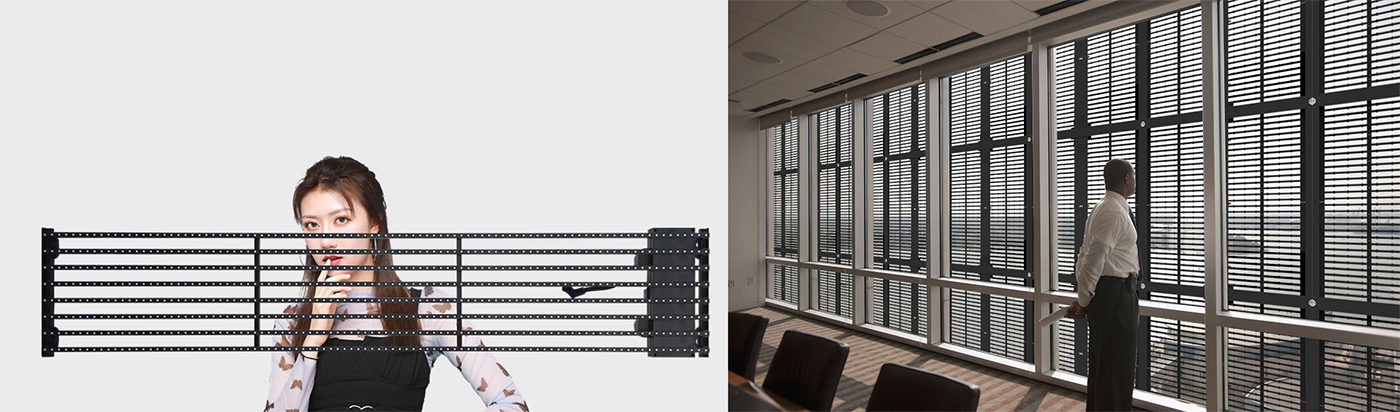

3. Highly Ventilated and Transparent

The highest transparency rate is 70%, with various design, ventilated but opaque , and ventilated also transparent.

4. Saving Power ,Save Money

Using air convection heat dissipation, no need any cooling device, Energy saving and environment protection, save money without any worry.

5. Creative Modelling

The arbitrary sculpture makes the landscape on a new look

Specification

Mode	EV12	EV15	EV20
LEDs	1R1G1B	1R1G1B	1R1G1B
LED type	DIP346	DIP346	DIP346
Pixel pitch	12.5mm	15.625mm	20mm
Unit size	W500×H1000mm	W500×H1000mm	W520×H1000mm
Unit strip qty	10 pcs	16 pcs	13 pcs
Unit resolution	40×80 dots	32×64 dots	26×50 dots
Resolution	6400dots/㎡	4096dots/㎡	2500dots/㎡
Unit direction	Vertical	Vertical Horizontal	Vertical Horizontal
Transparency rate	20%	30%	36%
Brightness	≥4500nit	≥8,000-10,000nit	≥7500nit
Weight	22KG/㎡	21KG/㎡	19KG/㎡
Max consumption	480W/㎡	400W/㎡	375W/㎡
Adv consumption	160W/㎡	130W/㎡	125W/㎡
Viewing angle	H100°/V60°	H100°/V60°	H100°/V60°
Protection level	IP67	IP67	IP67
Tube structure	1 row, 4 columns.	1 row, 2 columns	1 row, 2 columns
Tube width	47mm	24mm	28mm

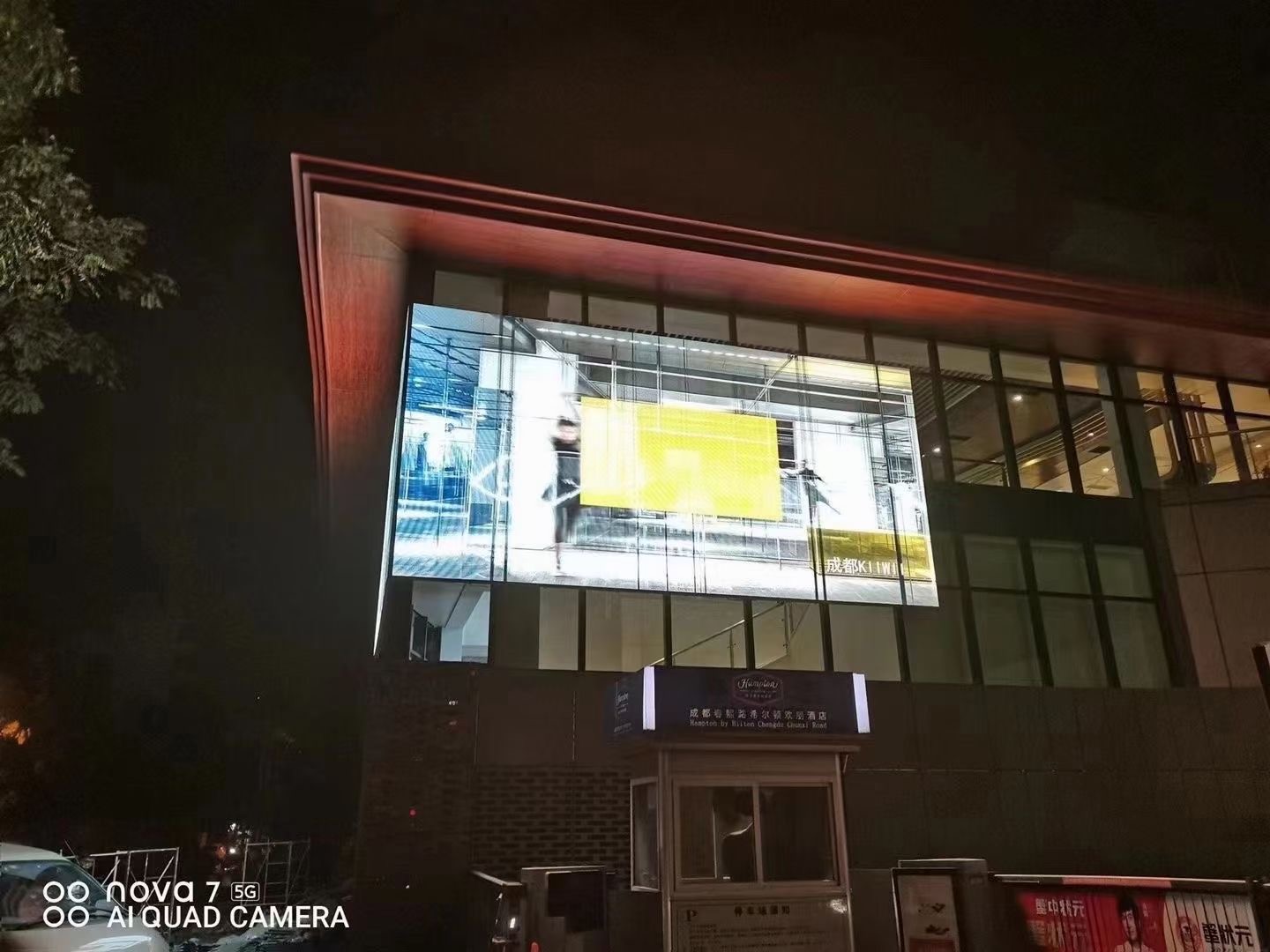

Application

FAQ

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month. 8 modernized dust-free and static-free production lines, 6 new YAMAHA and PANASONIC high speed SMT machines, 2 large leadless reflow oven,250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock,10-15 days for the new production led finished screen according to the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.But you are willing to pay extra money for after sales and adopt industry top quality material, we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
