IP43 Waterproof Outdoor Transparent Led Screen Led Mesh Video Wall High Brightness P3.9-7.8

Advantages:

1. High transparency and wide viewing angle H140° V140°: To meet see-through

video display requirements in multiple occasions.

2. Super lightweight and thin: Approx. 6.5KG/㎡ and thinnest part is only 1.6mm,

optimal packed to save shipping cost.

3. Easy Installation: high-precise aluminum cabinet, plug-in led lamp board, fast-lock

seamless splicing, secure and reliable.

4. Maintenance convenient: Modular design, replace only defective lamp modules,

fast and cheap.

5. Arbitrary customization: can be customized into square, triangle, circle,

cylinder (can be curved into arc) and other irregular shapes.

6. Quick heat dissipation and energy saving: 30%~50% lower in power consumption than

traditional led displays.

Module design ,easy installation

According to the criteria of the optimal pixel of the project, you can use the standard modules

to put a corresponding large screen together.stacking type and hang type are feasible.

Stable performance Longlife time

The precise aluminum profile structure ensures the perfect f latness of the module.

Operating life of LED lamps are 100,000 hours (lit to completely extinguished).

The transparent led can do inner and outer curve, which is 5 10 15 degree to

meet special shape sreen

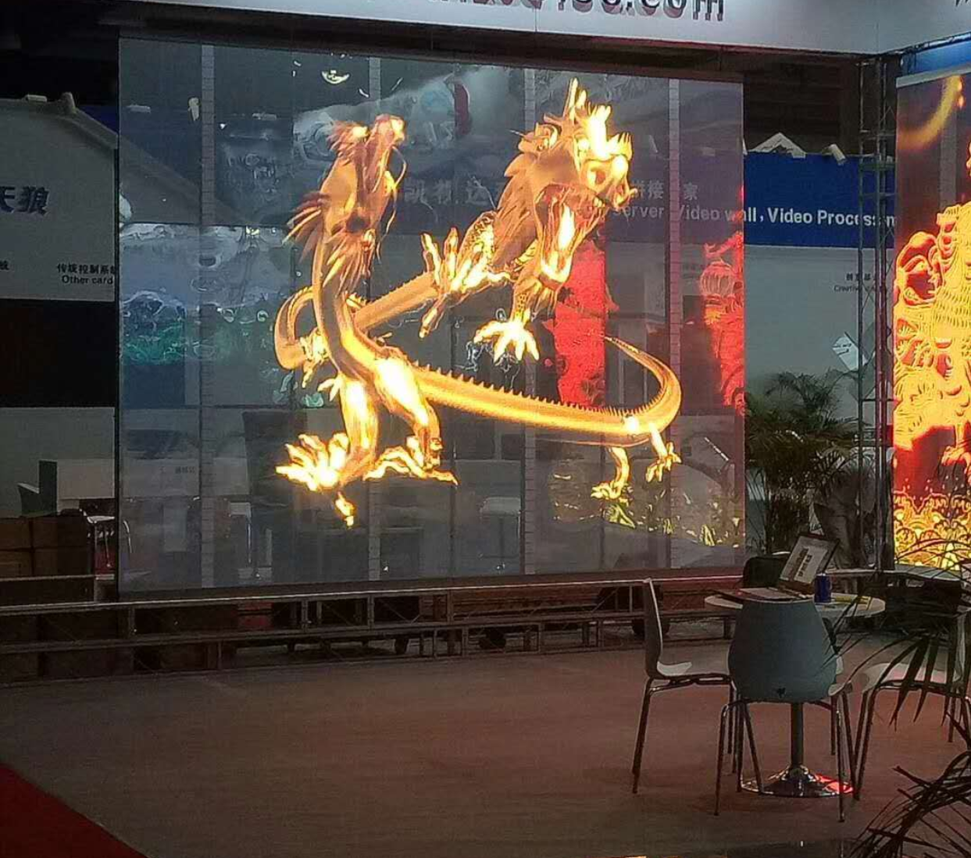

High transparency

The transparent LED screen has about 60% transparency outdoors, and it is almost

imperceptible from 5 meters away. The high resolution and transparency of the LED

transparent screen provide artists and designers with more space for creation.

Specifications
Mode	LZ 3.9-8.9	LZ 8.9-8.9	LZ 10.4-10.4
LED	1R1G1B	1R1G1B	1R1G1B
LED type	SMD1921	SMD1921	SMD2727
Pixel pitch	W3.91mm*H8.9mm	W8.9mm*H8.9mm	W10.4mm*H10.4mm
Unit size	W1000mm*H500mm
Unit resolution	252*56dots	112*56 dots	96*48 dots
Resolution	28672dots/㎡	12544dots/㎡	9216dots/㎡
Transparency rate	50%	55%	60%
Brightness	5000CD/㎡	5000CD/㎡	5000CD/㎡
Cabinet Weight	7.5KG	7.5KG	7.5KG
Max consumption	800W/㎡
Adv consumption	260W/㎡
Refresh rate	≥3840Hz	≥3840Hz	≥1920Hz
Working temperature	﹣10℃~51℃	﹣10℃~50℃	﹣10℃~50℃
Life time		≥100,000 hours
Input voltage	AC110~240V

FAQ:

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
