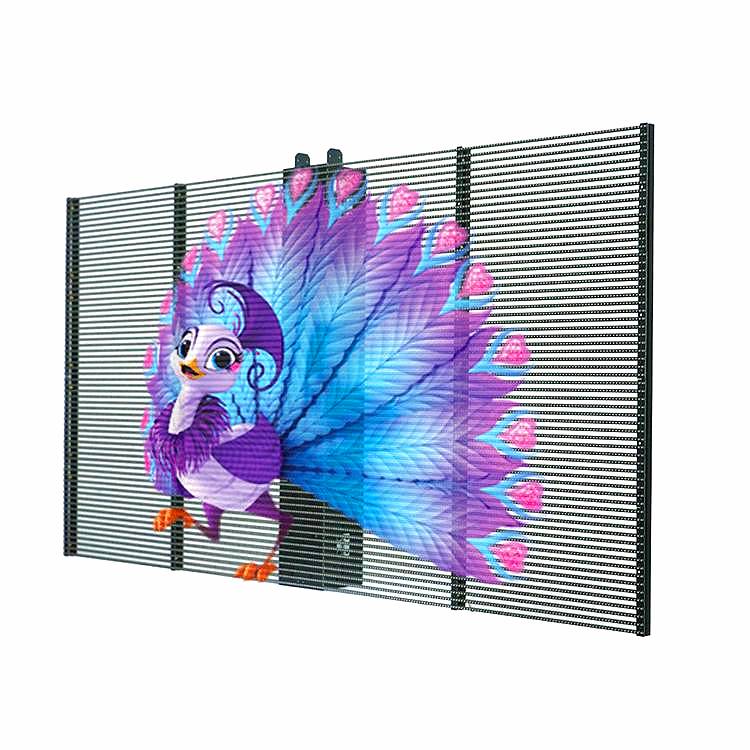

SDK Indoor Transparent See Through Led Screen Curtain P3.91-P7.81

Product Categories

Shenzhen Longvision Technology Co., Ltd.

Contact Now

SDK Indoor Transparent See Through Led Screen Curtain P3.91-P7.81

Ask Lasest Price
Model Number :	TS series
Brand Name :	Longvision
Supply Ability :	3000 Square Meter/Square Meters per Month
Price :	$350.00 - $685/Set
Certification :	CE FCC ROHS UL CCC
Payment Terms :	D/P, T/T, Western Union, MoneyGram
Delivery Time :	5-8 Days

Add to Cart

Product Details
Company Profile

SDK Indoor Transparent See Through Led Screen Curtain P3.91-P7.81

SDK Indoor Transparent See Through Led Screen Curtain P3.91-P7.81

Advantages

1. There are several standard sizes of 1000x1000mm, 1000x500mm, 500x500mm

to fit projects of different sizes

2. Transparent screen: front lighting transparent led screen adopts modular design, with high transparency, energy saving and environmental protection;

3. Can be taken Installation methods such as lifting and standing.Suitable for building facades, suitable for installation in front of glass curtain walls.

4. High transparency; the transparency is 60%～80%, the transparency is high, and it has little effect on the lighting of the building;

5. Good heat dissipation performance and light weight;

SDK Indoor Transparent See Through Led Screen Curtain P3.91-P7.81

* Convenient installation High compatibility

Modular design quick maintenance

* Thin and transparent, simple appearance,
Perfect integration with the site environment

*Ventilated light

*Free air conditioning heat saving energy

*Environmental protection- it uses only a third of the power of a conventional Led screen

TS series outdoor has the function of high waterproof, moisture-proof and dustproof, can be used in extremely harsh environment, truly achieve IP6X protection level

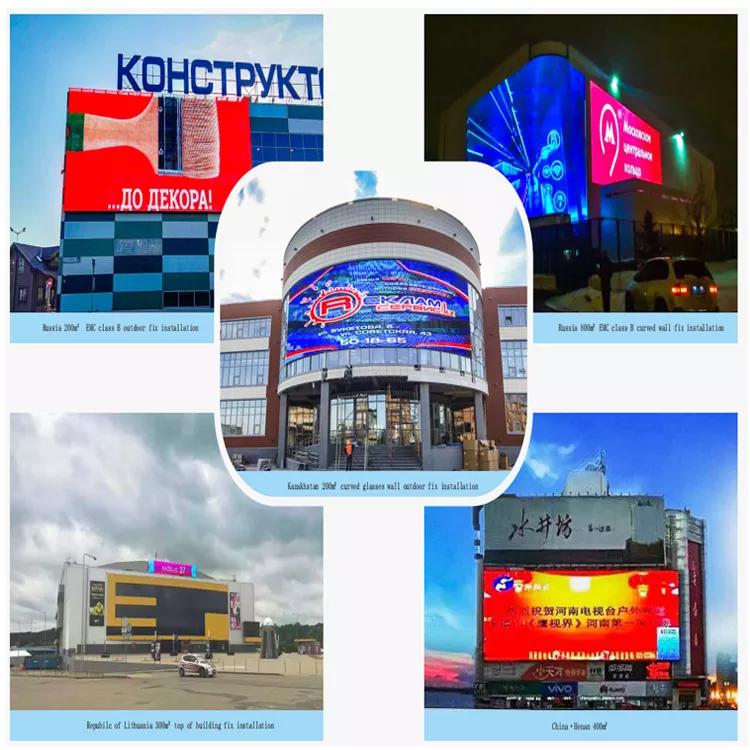

Applications:

Shopping Mall Transparent Indoor Outdoor Window Glass Led Display
Transparent LED display is good for decoration, creative design and advertising usage, it works as same as normal LED screen, most suitable for indoor glass building wall. Its creative 3D animations will bring impressive and clear visual experience, and people see through the glass without blocking sight.

Specifications
Mode	TS2.84	TS3.91	TS7.81
LEDs	1R1G1B	1R1G1B	1R1G1B
LED type	SMD1415	SMD1921	SMD1921
Pixel pitch	*W2.84mmH6.25mm**	*W3.91mmH7.81mm**	*W7.81mmH7.81mm**
Unit size	*W1000mmH500mmD50mm*
Unit resolution	*35280dots**	*25664 dots**	*12864 dots**
Resolution	56320dots/㎡	32768dots/㎡	16384dots/㎡
Transparency rate	60%	70%	60%
Brightness	3000CD/㎡	800/1500/4000/5000CD/㎡	4000CD/㎡
Cabinet Weight	5KG	5KG	6KG
Max consumption	800W/㎡
Adv consumption	240W/㎡
Refresh rate	≥3851Hz	≥3840Hz	≥1920Hz
Working temperature	﹣10℃~51℃	﹣10℃~40℃	﹣10℃~40℃
Life time		≥100,000 hours
Input voltage	AC170~240V
Mode	TS10.42	TS15.625	TS20
LEDs	1R1G1B	1R1G1B	1R1G1B
LED type	SMD1921	SMD3535	SMD3535
Pixel pitch	*W10.42mmH10.42 mm**	*W15.625mmH15.625 mm**	*W10mmH20 mm**
Unit size	*W1000mmH500mmD50mm*
Unit resolution	*9648dots**	*6432dots**	*4824dots**
Resolution	9216dots/㎡	4096dots/㎡	2304dots/㎡
Transparency rate	65%	75%	85%
Brightness	4000CD/㎡	4000CD/㎡	4000CD/㎡
Cabinet Weight	6KG	6KG	6KG
Max consumption	700W/㎡	600W/㎡	500W/㎡
Adv consumption	200W/㎡	180W/㎡	150W/㎡
Refresh rate	≥3851Hz	≥3840Hz	≥1920Hz
Working temperature	﹣10℃~51℃	﹣10℃~40℃	﹣10℃~40℃
Life time		≥100,000 hours
Input voltage	AC170~240V

FAQ :

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
