ODM 2K 4K 8K HD Fine Small Fine Pitch Led Display Video P1.2 P1.5
P1.8
Advantage:
1, 600mm x 337.5mm x 28mm Golden ratio 16:9 & Ultra-thin Cabinet;
2, 20000:1 High Contrast,enhancing the picture details, and
restoring the natural color;
3, 8K,4K,2K Ultra High Definition LED Display;
4, 22bit High GrayScale: Using HDR Technology, Videos More
Colorful,More Exquisite,More Real;
5, 50% Energy Saving,High Consistency,and Good Heat
Dissipation:Inversion Chip Technology.
6, 2-5 Years Warranty.
Specification
| PARAMETERS | INDOOR FINE PIXEL PITCH |
| LTV 0.9375 | LTV l.25 | LTV 1.5625 | LTV l.875 |
| PHYSICAL PARAMETERS | PIXEL PITCH (MM) | 0.9375 | 1.25 | 1.563 | 1.875 |
| LED LAMPS | MINI LED | SM01010 | SMD1010/1212 | SMD1515 |
| PIXEL MATRIX PER PANEL | 640x360 | 480x270 | 384x216 | 320x180 |
| PIXEL DENSITY | 1,137,777 | 640.000 | 409,600 | 284,444 |
MODULE DIMENSIOINS LxW (MM) | 150 x 168.75 |
PANEL DIMENSIONS LxWxH (MM) | 600 x 337.5x33 |
| PANEL MATERIAL | ALUMINIUM DIE CASTING |
| PANEL WEIGHT (KG) | 4.5 |
| ELECTRONIC PARAMETERS | COLOR GRAYSCALE (BIT) | 16Bit |
| GRAY SCALE PER COLOR (LEVEL) | 281 trillion |
| REFRESH RATE (Hz) | 3840 Hz |
| DRIVING TYPE | 1/45 | 1/60 | 1/54 | 1/40 |
| FRAME FREQUENCY (Hz) | 50/60Hz |
SIGNAL TRANSMISSION DISTANCE (M) | CAT5: <100m; Multiple optical fiber < 500m; Single optical fiber<W2km |
| OPTICAL PARAMETERS | BRIGHTNESS (NIT) | 500-800 |
| CONTRAST RATIO | 10000:1 |
| OPTIMAL HORIZONTAL VIEWING ANGLED | 160° |
| OPTIMAL VERTICAL VIEWING ANGLEC) | 160° |
| ELECTRICAL PARAMETERS | AC INPUT VOLTAGE (V) | 11OV-24O V |
| MAXIMUM POWER CONSUMPTION (W/M,) | 620 | 620 | 600 | 600 |
| AVERAGE POWER CONSUMPTION (W/M,) | 280 | 280 | 260 | 260 |
| CIRCUMSTANCE PARAMETERS | OPERATING TEMPERATURE fC) |
•20C° --- +60 C° |
| OPERATING HUMIDITY | 10%-90% |
| IP RATING (FRONT/REAR) | 30/30 |
| LIFETIME TYPICAL VALUE (HRS) | 100,000 |
| INSTALLATION TYPE | CABINET INSTALLATION TYPE | WALL MOUNTED HANGING STACKING |
Ultra-light, Ultra-thin
1. Magnesium alloy die casting, single cabinet weight is only
4.5KG, strong and
light weight Led panel.
2. The panel is 16:9 (wide/high) golden ratio, easy to achieve
ultra-high-definition
resolutions such as 2K, 4K, 8K, 16K, and pixel-to-pixel true
display effect.
Best Frame design, excellent video visual performance
Modules with maginets make it easier to front maintainance
Modular design
The module, HUB, receiving card, and power supply can be accessed
by front service easily.
We can get the work done 5 times faster than traditional back
service products, which greatly
improving our working efficiency.

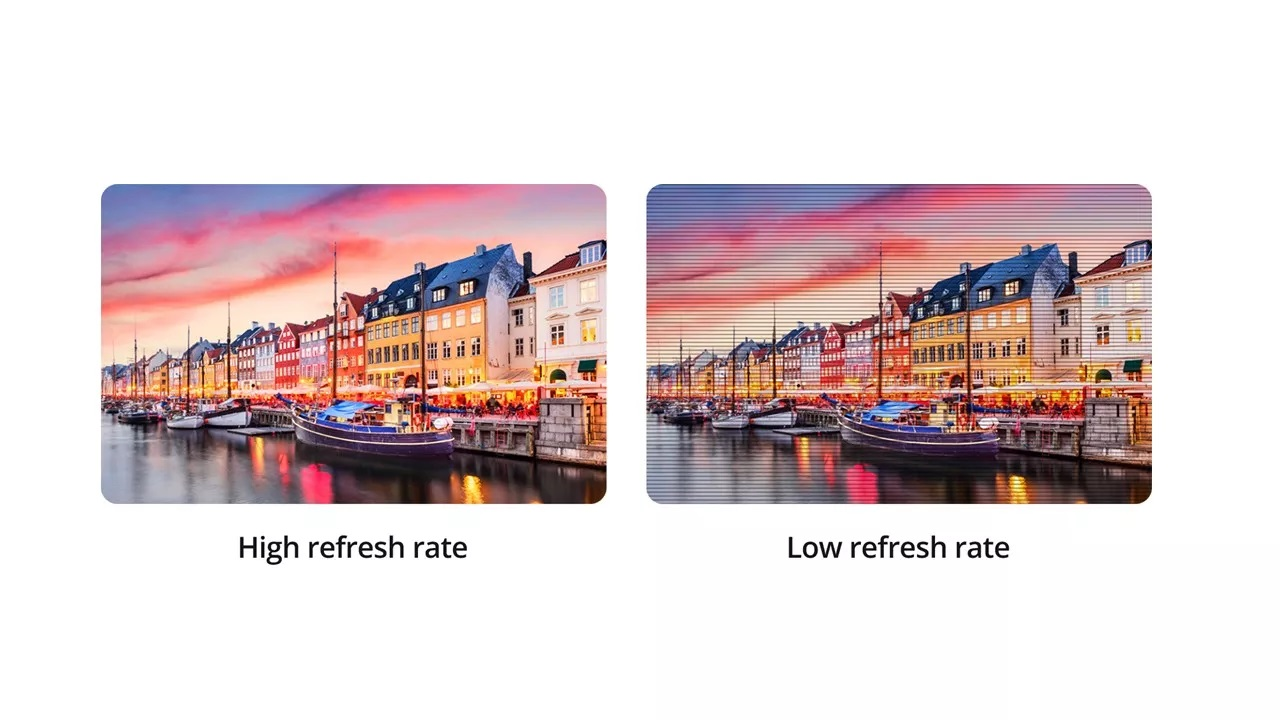

High refresh rate (7680hz) High grey scale(16bit) which can be the
best video visual
performance and no scan line under the camara

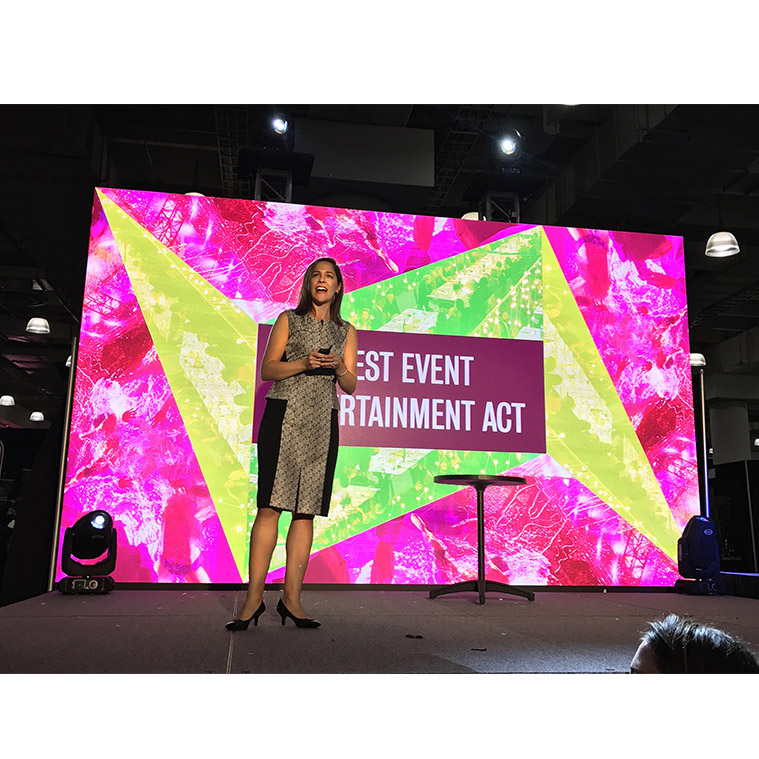

Applications:
Small Pixel LED display are widely used in different applications,
the main application fields
are command and dispatch center, security monitoring, video
conference, exhibition, radio and
television studio, meteorological information center, production
safety monitoring, environment
monitoring, fire protection, maritime flood control, energy,
electric power, finance, securities
market,shopping malls, hotels, airports, subway and so on
FAQ
Q1. What about LED Display MOQ?
A1. Any quantity is acceptable for your order. And the price is
negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to
the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt
industry top quality material,we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free,
spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
