HDR 16:9 Fine Pitch Led Display 4k 8k Mini Pantalla Video Wall
Screens
Advantage:
1, Ultra thin cabinet : 600mm*337.5mm*80mm , 6 KG / pc , fashion
configuration design
16 : 9 Perfect ratio , perfectly matching the mainstream video
source on the market.
2, High contrast , high refresh rate, meet the high speed image
display,support 3D display
3, High quality die-casting aluminum frame, enhance the heat
dissipation, extend screen working life
Seamless splice and good flatness: no gaps between the
cabinet,ensure the good performance
4, Adjustable brightness, support 16 bit high gray scale,perfectly
show image details
5, Special frame structure make excellent heat dissipation, quiet
operation without fans
6, Large viewing angle and smooth displaying , excellent visual
effect from every angle
7, Double data back up , reliable and highly stable system
8, Easy front maintenance for all components, save much
installation space
Ultra-light, Ultra-thin
LED’s floating connector on HUB provides±0.5mm moving flexibility
for the module in
XYZ direction.
Unique buckles are used for ensure the panel’s alignment. We have
Flat Buckle and Curve
Buckle as options
Best Frame design, Module design, wireless connection
Modules with magnets make it easier to front maintainance
Front maintenance
The module, HUB, receiving card, and power supply can be accessed
by front service easily.
We can get the work done 5 times faster than traditional back
service products, which greatly
improving our working efficiency.
HDR High dynamic digital image technology
High refresh rate (7680hz) High grey scale(16bit) which can be the
best video visual
performance and no scan line under the camara
Specification
| ARAMETERS | INDOOR FINE PIXEL PITCH |
| LG 0.9375 | LGV l.25 | LG 1.5625 | LG l.875 |
| PHYSICAL PARAMETERS | PIXEL PITCH (MM) | 0.9375 | 1.25 | 1.563 | 1.875 |
| LED LAMPS | MINI LED | SM01010 | SMD1010/1212 | SMD1515 |
| PIXEL MATRIX PER PANEL | 640x360 | 480x270 | 384x216 | 320x180 |
| PIXEL DENSITY | 1,137,777 | 640.000 | 409,600 | 284,444 |
MODULE DIMENSIOINS LxW (MM) | 150 x 168.75 |
PANEL DIMENSIONS LxWxH (MM) | 600 x 337.5x33 |
| PANEL MATERIAL | ALUMINIUM DIE CASTING |
| PANEL WEIGHT (KG) | 4.5 |
| ELECTRONIC PARAMETERS | COLOR GRAYSCALE (BIT) | 16Bit |
| GRAY SCALE PER COLOR (LEVEL) | 281 trillion |
| REFRESH RATE (Hz) | 3840 Hz |
| DRIVING TYPE | 1/45 | 1/60 | 1/54 | 1/40 |
| FRAME FREQUENCY (Hz) | 50/60Hz |
SIGNAL TRANSMISSION DISTANCE (M) | CAT5: <100m; Multiple optical fiber < 500m; Single optical fiber<W2km |
| OPTICAL PARAMETERS | BRIGHTNESS (NIT) | 500-800 |
| CONTRAST RATIO | 10000:1 |
| OPTIMAL HORIZONTAL VIEWING ANGLED | 160° |
| OPTIMAL VERTICAL VIEWING ANGLEC) | 160° |
| ELECTRICAL PARAMETERS | AC INPUT VOLTAGE (V) | 11OV-24O V |
| MAXIMUM POWER CONSUMPTION (W/M,) | 620 | 620 | 600 | 600 |
| AVERAGE POWER CONSUMPTION (W/M,) | 280 | 280 | 260 | 260 |
| CIRCUMSTANCE PARAMETERS | OPERATING TEMPERATURE fC) |
•20C° --- +60 C° |
| OPERATING HUMIDITY | 10%-90% |
| IP RATING (FRONT/REAR) | 30/30 |
| LIFETIME TYPICAL VALUE (HRS) | 100,000 |
| INSTALLATION TYPE | CABINET INSTALLATION TYPE | WALL MOUNTED HANGING STACKING |

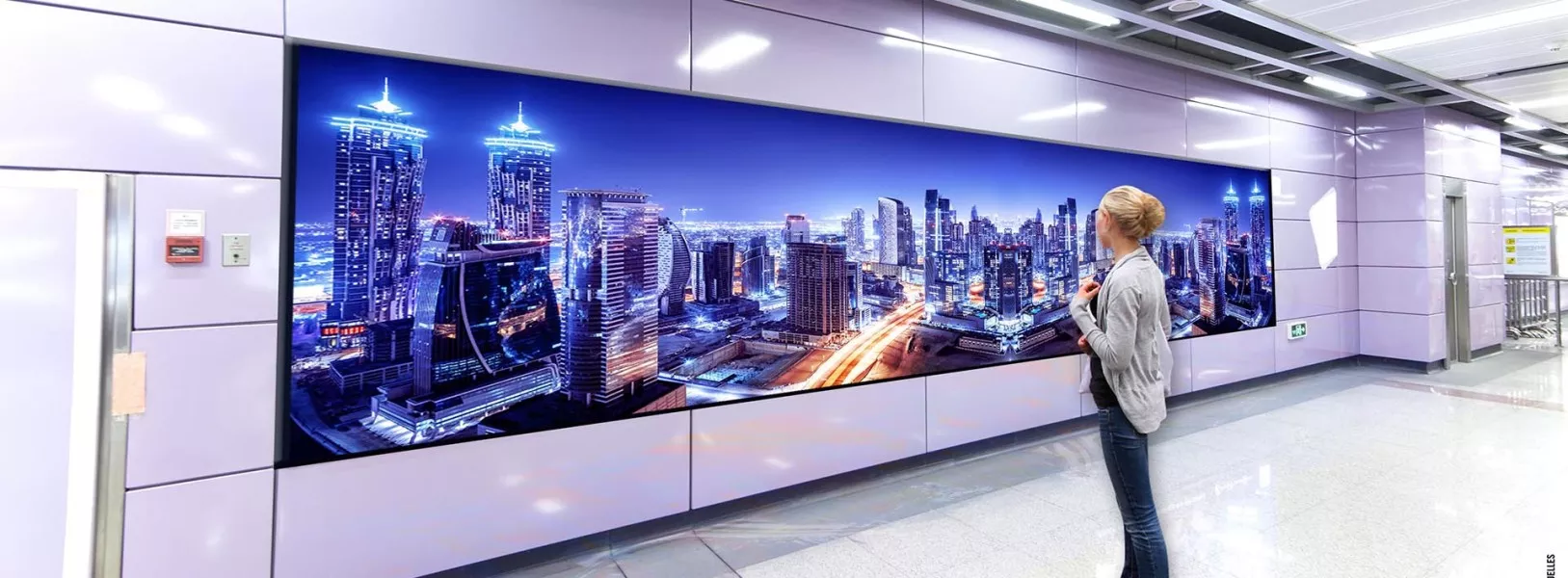

Applications:
Small Pixel LED display are widely used in different applications,
the main application fields
are command and dispatch center, security monitoring, video

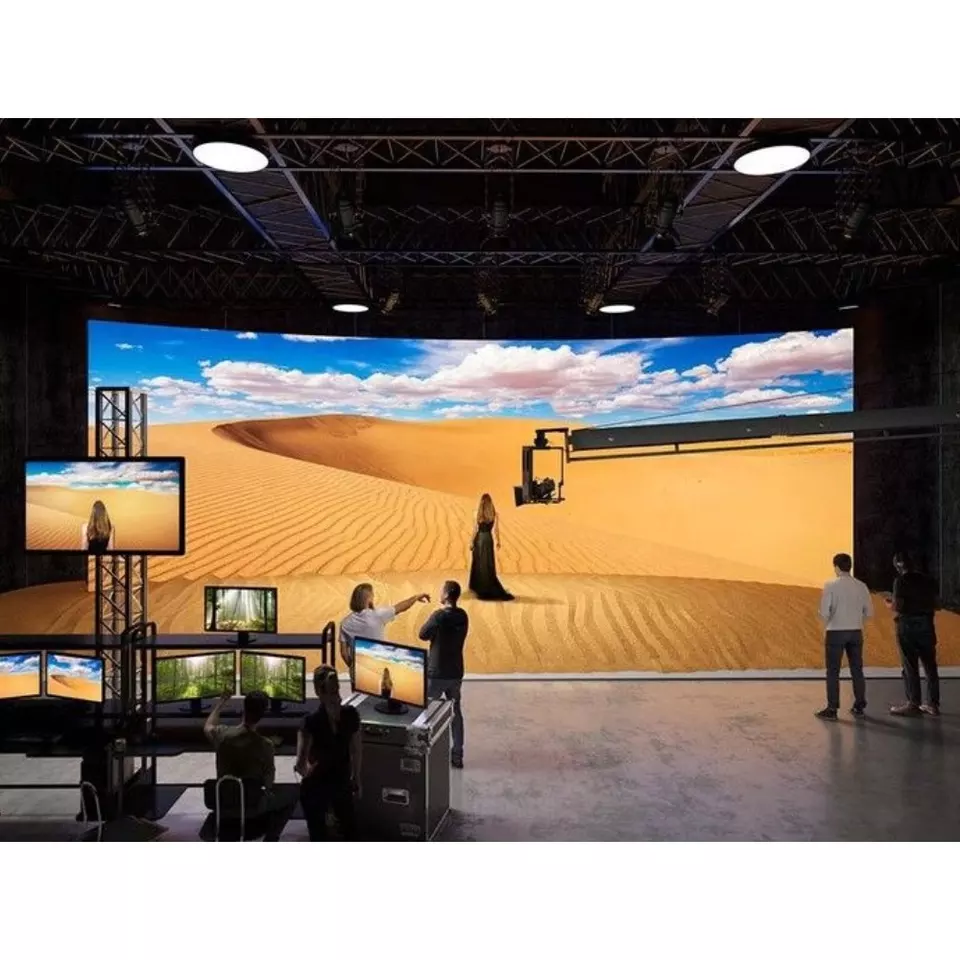

conference, exhibition, radio and
television studio, meteorological information center, production
safety monitoring, environment
monitoring, fire protection, maritime flood control, energy,
electric power, finance, securities market,
shopping malls, hotels, airports, subway and so on
FAQ:
Q1. What about LED Display MOQ?
A1. Any quantity is acceptable for your order. And the price is
negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to
the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt
industry top quality material,we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free,
spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
