Small Pixel Church Led Screen Transparent Led Wall P1.2/1.5/1.8

Advantages

1, Excellent protection Anti-mite, anti-collision, anti-shock, moisture-proof, waterproof, anti-static, can be used with confidence in any environment. For daily cleaning and maintenance, the surface stain can be directly wiped off with a damp cloth. 2, Smaller dot pitch At present, the point spacing can reach 0.5mm, and there is more downside space in the future. 3, Ultra high contrast The most "black" display COB the 10,000:1 ultra-high contrast ratio gives you a beautiful high-definition image. 4, Excellent visual experience With a large viewing angle of 170°, it is a central viewing angle from any angle, ensuring consistent color and brightness at any angle. 5, 16:9 Design 16:9 cabinet size design, point-to-point matching 2K/4K/8K standard resolution; front maintenance design, wall-mountable installation, easy installation and maintenance; automatic brightness adjustment technology, ensuring viewers in any environment to watch comfortably; support power and signal redundancy backup to meet the needs of high security applications.

Specifications
Model	VA 1.2	VA 1.5	VA 1.6	VA 1.8	VA 1.8
Pixel Pitch	1.25	1.53	1.667	1.83	1.86
Application	UHD Display
Pixel Density	640000 dots/m²	427186 dots/m²	360000 dots/m²	298605 dots/m²	289050 dots/m²
LED Type	SMD1010	SMD1212	SMD1212	SMD1515	SMD1515
Brightness	＞700cd/m²	＞700cd/m²	＞700cd/m²	＞700cd/m²	＞700cd/m²
Module Size	320*160 mm	320*160 mm	320*160 mm	320*160 mm	320*160 mm
Module Resolution	256*128	208*104	192*96	174*87	172*86
Cabinet Size	640*480 mm	640*480 mm	640*480 mm	640*480 mm	640*480 mm
Cabinet Resolution	512*384	416*312	384*288	348*261	344*258
Cabinet Material	Die-casting Aluminum
Cabinet Weight	7kg/cbn
Viewing Angle	H:160° / V:140°
Refresh Rate	≥3840Hz
Viewing Distance	1.2m~15m	1.5m~20m	1.6m~25m	1.8m~30m	1.8m~30m
Gray Scale	14~16bit
Max Power Consumption	700W/m²	700W/m²	800W/m²	800W/m²	800W/m²
Avg. Power Consumption	350W/m²	350W/m²	400W/m²	400W/m²	400W/m²
Power Input	AC 100～240V
Frequency	50～60Hz
Maintenance	100% Front Service
Operating Temperature	-20℃～50℃
Operating Humidity	10%～95%
Lifetime	100,000H

Applications:

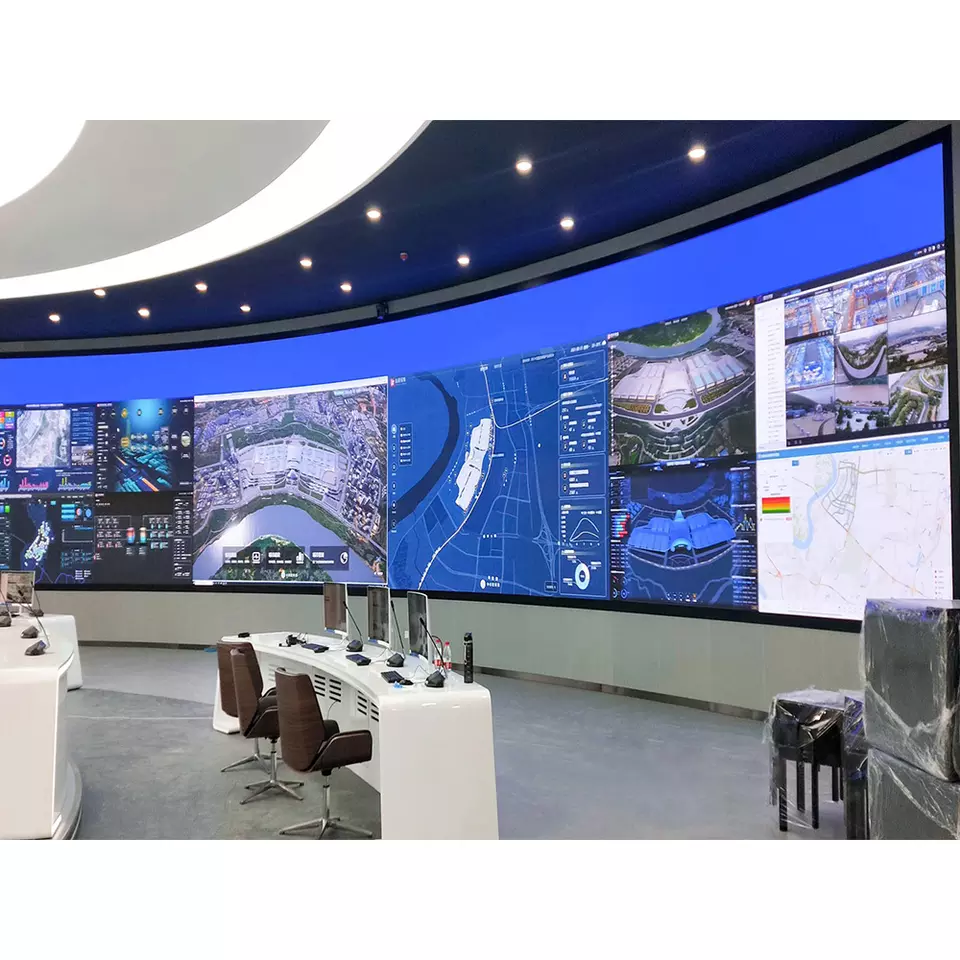

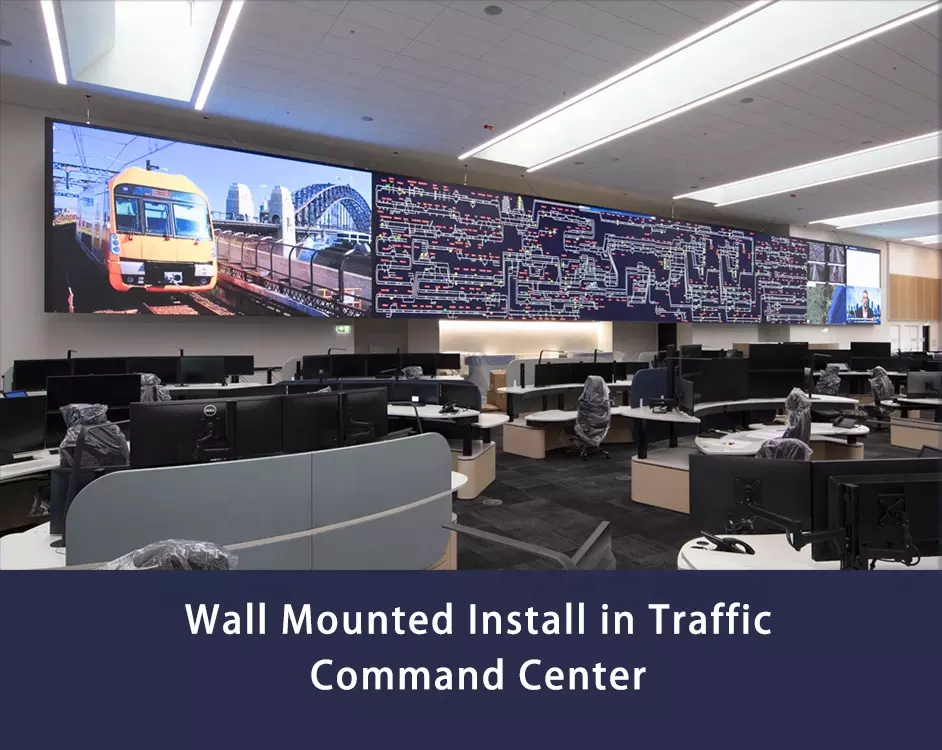

Small Pixel LED display are widely used in different applications, the main application fields

are command and dispatch center, security monitoring, video conference, exhibition, radio and

television studio, meteorological information center, production safety monitoring, environment

monitoring, fire protection, maritime flood control, energy, electric power, finance, securities market,

shopping malls, hotels, airports, subway and so on

FAQ :

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc

Shenzhen Longvision Technology Co., Ltd. (Longvision) is a professional LED display solution servicer. It is a high-tech enterprise focusing on providing customers with advertising display, data visualization, stage display equipment and overall technical solutions for commercial display. The company's core business includes small-pitch led screens, indoor and outdoor fixed led screens, rental led screens, creative led screens, window led screens, and stadium led screens. Its products are sold to more than 130 countries and regions, and are widely praised.

Longvision has a complete design, R & D, manufacturing, sales and installation service system, and an independent production base with modern workshops and automated production equipment. In addition, the company also recruited a large number of high-quality professional design, research and development, production and sales personnel, and created an excellent and stable service team. Specially for upholding down-to-earth and honest behavior, insisting on honesty, innovation in technology and processes, and treating each order as a quality project for production and supervision. In just a few years, it has been specially obtained It has been highly recognized by the country and industry.

"To Make the biggest Contribution to Staff’s Better Life and Social Progress", this is a special corporate vision, and it is also the goal to strive for. We would like to be together with you to "show a better world"!
