    Longvision P1.2/1.5/1.8 LED Video Wall Display Panels System Full Color HD

    Ask Lasest Price
    Brand Name : Longvision
    Model Number : SP series
    Certification : CE FCC UL ROHS
    Price : $550.00-$880.00/Square Meters
    Payment Terms : D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000 Square Meter/Square Meters per Month
    Delivery Time : 4-8 Days
    • Product Details
    • Company Profile

    Longvision P1.2/1.5/1.8 LED Video Wall Display Panels System Full Color HD

    Longvision P1.2/1.5/1.8 LED Video Wall Display Panels System Full Color HD
    The SP Series is the third generation of small-pitch LED display products from Longvision,
    The standard size cabinet supports front/rear maintenance, back wireless design and seam
    adjustment.it is suitable for monitoring, conference room and command center. , company show
    and other occasions.
    The matching pitch is: P1.25/P1.5625/P1.667/P1.875,etc. It has realistic picture, high refresh rate,
    smaller area and larger resolution display.
    Advantages
    1. 100% front maintenance, the led module ,power supply, receiving cards all can be
    taken out from front side, easy and fast to do maintenance.
    2. Module unit support hot-plug, Saving 70% installation cost
    3. High refresh rate: 3840-7680Hz, Low light, high grey scale, 26bit.
    4, Large viewing angle and smooth displaying , excellent visual effect from every angle
    5, Double data back up , reliable and highly stable system

    Two size of VL series, and Sister Units Of 480*960 & 480*480 Are Combinable

    1) Effectively ensure the flexibility of the size adjustment when engineering installation
    2) Support vertical 1/2 unit splicing and unit cutting
    3) Minimize the costs of engineering installation
    Longvision P1.2/1.5/1.8 LED Video Wall Display Panels System Full Color HD
    Product Size
    1
    W: 960mm * H:480mm
    2
    W: 480mm * H:480mm
    Pixel Pitch
    1
    P2.5 mm/ P1.875 mm
    2
    P1.579 mm/P1.29 mm


    100% Front Maintenance

    1, 100% front maintenance is a very necessary engineering use for small pitch, which can effectively
    ensure the installation thickness, the thinnest can be up to 60mm.
    2, Better protection against dust damage to electronic components and PCB board.
    3, More convenient disassembly and installation, saving time and effort.
    Longvision P1.2/1.5/1.8 LED Video Wall Display Panels System Full Color HD
    Longvision P1.2/1.5/1.8 LED Video Wall Display Panels System Full Color HD

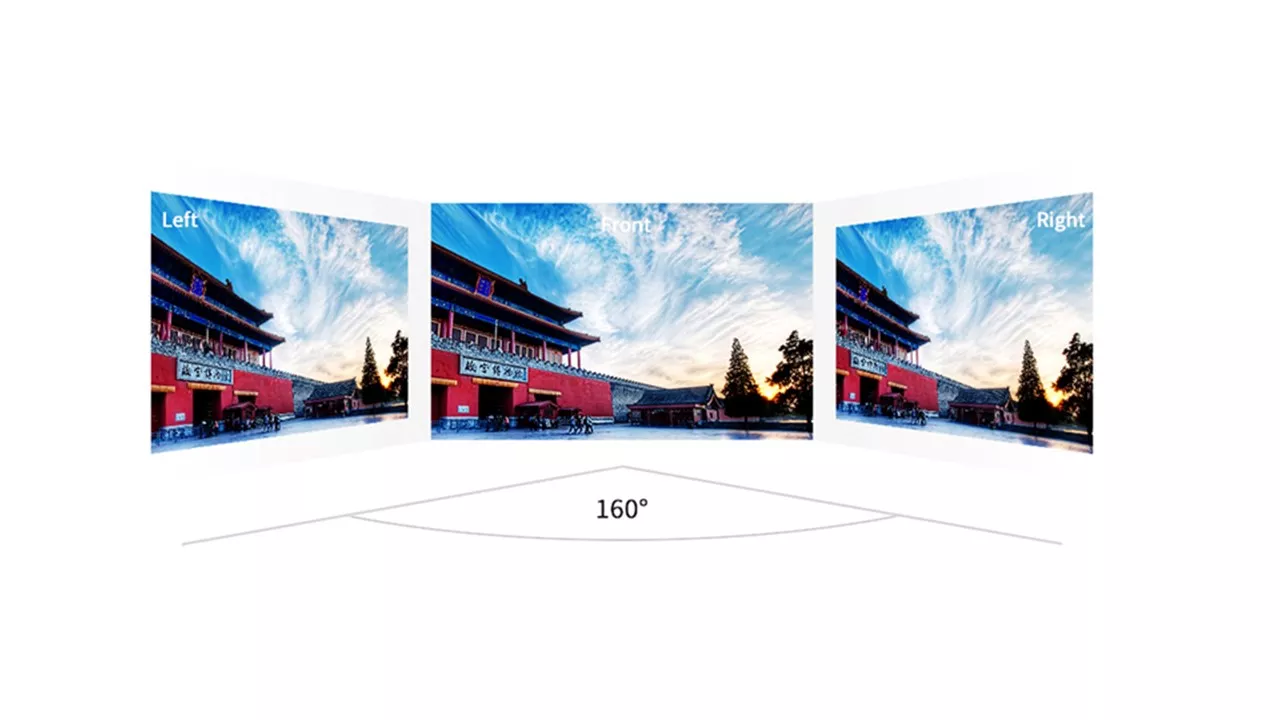

    Large viewing angle and smooth displaying , excellent visual effect from every angle

    Product Parameters


    Model
    SP4912
    SP4915
    SP4918
    SP4925
    Pixel Pitch(mm)
    1.29mm
    1.579mm
    1.875mm
    2.5mm
    Application
    Indoor UHD
    Indoor UHD
    Indoor UHD
    Indoor UHD
    Pixel Density (dots/m²)
    600586
    401084
    284444
    160000
    LED Type
    SMD1010
    SMD1010
    SMD1515
    SMD2121
    SMD1212
    Brightness (cd/m²)
    200~800nit adjustable
    Module Size (mm*mm)
    240mm*240mm
    Module Resolution (dots*dots)
    186*186
    152*152
    128*128
    96*96
    Cabinet Size (W*H*D)
    480*480*60mm/960*480*60mm
    Cabinet Resolution (dots*dots)
    372*372/744*372
    304*304/608*304
    256*256/512*256
    192*192/384*192
    Cabinet Material
    Die-casting Aluminum
    Cabinet Weight (±0.25kg)
    26kg/m²
    Viewing Angle (Deg)
    H:160°/V:140°
    Refresh Rate (Hz)
    >1920Hz
    Viewing Distance (m)
    >1m
    >1.5m
    >2m
    >2.5m
    Gray Scale (bit)
    14bit
    Max./Avg. Power Consumption(m²)
    600W/100W~300W
    AC Power Input(V)
    AC 200~240V
    AC Power Frequency (Hz)
    50~60Hz
    Level of Protection
    Front: IP41/Rear: IP20
    Maintenance
    100% Front Service

    Cases Shows

    Widely used in Cinema, TV Station, Shopping malls, retail shops, buildings, Airport..etc.

    Longvision P1.2/1.5/1.8 LED Video Wall Display Panels System Full Color HD

    FAQ :


    Q1. What about LED Display MOQ?

    A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

    Q2. What about Longvision capacity?
    A2.3000sqm per month.
    8 modernized dust-free and static-free production lines,
    6 new YAMAHA and PANASONIC high speed SMT machines,
    2 large leadless reflow oven
    250 skilled workers.

    Q3. When will you make the delivery?
    A3. 3-5 working days when we have LED module stock
    10-15 days for the new production led finished screen according to the size and quantities of your order.

    Q4. How about the warranty time?
    A4. Our standard is 2 years.
    But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

    Q5. Do you provide any free spare parts in each order?
    A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
    lamp, IC, mask, power supply, receiving card, etc.
    Low voltage output design 4.2V low
    voltage output design ensures low consumptiondisplay and reduce operating temperature rise
