Ultra Thin Commercial Fine Pitch Led Display 8x12 Led Wall P1.5
P1.8 P1.9
Advantage:
* Extremely light and thin, 40mm thickness, 21.7KG/㎡ weight;
* 100% Front and Rear maintenance;
* Mounted on the wall directly, the distance between the screen and
the wall is only 40mm,
maximum saving your space;
* Wireless connection, easy maintenance and installation;
* Module golden ratio 8:9, which can easily splice 2K,4K and 8K LED
screen
* Diversified size available: 1000x250mm,750x250mm, 500*250mm
Ultra-light, Ultra-thin, can do curve screen
1. Magnesium alloy die casting, single cabinet weight is only 6KG,
40mm thickness
2. 0~45° Inner or Outer Arc Splicing, 90° Splicing, to create a
special shape led screen
for multiple applications
Front maintenance, front installation,easily and fastly.
Front Maintenance- Led Module
Front Maintenance- Power Supply
Front Maintenance- Receiving card
To adjust reserved nut on the cabinet with the hexagon wrench, then
realize the cabinet's
front and rear fine-tuning.
To adjust reserved nut for conncecting the upper and down on the
cabinet by using the cross
screwdriver, then realize the cabinet's up and down fine-tuning
High refresh rate (7680hz) High grey scale(16bit) which can be the
best video visual
performance and no scan line under the camara
Specification
| Model | HP2.6 | HP2.9 | HP3.9 |
| Pixel Pitch (mm) | 2.67 | 2.94*2.96 | 3.94*3.92 |
| Application | Indoor Adv | Indoor Adv | Indoor Adv |
Pixel Density (dot/m²) | 139130 | 115600 | 64748 |
| LED Configuration | SMD2121 | SMD2121 | SMD2121 |
| Brightness (CD/m²) | 1000nit | 1000nit | 1000nit |
Module Size (mm*mm) | 250*250mm | 250*250mm | 250*250mm |
| Module Resolution | 112*126 | 102*114 | 76*86 |
Cabinet Size (W*D*D) | 500*250*40mm 750*250*40mm 1000*250*40mm | 500*250*40mm 750*250*40mm 1000*250*40mm | 500*250*40mm 750*250*40mm 1000*250*40mm |
Cabinet Resolution (dot*dot) | 224*126 336*126 448*126 | 204*114 306*114 408*114 | 152*86 228*86 304*86 |
| Material | Die-casting Aluminum |
| Cabinet Weight | 9kg/cbn |
| Viewing Angle | H: 160°/V: 110° | H: 160°/V: 110° | H: 160°/V: 110° |
| Refresh Rate (Hz) | 1920Hz～3840Hz | 1920Hz～3840Hz | 1920Hz～3840Hz |
Best Viewing Distance | >2.6m | >3m | >4m |
| Gray Scale (bit) | 14~16bit | 14~16bit | 14~16bit |
Max/Avg. Power Consumption (W/pcs) | 126W/38W | 126W/38W | 126W/38W |
| AC Input Voltage (V) | AC 100～240V | AC 100～240V | AC 100～240V |
| Waterproof Level | IP20 | IP20 | IP20 |
| Maintenance | 100% Front & Rear |

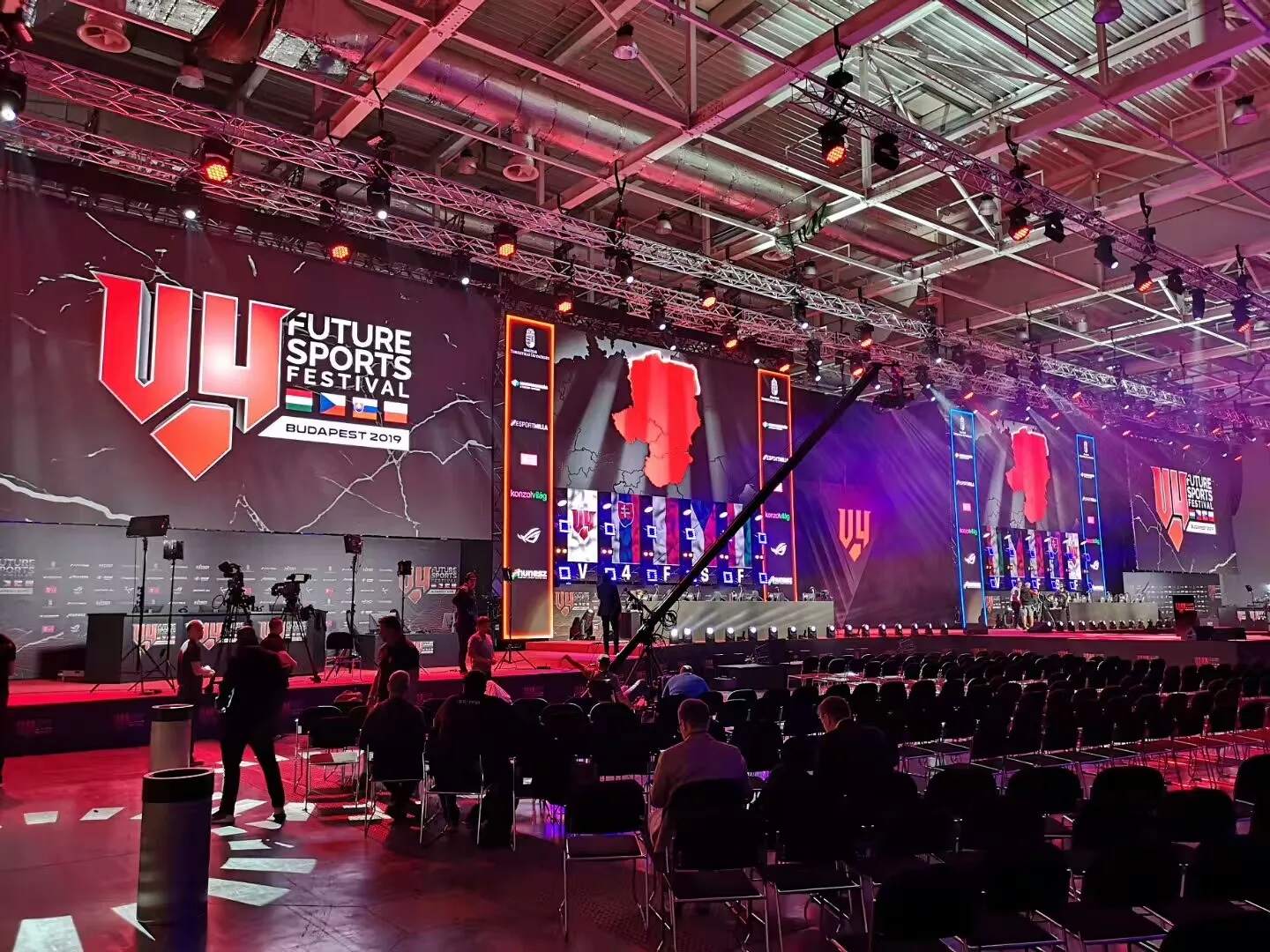

Applications:
Small Pixel LED display are widely used in different applications,
the main application fields
are command and dispatch center, security monitoring, video
conference, exhibition, radio and
television studio, meteorological information center, production
safety monitoring, environment
monitoring, fire protection, maritime flood control, energy,
electric power, finance, securities market,
shopping malls, hotels, airports, subway and so on
FAQ :
Q1. What about LED Display MOQ?
A1. Any quantity is acceptable for your order. And the price is
negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to
the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt
industry top quality material,we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free,
spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
