4K 8K HD Led Screen 8 X 12 P1.2 P1.5 P1.8 Full Color Led Video Wall Panels

Advantages

1. Adopt Die-casting aluminum materials ,ultra thin , light weight ,only use one hand can lift, easy to install. 2. Use quick lock to fixed each panel ,makes connection easy and seamless. 3. The product support 2K ,4K ,8K video and image . 4. High refresh rate 3840-7680Hz, clear effect, can be used for leasing projects and fixed installation projects. 5. 3 to 5 years warranty, best forever after sales service. Best display effect, refresh more high, special 16 bit high gray level, high refresh drive constant current IC, unique blanking circuit, protect LED, prevent surge leakage; Support system multiple redundant backup, module point by point chroma correction, power supply double backup.

Ultra wide viewing Angle, over 170 degrees of ultra wide viewing Angle, brightness, color at

any Angle to maintain the same, no dead Angle perfect visual experience

Each module adopts independent control card control, higher integration, stronger stability,cleaning

and maintenance is convenient,

Using ultra-high hardness epoxy package, earthquake resistance, pressure resistance, knock and

collision resistance

20000:1 High Contrast,enhancing the picture details, and restoring the natural color;

Best easy full front maintenance

within 2 seconds the module can be replaced by tools

Stabe and reliable , anti- collision

Specifications

Item		Parameter
Basic Parameters	Pixelpitch size	1.25mm
	Pixel configuration	1R1G1B
	Pixel density	640000/m2
	Module resolution	120(W)*135(H)
	Module size	150mm*168.75mm
	Cabinet size	600mm*337.5mm*28mm
	Cabinet weight	3.2kgs
Optical Parameters	Brightness and gray grade calibration for single pixel	Yes
	White balance brightness	≥600cd/㎡
	Color temperature	3200K—9300K(Adjustable)
	Horizontal viewing angle	≥170°
	Vertical viewing angle	≥170°
	Viewing distance	≥3meter
	Brightness uniformity	≥97%
	Contrast rate	≥3000:1
Process Performance	Signalprocessing bits	16bit*3
	Gray level	65536
	Control distance	Internet cable: 100m, fibre cable: 10KM
	Driving method	High gray level constant current driving IC
	Frame change rate	≥60HZ
	Refresh rate	≥3840HZ
	Control way	synchronous
	Brightness adjustment range	0to 100grades
Working Parameters	Continous working time	≥72hours
	Typical life time	50,000 hours
	Protection grade	IP20
	Working temperature range	-20 ℃~50 ℃
	Working humidity range	10 %- 80% RH no coagulation
	Storage temperature range	-20 ℃~60 ℃
Power	Working voltage	DC:4.2-5V
	Input power	AC:220×(1±10%)V, 50×(1±5%)Hz
	Max power consumption	680 w/㎡
	Average power consumption	270 w/㎡

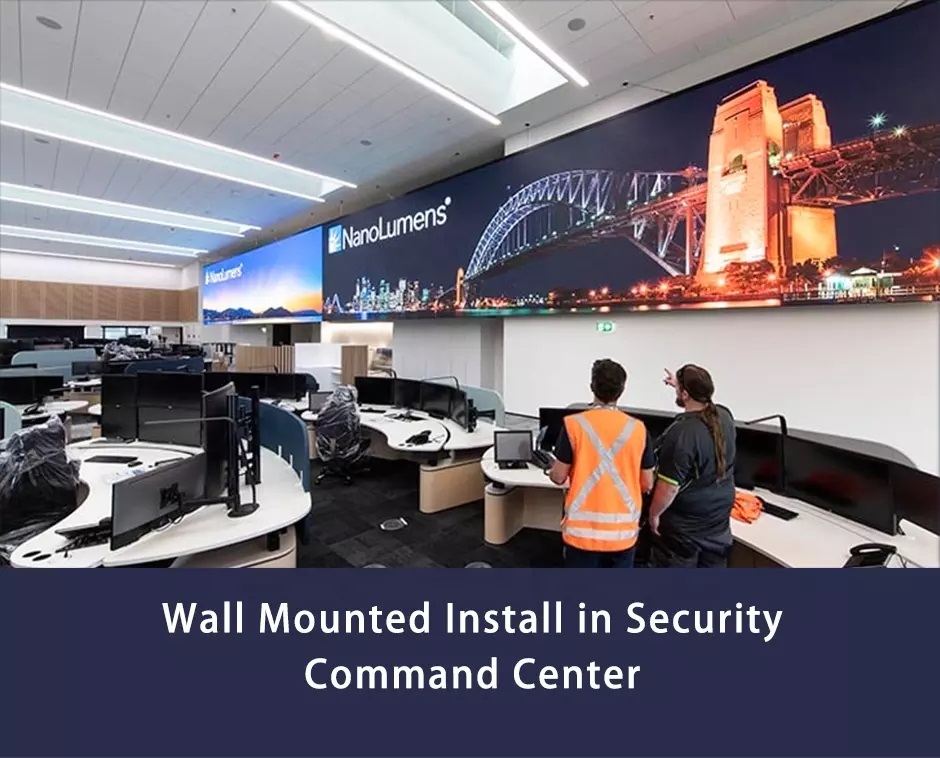

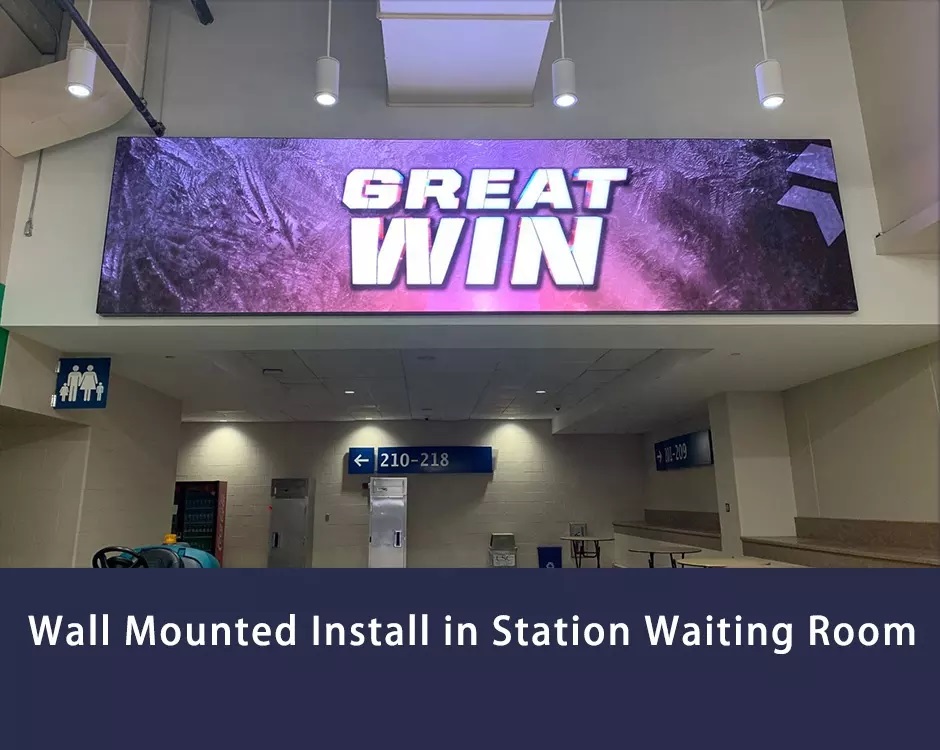

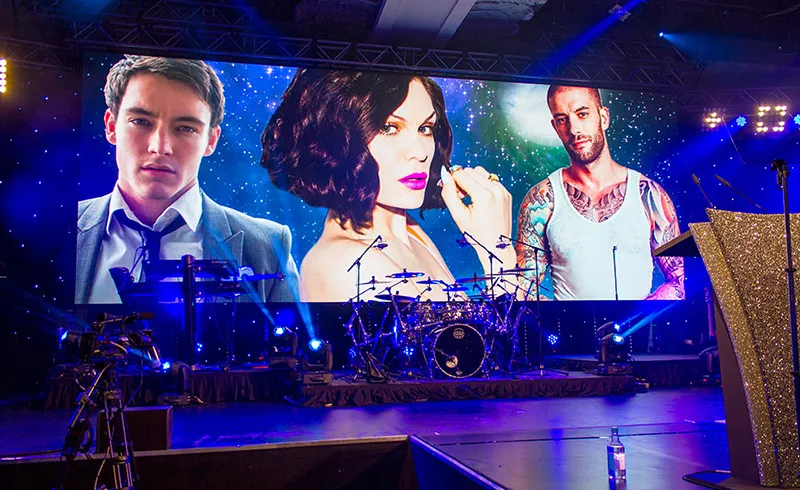

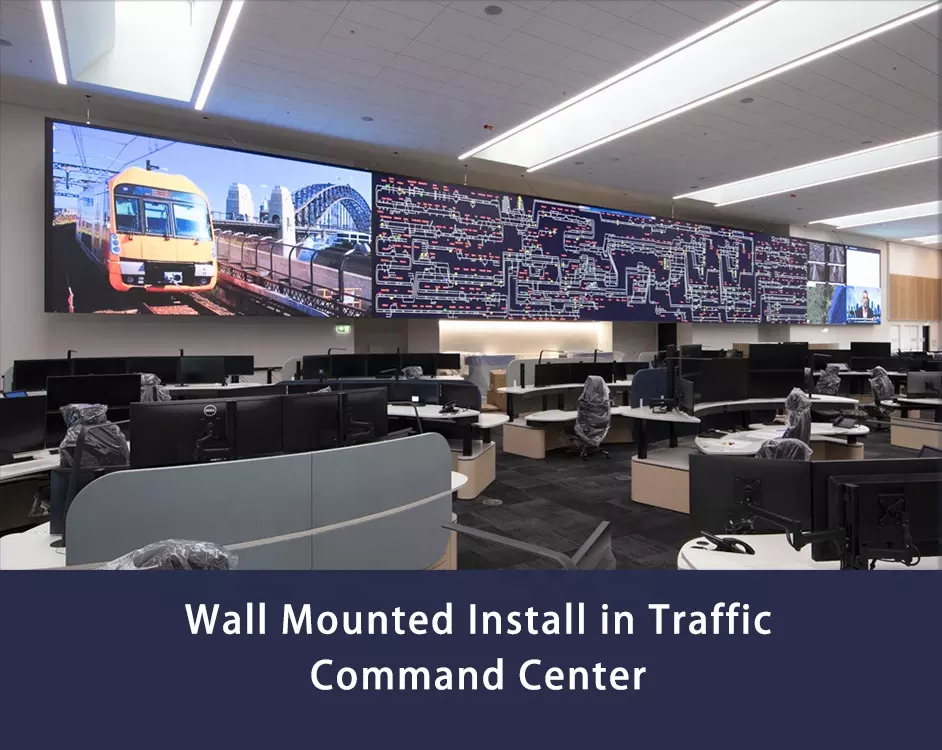

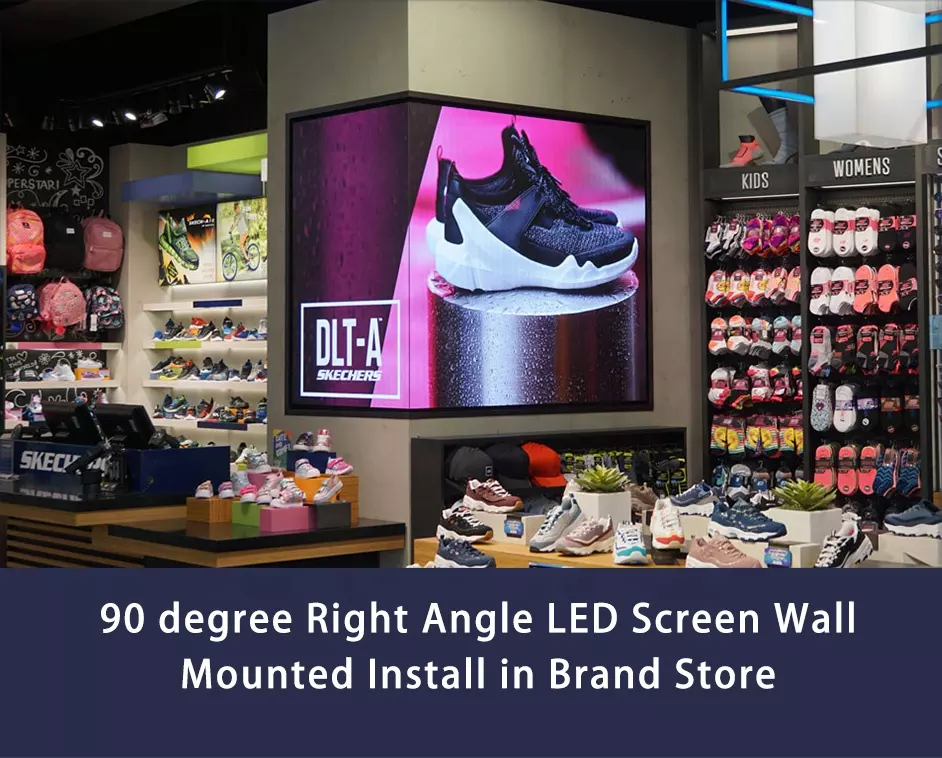

Applications:

Small Pixel LED display are widely used in different applications, the main application fields

are command and dispatch center, security monitoring, video conference, exhibition, radio and

television studio, meteorological information center, production safety monitoring, environment

monitoring, fire protection, maritime flood control, energy, electric power, finance, securities market,

shopping malls, hotels, airports, subway and so on

FAQ :

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
