High Brightness 6000cd Indoor Outdoor 2K 4K Led Rental Display Led
Screens For Events
Advantage:

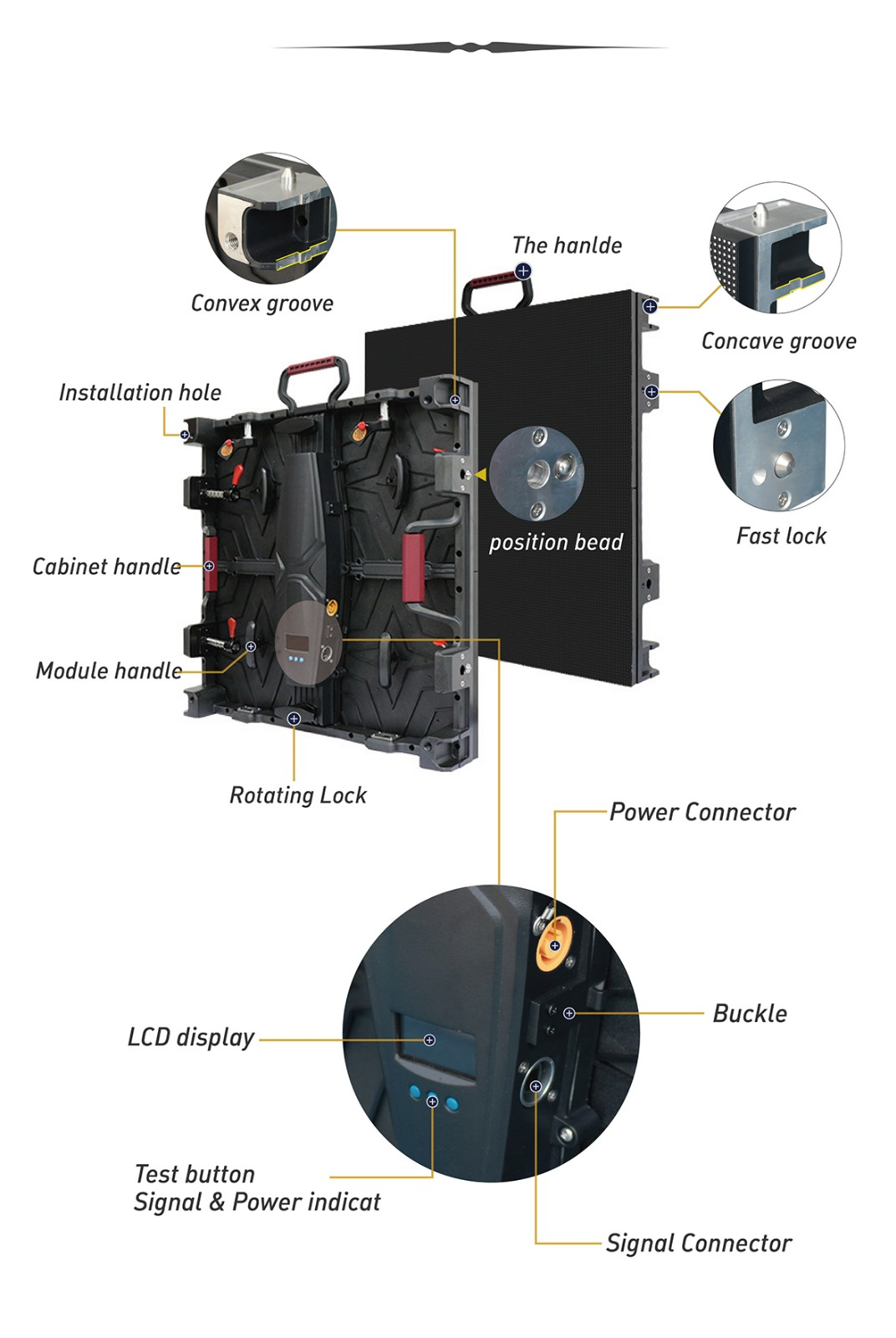

1. Multi-purpose cabinet design:use for both indoor/outdoor screen
2. 100% front and rear maintenance:all components dismount from
front and rear side, fast and easy
3. Multiple splicing:exclusive angle lock, 45° bevel edge and 90°
right angle customized cabinet
4. UVAE & Hard-Coating Tech:maximum 160° viewing angle,
anti-collision and scratch-proof
5.Humanized operating interface with breakdown indicator lights,
easy to maintain.
6. High debugging brightness and no damage to gray scale, achieving
the debugging technology for nice image.
Easy maintenance and light weight saving a lot of labors for
installation, brings a lot of
business value to social.

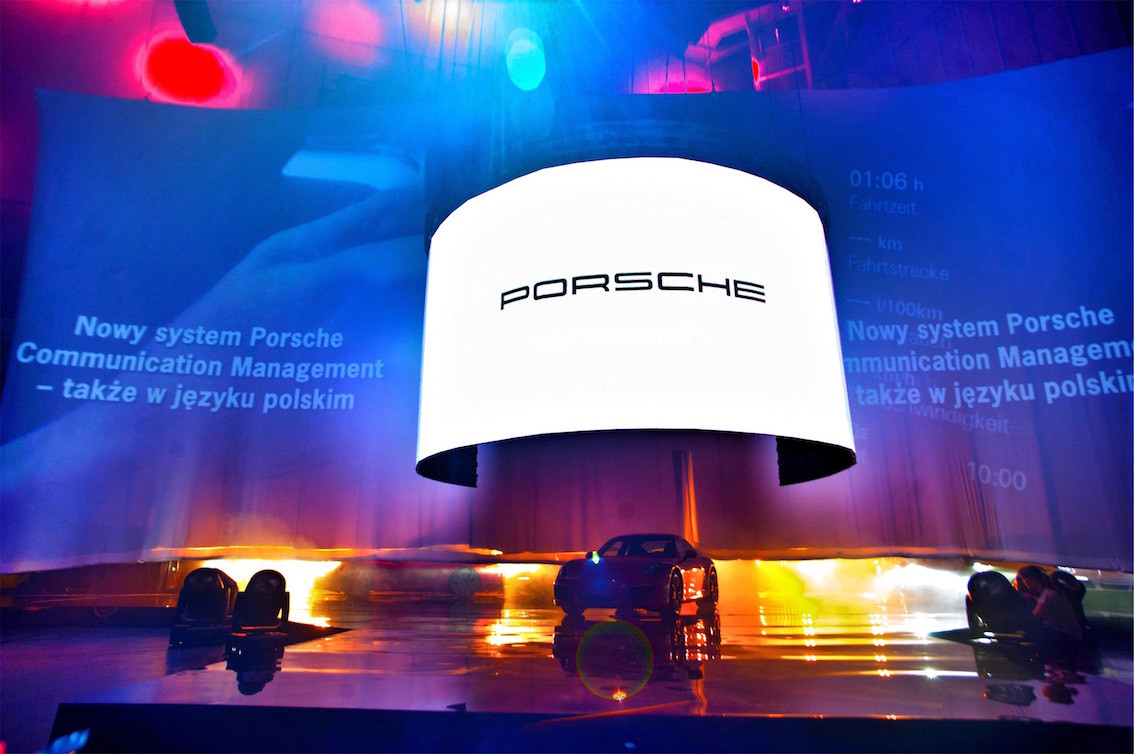

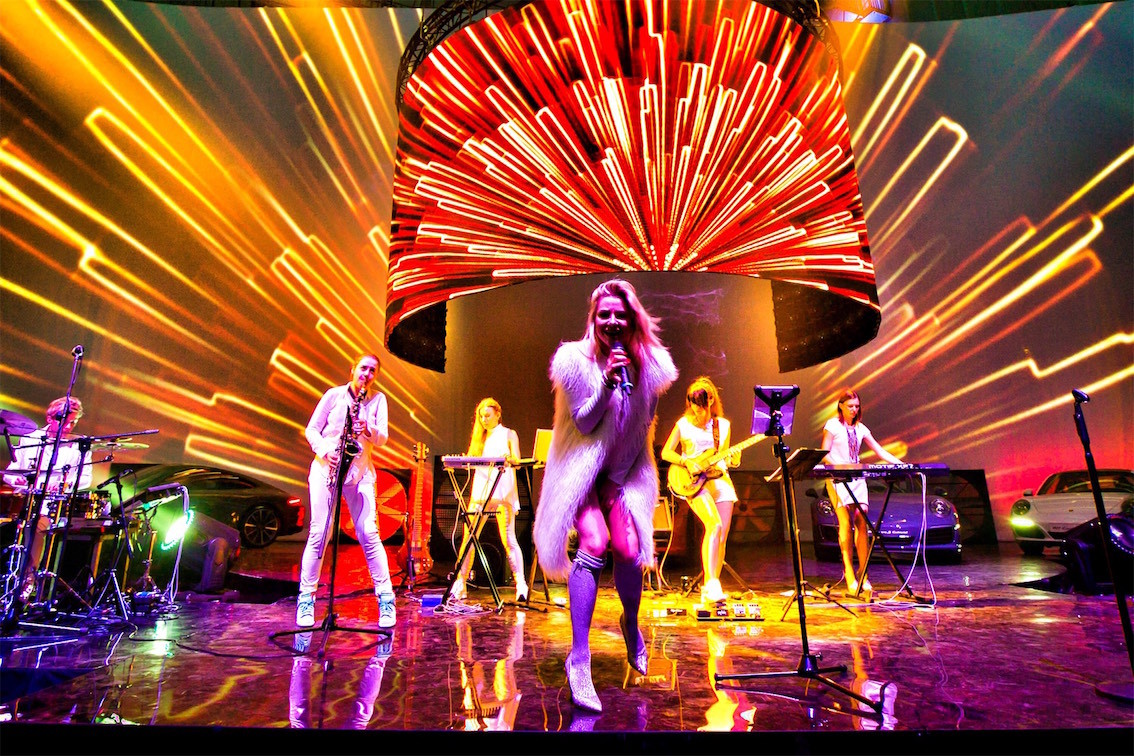

This product is widely used in outdoor and indoor rental event,
concert show, wedding,
TV boardcasting, Conference events field, etc.
Specification
| Model | R-2.604 | R- 2.97 | R-3.91 | R-3.91 | R-4.81 |
| Pixel Pitch (mm) | 2.604 | 2.97 | 3.91 | 3.91 | 4.8 |
| Application | | Indoor Rental | Outdoor Rental |
| Pixel Density (dot/m²) | 147456 | 112896 | 65536 | 65536 | 43264 |
| LED Configuration | SMD2020 | SMD2020 | SMD2020 | SMD1921 | SMD2727 |
| Brightness (CD/m²) | ≥800nit | ≥1000nit | ≥1000nit | ≥5000nit | ≥5000nit |
| Module Size (mm*mm) | | 250*250mm |
| Module Resolution (dot*dot) | 96*96 | 84*84 | 64*64 | 64*64 | 52*52 |
| Cabinet Size (W*H*D)/(mm) | | 500*500*80 |
| Cabinet Resolution (dot*dot) | 192*192 | 168*168 | 128*128 | 128*128 | 104*104 |
| Material | | Die-casting Aluminum |
| Angle Lock Degree | | ±5°,±10° |
| Cabinet Weight (±0.25kg) | 7.0kg/cbn | 7.0kg/cbn | 7.0kg/cbn | 7.5kg/cbn | 7.5kg/cbn |
| Viewing Angle | | Horizontal:140° Vertical:140° |
| Refresh Rate (Hz) | | ≥1920hz / ≥3840hz |
| Viewing Distance (m) | >2.6m | >2.84m | >3.91 | >4.81 |
| Gray Scale (bit) | | 14bit |
| Max/Avg. Consumption (W/m²) | 480W/180W | 480W/180W | 500W/200W | 560W/220W | 600W/250W |
| AC Input (V) | 100～240V | 100～240V | 100～240V | 100～240V | 100～240V |
| AC Frequency (Hz) | 50～60Hz | 50～60Hz | 50～60Hz | 50～60Hz | 50～60Hz |
| Waterproof Level | IP43 | IP43 | IP43 | IP65 | IP65 |
| Maintenance | | 100% Front & Rear Service |
| Control system | | Nova/Linsn/Colorlight.. |
Applications:
Widely used in billboards, highways, railway tunnels, bridges,
squares, stadiums,
tparking lots, building walls, hotel, meeting room, offices ,
hospital , schools ,
flactories , commercial lighting , shopping malls,
supermarkets,concerts,
TV show and so on
FAQ:
Q1. What about LED Display MOQ?
A1. Any quantity is acceptable for your order. And the price is
negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to
the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt
industry top quality material,we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free,
spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
