IP43 P5.9 Led Screens For Events Video Wall Display Panels

Ask Lasest Price
Model Number :	KA series
Brand Name :	Longvision
Supply Ability :	3000 Square Meter/Square Meter per Month
Price :	$599.00 - $1090 /sqm
Certification :	CE FCC ROHS UL CCC
Payment Terms :	D/P, T/T, Western Union, MoneyGram
Delivery Time :	4-10 Days

Add to Cart

Product Details
Company Profile

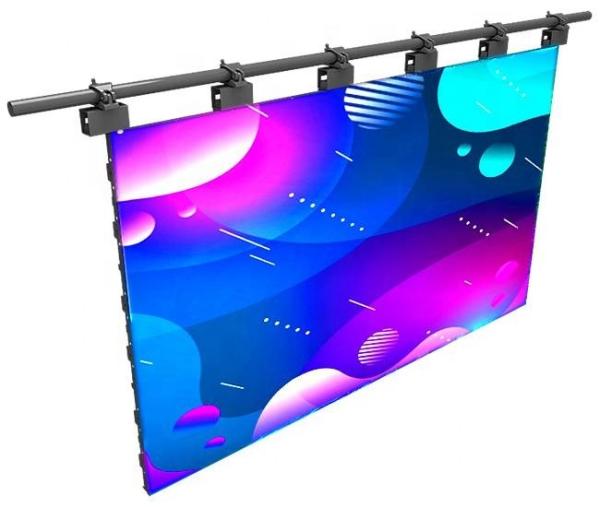

IP43 P5.9 Led Screens For Events Video Wall Display Panels

IP43 P5.9 Led Screens For Events Video Wall Display Panels

Advantages

1. Super light

The weight of the aluminum box is 40% lighter than that of the traditional iron box,

which greatly saves the cost

2. Arc lock

Special arc lock, can arc ±45°

3. Waterproof grade

The structure of the box is designed to achieve IP65 outdoors

4. Aluminum alloy die-casting box

Fast heat dissipation, anti-interference, high strength, high precision, quick installation,
indoor and outdoor general use, easy maintenance, high cost performance

Applications:

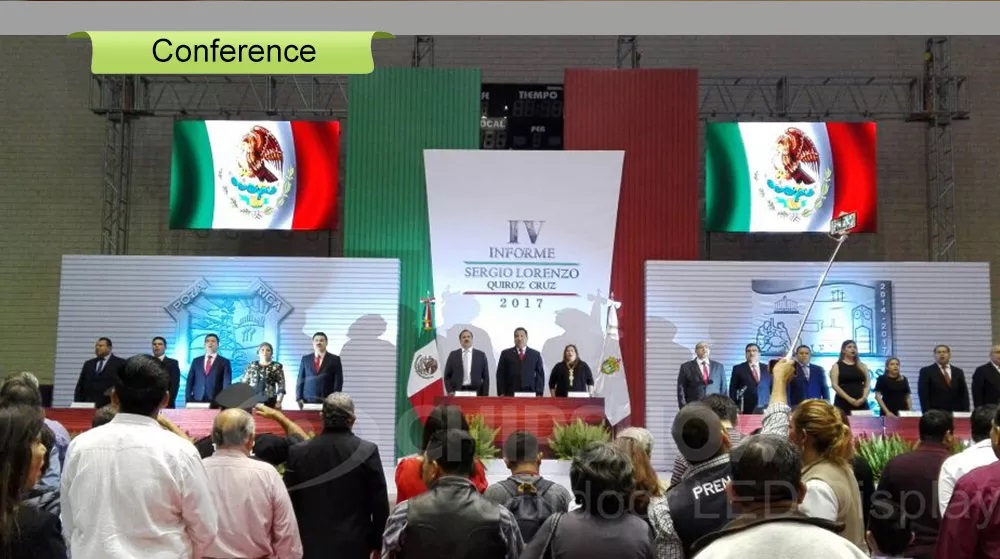

The stage performance market is enduring, and it is the main application field of LED

rental screen. Led display products are widely used in stage performance activities all

over the world. Led display screen has brilliant and bright color performance, which

brings rich colors to the stage performance. The colorful display screen combined with

flexible switching screen lens creates a strong visual impact and artistic appeal for the

audience. With the increasing number of small performances and large concerts,LED

rental screens have been widely used in stages, large events and other places. As the

rental screen box is light, thin, not easy to deformation, fast installation and other characteristics,

LED display is an indispensable part of the stage performance field.

IP43 P5.9 Led Screens For Events Video Wall Display Panels

Specifications
Model	A-P2.84	A-3.91	A-3.91	A-4.81	A-5.95
Pixel Pitch (mm)	2.84	3.91	3.91	4.8	5.95
Application	Indoor Rental			Outdoor Rental
Pixel Density (dot/m²)	147456	112896	112896	65536	43264
LED Configuration	SMD2020	SMD2020	SMD1921	SMD2727	SMD2727
Brightness (CD/m²)	≥1000nit	≥1000nit	≥5000nit	≥5000nit	≥5500nit
*Module Size (mmmm)**	*250250mm**
*Module Resolution (dotdot)**	*9696**	*6464**	*6464**	*5252**	*4242**
*Cabinet Size (WHD)/(mm)*	*50050080*
*Cabinet Resolution (dotdot)**	*192192**	*128128**	*128128**	*104104**	*8484**
Material	Die-casting Aluminum
Angle Lock Degree	±5°,±10°
Cabinet Weight (±0.25kg)	7.0kg/cbn	7.0kg/cbn	7.5kg/cbn	7.5kg/cbn	7.5kg/cbn
Viewing Angle	Horizontal:140° Vertical:140°
Refresh Rate (Hz)	≥1920hz / ≥3840hz
Viewing Distance (m)	>2.84m	>3.91			>4.81	>5.95
Gray Scale (bit)	14bit
Max/Avg. Consumption (W/m²)	480W/180W	500W/200W	560W/220W	600W/250W	650W/280W
AC Input (V)	100～240V	100～240V	100～240V	100～240V	100～240V
AC Frequency (Hz)	50～60Hz	50～60Hz	50～60Hz	50～60Hz	50～60Hz
Waterproof Level	IP43	IP43	IP65	IP65	IP65
Maintenance	100% Front & Rear Service
Control system	Nova/Linsn/Colorlight..

FAQ:

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
