P2.6 P2.9 P3.9 P4.81 Indoor Full Color Led Display Wall Screen LR Series

Product Advantages

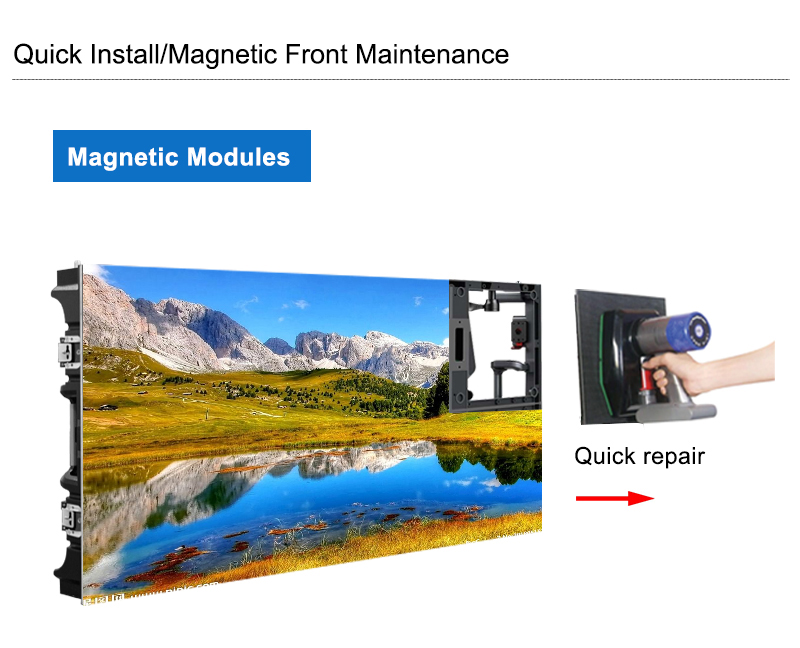

1. Integrated cabinet design saves maintenance time

2. Plane lock and radian lock are integrated to support a variety of scene applications

3. Radian lock support ± 6 ° / ± 3 °

4. Modular design of power control cabinet, no wire is needed to connect the module

5. The wireless material distribution inside the power cabinet is clean and tidy, and the signal is stable

6. Unique module design, support module left and right interchangeably

Appications:

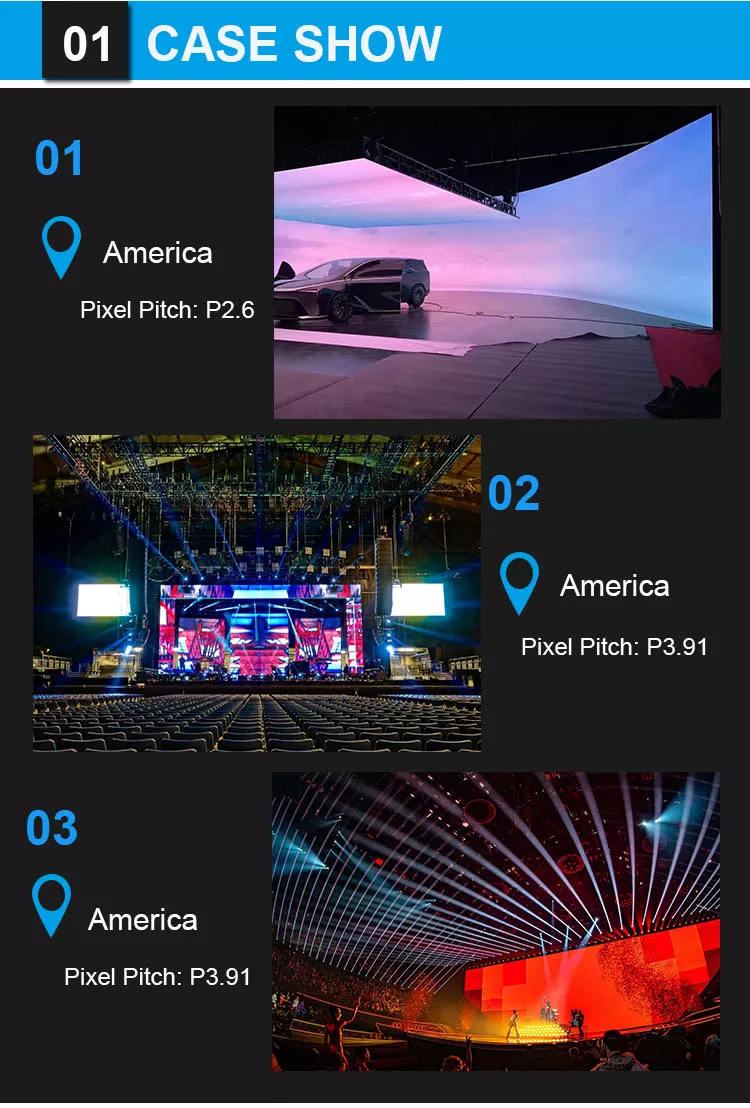

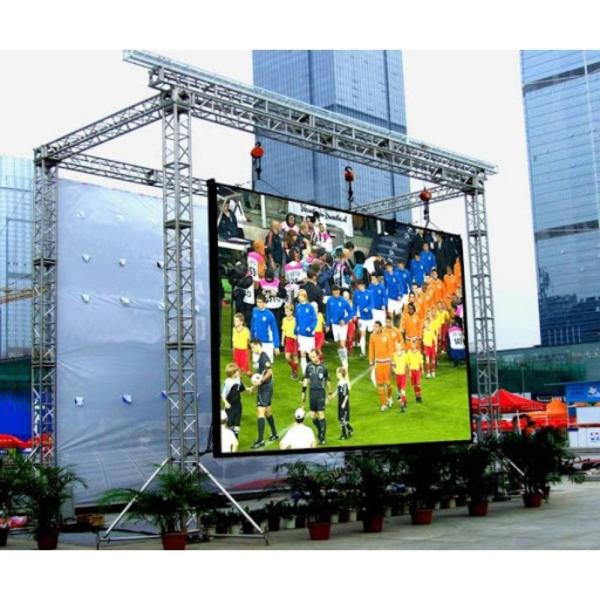

The stage performance market is enduring, and it is the main application field of LED rental screen.

Led Rental display products are widely used in stage performance activities all over the world.

Led display screen has brilliant and bright color performance, which brings rich colors to the stage

performance. The colorful display screen combined with flexible switching screen lens creates a strong

visual impact and artistic appeal for the audience. With the increasing number of small performances

and large concerts,LED rental screens have been widely used in stages, large events and other places.

As the rental screen box is light, thin, not easy to deformation, fast installation and other characteristics,

LED display is an indispensable part of the stage performance field.

	Indoor Rental					Outdoor Rental
Pixel Pitch	2.604	2.976	3.91	3.91	4.81
LED lamp	SMD2020	SMD2020	SMD2020	SMD1921	SMD1921
Density	147456dots/㎡	112896dots/㎡	65536dots/㎡	65536 dots/㎡	43264dots/㎡
Brightness	1000nits	1000nits	1000nits	>4000nits	>4000nits
IP rating	IP31	IP31	IP31	IP65	IP65
Cabinet Materiel	Die-casting Aluminum
Scan	24 scan	24 scan	16 scan	16 scan	13 scan
Module weight	0.5kg	0.5kg	0.5kg	1kg	1kg
Cabinet Weight	7.5kg	7.5kg	7.5kg	8kg	8kg
Module size	250*250 mm	250*250 mm	250*250 mm	500*250 mm	500*250 mm
Cabinet size	500*500*85mm	500*500*85mm	500*500*85mm	500*500*85mm	500*500*85mm
Module pixel	96*96 dots	84*84 dots	64*64 dots	64*128 dots	52*104 dots
Cabinet pixel	192*192 dots	168*168 dots	128*128dots	128*128 dots	104*104 dots
Max Power	500 w/sqm	450 w/sqm	400 w/sqm	650 w/sqm	500 w/sqm
Average Power	150 w/sqm	140 w/sqm	130 w/sqm	200 w/sqm	160 w/sqm
Viewing Angle	Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg
Control way	synchronous/asynchronous
Gray scale	16bit
Operating system	AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity	10% 〜90%
Work temperature	-20 〜♦ 65°C

FAQ :

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
