IP65 Indoor Outdoor creative Led Screens For Events Rental 1000nits

Advantages

1. Optional Cabinet size: 500×500mm/500×1000mm 2. Quick Locking System! One man installation, Auto-locking system for fast and easy 1 man installation with ultimate safty and pixel protection. 3. High Refresh Rate 3840Hz 4. High greyscale, Not only refresh rate, LR-L Series grayscale also benefits from PWM IC driver. Grayscale is smoother comparing with common IC driver especially at low grayscale. 5. Flatness≤0.1MM

Optional Cabinet Size

Cabinet size: 500×500mm/500×1000mm

Cabinet Features and Weight

Only 7.5kg for 500×500mm/ 12.5kg 500×1000mm

Quick Locking System

Quick! One man installation, Auto-locking system for fast and easy 1 man installation with ultimate safty and pixel protection.

Flatness

High precision cabinet, flatness≤0.1MM

Intelligent Managment

Cabinet has LCD display to show the data when the screen is working.

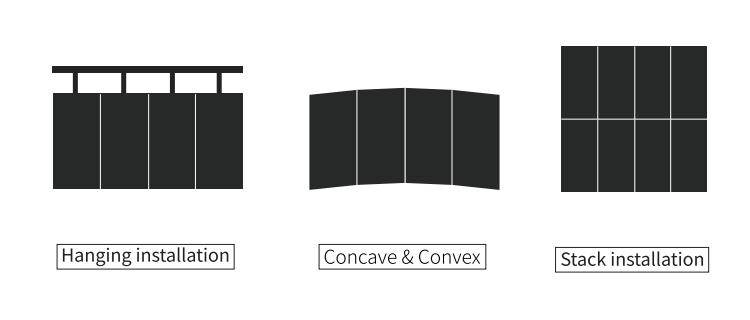

Installation Way

Hanging, stack and lifting

Specifications
Model	TK 2.84	TK 3.91	TK 3.91	TK 4.81	TK 5.95
Pixel Pitch (mm)	2.84	3.91	3.91	4.8	5.95
Application	Indoor Rental		Outdoor Rental
Pixel Density (dot/m²)	147456	112896	112896	65536	43264
LED Configuration	SMD2020	SMD2020	SMD1921	SMD2727	SMD2727
Brightness (CD/m²)	≥1000nit	≥1000nit	≥5000nit	≥5000nit	≥5500nit
Module Size (mm*mm)	250*250mm
Module Resolution (dot*dot)	96*96	64*64	64*64	52*52	42*42
Cabinet Size (W*H*D)/(mm)	500*500*80 500*1000*80
Cabinet Resolution (dot*dot)	192*192	128*128	128*128	104*104	84*84
Material	Die-casting Aluminum
Angle Lock Degree	±5°,±10°
Cabinet Weight (±0.25kg)	7.0kg/cbn	7.0kg/cbn	7.5kg/cbn	7.5kg/cbn	7.5kg/cbn
Viewing Angle	Horizontal:140° Vertical:140°
Refresh Rate (Hz)	≥1920hz / ≥3840hz
Viewing Distance (m)	>2.84m	>3.91		>4.81	>5.95
Gray Scale (bit)	14bit
Max/Avg. Consumption (W/m²)	480W/180W	500W/200W	560W/220W	600W/250W	650W/280W
AC Input (V)	100～240V	100～240V	100～240V	100～240V	100～240V
AC Frequency (Hz)	50～60Hz	50～60Hz	50～60Hz	50～60Hz	50～60Hz
Waterproof Level	IP43	IP43	IP65	IP65	IP65
Maintenance	100% Front & Rear Service
Control system	Nova/Linsn/Colorlight..

Applications:

The stage performance market is enduring, and it is the main application field of LED rental screen.

Led display products are widely used in stage performance activities allover the world. Led display

screen has brilliant and bright color performance, which brings rich colors to the stage performance.

The colorful display screen combined with flexible switching screen lens creates a strong visual

impactand artistic appeal for theaudience. With the increasing number of small performances and

large concerts,LED rental screens have been widely used in stages, large events and other places.

As the rental screen box is light, thin, not easy to deformation, fast installation and other characteristics,

LED display is an indispensable part of the stage performance field.

FAQ :

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?

We accept EXW,CIF,CNF,DDP,DDU etc
