    ODM Stage Background Video Wall Led Screens For Events 500x500mm P4.81

    Ask Lasest Price
    Model Number : Merged A series
    Brand Name : Longvision
    Price : $199.00/Sets 4-99 Sets
    Certification : CE FCC ROHS UL CCC
    • Product Details
    • Company Profile

    ODM Stage Background Video Wall Led Screens For Events 500x500mm P4.81

    ODM Stage Background Video Wall Led Screens For Events 500x500mm P4.81

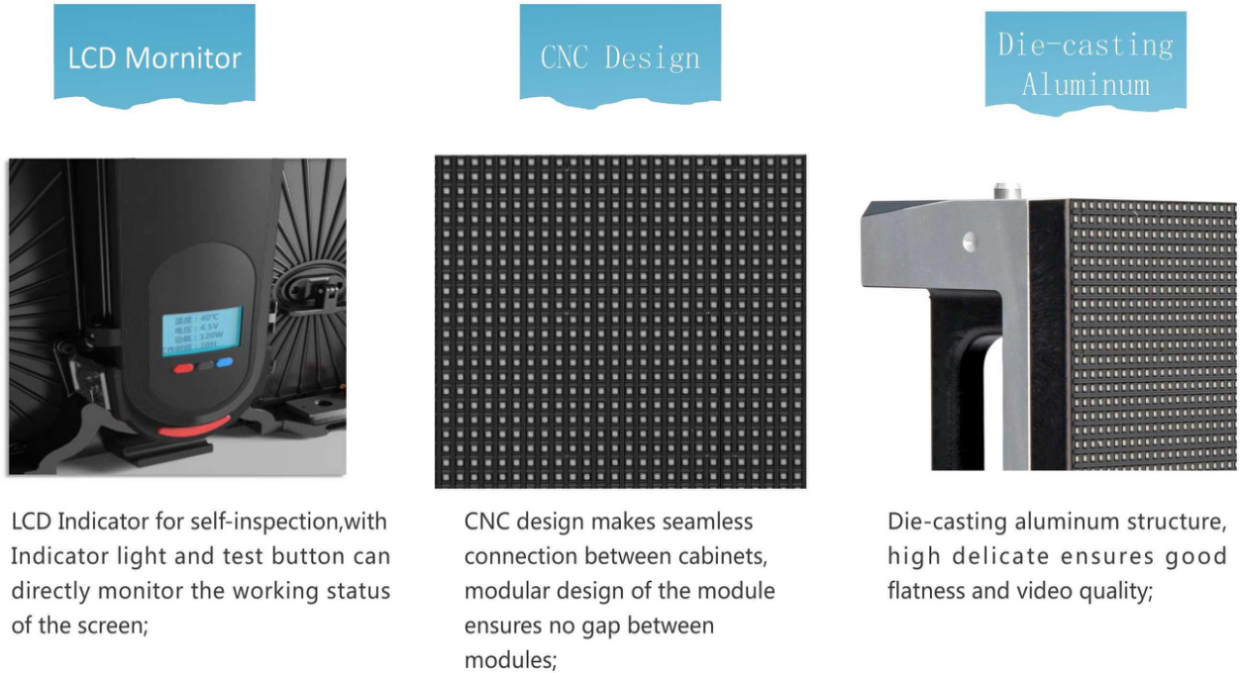

    Advantages
    1. Multi-purpose cabinet design:use for both indoor/outdoor screen
    2. 100% front and rear maintenance:all components dismount from front and rear side, fast and easy
    3. Multiple splicing:exclusive angle lock, 45° bevel edge and 90° right angle customized cabinet
    4. UVAE & Hard-Coating Tech:maximum 160° viewing angle, anti-collision and scratch-proof
    ODM Stage Background Video Wall Led Screens For Events 500x500mm P4.81
    ODM Stage Background Video Wall Led Screens For Events 500x500mm P4.81
    ODM Stage Background Video Wall Led Screens For Events 500x500mm P4.81
    ODM Stage Background Video Wall Led Screens For Events 500x500mm P4.81
    ODM Stage Background Video Wall Led Screens For Events 500x500mm P4.81
    ODM Stage Background Video Wall Led Screens For Events 500x500mm P4.81
    ODM Stage Background Video Wall Led Screens For Events 500x500mm P4.81
    ODM Stage Background Video Wall Led Screens For Events 500x500mm P4.81
    ODM Stage Background Video Wall Led Screens For Events 500x500mm P4.81
    ODM Stage Background Video Wall Led Screens For Events 500x500mm P4.81
    ODM Stage Background Video Wall Led Screens For Events 500x500mm P4.81
    Specifications
    Model
    A-P2.84
    A-3.91
    A-3.91
    A-4.81
    A-5.95
    Pixel Pitch (mm)
    2.84
    3.91
    3.91
    4.8
    5.95
    Application
    Indoor Rental
    Outdoor Rental
    Pixel Density (dot/m²)
    147456
    112896
    112896
    65536
    43264
    LED Configuration
    SMD2020
    SMD2020
    SMD1921
    SMD2727
    SMD2727
    Brightness (CD/m²)
    ≥1000nit
    ≥1000nit
    ≥5000nit
    ≥5000nit
    ≥5500nit
    Module Size (mm*mm)
    250*250mm
    Module Resolution (dot*dot)
    96*96
    64*64
    64*64
    52*52
    42*42
    Cabinet Size (W*H*D)/(mm)
    500*500*80
    Cabinet Resolution (dot*dot)
    192*192
    128*128
    128*128
    104*104
    84*84
    Material
    Die-casting Aluminum
    Angle Lock Degree
    ±5°,±10°
    Cabinet Weight (±0.25kg)
    7.0kg/cbn
    7.0kg/cbn
    7.5kg/cbn
    7.5kg/cbn
    7.5kg/cbn
    Viewing Angle
    Horizontal:140° Vertical:140°
    Refresh Rate (Hz)
    ≥1920hz / ≥3840hz
    Viewing Distance (m)
    >2.84m
    >3.91
    >4.81
    >5.95
    Gray Scale (bit)
    14bit
    Max/Avg. Consumption (W/m²)
    480W/180W
    500W/200W
    560W/220W
    600W/250W
    650W/280W
    AC Input (V)
    100~240V
    100~240V
    100~240V
    100~240V
    100~240V
    AC Frequency (Hz)
    50~60Hz
    50~60Hz
    50~60Hz
    50~60Hz
    50~60Hz
    Waterproof Level
    IP43
    IP43
    IP65
    IP65
    IP65
    Maintenance
    100% Front & Rear Service
    Control system
    Nova/Linsn/Colorlight..
    FAQ:
    Q1. What about LED Display MOQ?
    A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

    Q2. What about Longvision capacity?
    A2.3000sqm per month.
    8 modernized dust-free and static-free production lines,
    6 new YAMAHA and PANASONIC high speed SMT machines,
    2 large leadless reflow oven
    250 skilled workers.

    Q3. When will you make the delivery?
    A3. 3-5 working days when we have LED module stock
    10-15 days for the new production led finished screen according to the size and quantities of your order.

    Q4. How about the warranty time?
    A4. Our standard is 2 years.
    But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

    Q5. Do you provide any free spare parts in each order?
    A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
    lamp, IC, mask, power supply, receiving card, etc.

    Q6. What`s trade terms you accept?
    A6. We accept EXW,CIF,CNF,DDP,DDU etc
