Brand Name : | Longvision |
Model Number : | LJ Series |
Certification : | CE, ROHS, UL, FCC |
Price : | negotiable |
Payment Terms : | T/T |
Supply Ability : | 3000 Square Meter/Month |
Delivery Time : | 7-20 work days |

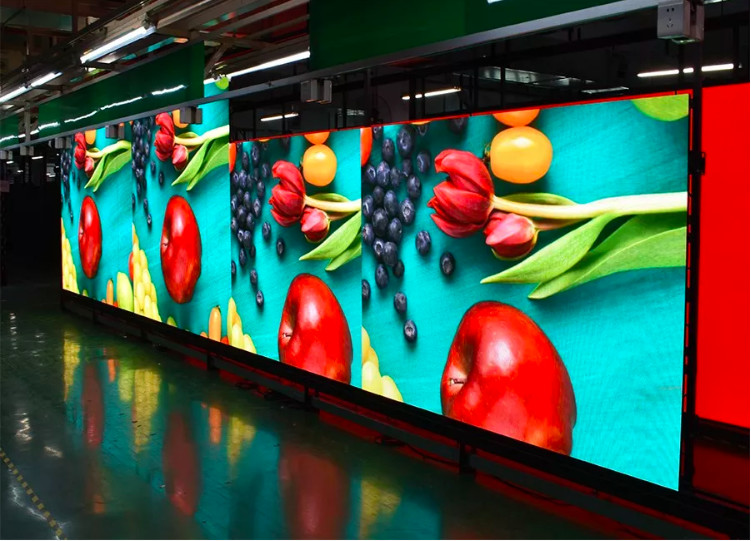

Factory Price Cabinet Size High Image Quality Indoor Rental Curved Led Display
* Multiple installation, Hanging and stacking, wall mounting
Specification
Type | Parameter name | p3.91 indoor LED module parameter |
Module constitute | Pixel structure | Table three LED |
LED specification | SMD2121 | |
Pixel composing | 1R1G1B | |
Pixel distance | 3.91mm | |
Module resolution | 64x64dots | |
Moudle size | 250X250mm | |
Pixel density | 65410dots | |
Peak power consumption | 30w | |
Moudle weight | 0.412kg | |
Cabinet parameter | Cabinet type | Die-casting aluminum |
Cabinet dimension | 500X500mm | |
Cabinet resolution | 128X128dots | |
Cabinet area | 0.25m2 | |
Optical parameter | White balance brightness | 1200cd/m2 |
Best visual distance | >3.91m | |
Horizontal viewing angle | 140 | |
Vertical viewing angle | 120 | |
Luminance uniformity | >95% | |
Contrast | 3000:1 | |
Electrical parameter | Maximum power | 479w/m |
Average power | 143W/m | |
Input voltage | AC220V(50HZ) | |
Output voltage | DC5V | |
Processing performance/ Operation parameter | Drive mode | 1/16scan |
Frame frequency | 60Hz | |
Refresh rate | >1920Hz | |
Control method | Synchronous | |
Typcial life values | 100000hrs | |
Working environment temperature | -10~60 | |
Working environment humidity | 10%~70% |
Product Discription
Applicaiton
Q1. What about LED Display MOQ?
![]() |
