110V / 220V Black Outdoor Led Display Screen Panel For Text

Product Categories

Shenzhen Longvision Technology Co., Ltd.

Contact Now

110V / 220V Black Outdoor Led Display Screen Panel For Text

Ask Lasest Price
Model Number :	LWC Series
Brand Name :	Longvision
Supply Ability :	3000 Square Meter/Square Meters per Month
Price :	negotiable
Certification :	CE, ROHS, UL, FCC
Payment Terms :	T/T
Delivery Time :	7-20 work days

Add to Cart

Product Details
Company Profile

110V / 220V Black Outdoor Led Display Screen Panel For Text

Advantages

1. Lighter and thinner:

15kg/m2 lighter than the conventional iron box, 20% thinner than the conventional box, saving transportation space

2. One Cabinet of three uses:

can be advertising fixed installation, adding hanging beam aviation plug and fast lock changing to be LED rental screen

3. High cost performance:

can support as the same price of iron cabinet, aluminum magnesium alloy material can resist corrosion and rust.

Specification

LED Module
Dimensions (w x h)	256mmx128mm	Resolution (w x h)	32 x 16
Pixel pitch	8mm	Pixel Density	15625/m2
LED Chip	Epistar	Pixel Configuration	SMD3535
Standard Panel
Dimensions(w x h x d)(mm)	768 x 768 x 130mm	Module Quantity(pcs)	18
Physical Resolution (w x h)(dots)	96 x 96	Physical Pixels (dots)	9216/cabinet
Weight/Panel (kgs)	26	Material	Iron metal cabinet
Average Power/sqm (watts)	260	Max Power/sqm(watts)	870
Parameter	Value
Brightness	6000cd/m2
Viewing Angle	Horizontal 160 deg. Vertical 120 deg.
Gray Scale	16 bit
Refresh Rate	1920Hz
Driving Mode	1/4 Scan
Input Power Frequency	50 or 60 Hertz
Input Voltage	96-242 Volt
Blind Spot Rate	<1/10,000
Lifetime at 50% Brightness	100,000 hours
IP Rating	IP65
Operating Temperature	-30 ~ +60 OC
Operating Humidity	10% ~ 90%
Control Distance	CAT5 cable:<100 m; Single mode fiber:<10 km
Signal Input Format	AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Operating System	Windows (2000/XP/Vista/7/10)

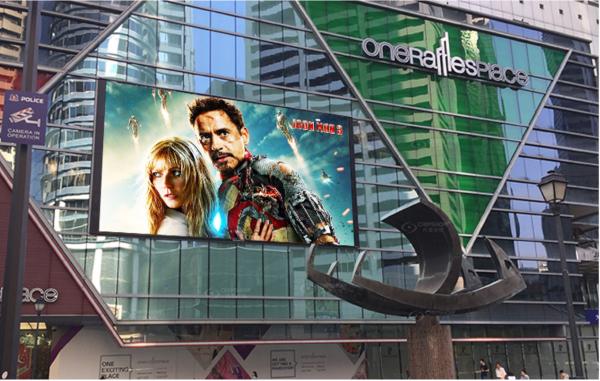

Application

110V / 220V Black Outdoor Led Display Screen Panel For Text

FAQ

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month. 8 modernized dust-free and static-free production lines, 6 new YAMAHA and PANASONIC high speed SMT machines, 2 large leadless reflow oven,250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock,10-15 days for the new production led finished screen according to the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.But you are willing to pay extra money for after sales and adopt industry top quality material, we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
