    Waterproof Smd Led Video Wall Custom Shape Led Screen P3 P8 P10

    Ask Lasest Price
    Model Number : DOOH
    Brand Name : Longvision
    Supply Ability : 3000 Square Meter/Square Meters per Month
    Price : negotiable
    Certification : CE, ROHS, UL, FCC
    Payment Terms : T/T
    Delivery Time : 7-20 work days
    • Product Details
    • Company Profile

    Waterproof Smd Led Video Wall Custom Shape Led Screen P3 P8 P10

    Product Features
    1. New Mask Design: making the light of LED achieve non-reflection, ensuring better visual effect of the screen
    2. Galvanizing And Phosphating High Temperature Spraying Tech: greatly improving the anti-rust function
    3. Anti - ultraviolet, anti - deformation module kit, flat screen body does not deformation
    Product Parameters
    ItemParameter
    Pixel Pitch6mm
    Pixel Configuration1R1G1B / R:G:B=3:6:1
    LED LampFull color
    Density27777dot/m2
    Module Size192*192mm
    Module Thickness17mm
    Module Weight370g
    Port TypeHUB-75D/B
    Cabinet SizeCustomized
    Brightness≥6500cd/m²
    View Angle≥120°(Vertical),≥140°(Horizontal)
    Best View Distance6-100m
    Frame Frequency≥60Hz
    Refresh Rate≥1920Hz
    Scan Mode1/8Scan
    Lifespan>100,000(Hrs)
    Max. power consumption950W/m2
    Ave. power consumption320W/m2
    Operation Temperature-25℃~+50℃
    Working Humidity10%~98%RH
    Storage Temperature-40℃~+80℃
    Working Voltage100~240V
    Maintenance ModeFront service or Rear service
    IP GradeIP65
    Product Discription

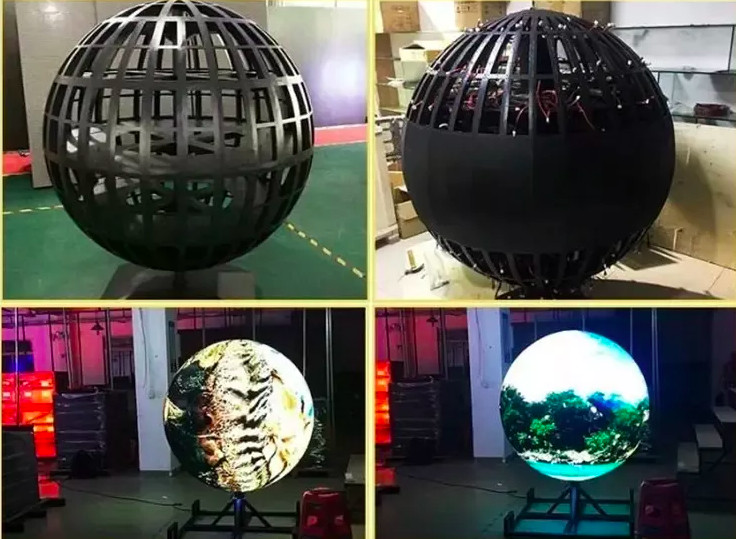

    Soft materials ,can realize the radian of S-shape,circle ,arc- shaped , both Horizontal and vertical can be rolled up,meet the requirements of creative stage Optional brightness and high refresh rate: Optional Brightnes 1000nit or 4000nit , to meet the requirements of indoor and outdoor high brightness display effect Up to 40% transparent rate ,to ensure the light-through ,smoke-through ,sound-through request High refresh rate ≥3840Hz,very stable image.
    Waterproof Smd Led Video Wall Custom Shape Led Screen P3 P8 P10Waterproof Smd Led Video Wall Custom Shape Led Screen P3 P8 P10
    Application
    Waterproof Smd Led Video Wall Custom Shape Led Screen P3 P8 P10Waterproof Smd Led Video Wall Custom Shape Led Screen P3 P8 P10
    FAQ

    Q1. What about LED Display MOQ?

    A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.
    Q2. What about Longvision capacity?
    A2.3000sqm per month. 8 modernized dust-free and static-free production lines, 6 new YAMAHA and PANASONIC high speed SMT machines, 2 large leadless reflow oven,250 skilled workers.
    Q3. When will you make the delivery?
    A3. 3-5 working days when we have LED module stock,10-15 days for the new production led finished screen according to the size and quantities of your order.
    Q4. How about the warranty time?
    A4. Our standard is 2 years.But you are willing to pay extra money for after sales and adopt industry top quality material, we can accept 3-5 years warranty.
    Q5. Do you provide any free spare parts in each order?
    A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
