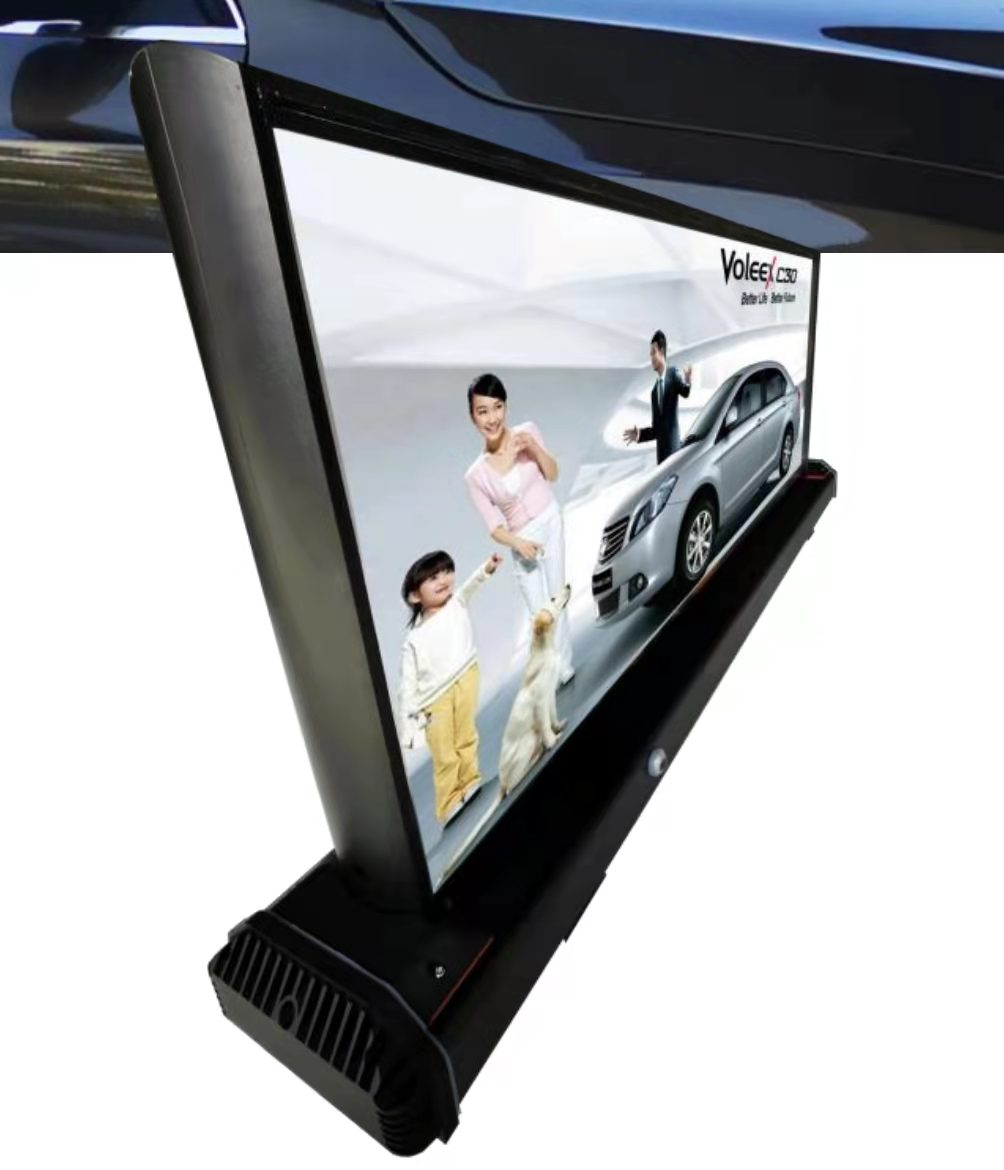

RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5

    Buy cheap RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 from wholesalers

    Buy cheap RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 from wholesalers
    • Buy cheap RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 from wholesalers
    • Buy cheap RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 from wholesalers
    • Buy cheap RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 from wholesalers
    • Buy cheap RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 from wholesalers
    • Buy cheap RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 from wholesalers
    • Buy cheap RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5 from wholesalers

    RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5

    Ask Lasest Price
    Model Number : LB Series
    Brand Name : Longvision
    Price : $1,059.00---$1989/Set
    Certification : CE FCC ROHS UL CCC
    Payment Terms : D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000 Set per Month
    Delivery Time : 4-10 Days
    • Product Details
    • Company Profile

    RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5

    RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5

    Product Advantages

    1, Patent structure design,aluminum case with oxidation treatment,coating

    film for unti ultraviolet, outdoor painting for anti-rusting and anti-aging.

    2, High tranparent pc cover that not turning yellow color or old in 10 years.
    3, high level powersupply,beyond voltage,current load,short circuit will be protected,
    work in -40°C~+70°C environment.
    4, Web control and could manage in anytime and any location through web browser.
    No need for download software.
    5, Easy installtion bracket , fast maintenance structure.
    RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5
    RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5

    Product Size

    Here is standard size, special installation way should follow the car size.
    RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5
    RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5
    RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5

    Bracket installation

    Easy design leads a quick way installtion of bracket.

    RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5

    Sign installation

    Each type of vehicle has different mounting racks.
    Different lengths of mounting racks can be selected according to type to be installed.
    The corresponding installation method can be designed according to different types
    of vehicles.
    RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5

    Connection Schematic Diagram

    Main cable connect with car battery and control cable connect with lighter position.
    RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5

    Control schematic

    Supports 3G 4G WIFI Internet connection.
    Quickly and simply change your content anytime, anywhere.
    RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5
    RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5

    Slim and Light Weight

    Slim and light architecture, Yaham taxi roof LED display cabinet weighs only 15kg.
    The thinnest part of the cabinet measures only 5.8cm, aerodynamic design results
    in low wind load.
    RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5

    Waterproof Testing

    IP65 High protection, can adapt to any extreme enviroment.
    RGB Aluminum Taxi Top Led Display Digital Sign P2 P2.5 P3 P5

    Product Parameters
    Model
    P2.5
    P3
    P4
    P5
    Pixel Pitch
    2.5mm
    3mm
    4mm
    5mm
    Application
    Outdoor
    Outdoor
    LED Configuration
    SMD1921
    SMD1921
    SMD1921
    SMD2727
    Pixel Density (dots/㎡)
    160,000
    111111
    62,500
    40,000
    Module size
    160×160mm
    192×192mm
    256×128mm
    320×160mm
    Module Resolution
    64×64dots
    64×64dots
    64×32dots
    64×32dots
    Cabinet Size960×320(Double Sided)
    960×320(Double Sided)
    960×320(Double Sided)

    960×320(Double Sided)

    Cabinet Resolution
    640×128dots
    512×128dots
    384×96dots
    192×640dots
    Cabinet Weight
    15kg
    15kg
    15kg
    15kg
    IP Rating
    IP65
    IP65
    IP65
    IP65
    Brightness Intensity
    ≥2500cd/㎡
    ≥2500cd/㎡
    ≥2500cd/㎡
    ≥5000cd/㎡
    Viewing Angle
    140°
    140°
    140°
    140°
    View Distance
    >2m
    >3m
    >4m
    >5m
    Gray Scale
    16bit
    16bit
    16bit
    16bit
    Max./Avg. Consumption (m²)
    400W/130W
    460W/150W
    480W/160W
    500W/160W
    Operating Life
    100,000hours
    Refresh Frequency
    ≥3840HZ
    ≥3840HZ
    ≥3840HZ
    ≥3840HZ
    Control Mode
    Synchronous display with control PC by DVI
    Operation Power
    AC100/240 50/60HZ
    Operating Condition
    - 20℃~+50℃, 10~90% RH
    Applications :
    Mainly used in oudoor environments car top led display,can show video,picture,words etc u want show advertising.
    Of course, there are many models of the module you can choose(like:OUTDOOR P5,P6,P8,P10 ), and the cabinet is custom made.
    Support languages in 12 countries: Chinese, English, French, Spanish, Arabic, Portuguese, Korean, Japanese, etc.

    FAQ:

    Q1. What about LED Display MOQ?

    A1. Any quantity is acceptable for your order. And the price is negotiable
    for large quantity.

    Q2. What about Longvision capacity?
    A2.3000sqm per month.
    8 modernized dust-free and static-free production lines,
    6 new YAMAHA and PANASONIC high speed SMT machines,
    2 large leadless reflow oven 250 skilled workers.

    Q3. When will you make the delivery?
    A3. 3-5 working days when we have LED module stock
    10-15 days for the new production led finished screen according to the size and
    quantities of your order.

    Q4. How about the warranty time?
    A4. Our standard is 2 years.
    But you are willing to pay extra money for after sales and adopt industry top quality
    material,we can accept 3-5 years warranty.

    Q5. Do you provide any free spare parts in each order?
    A5. Yes, a certain amount of spare parts will be provided for free, spare parts including
    module, power cable,signal cable, LED
    lamp, IC, mask, power supply, receiving card, etc.

    Q6. What`s trade terms you accept?
    A6. We accept EXW,CIF,CNF,DDP,DDU etc
