P2.5 P3 P5 Roof Led Display 4G WiFi GPS Outdoor Taxi Led Display

Product Categories

Shenzhen Longvision Technology Co., Ltd.

Contact Now

P2.5 P3 P5 Roof Led Display 4G WiFi GPS Outdoor Taxi Led Display

Ask Lasest Price
Model Number :	LB-T
Brand Name :	Longvision
Price :	$959.00 - $1589/Sets
Certification :	CE FCC ROHS UL CCC
Payment Terms :	D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000 Units per Month
Delivery Time :	4-8 Days

Add to Cart

Product Details
Company Profile

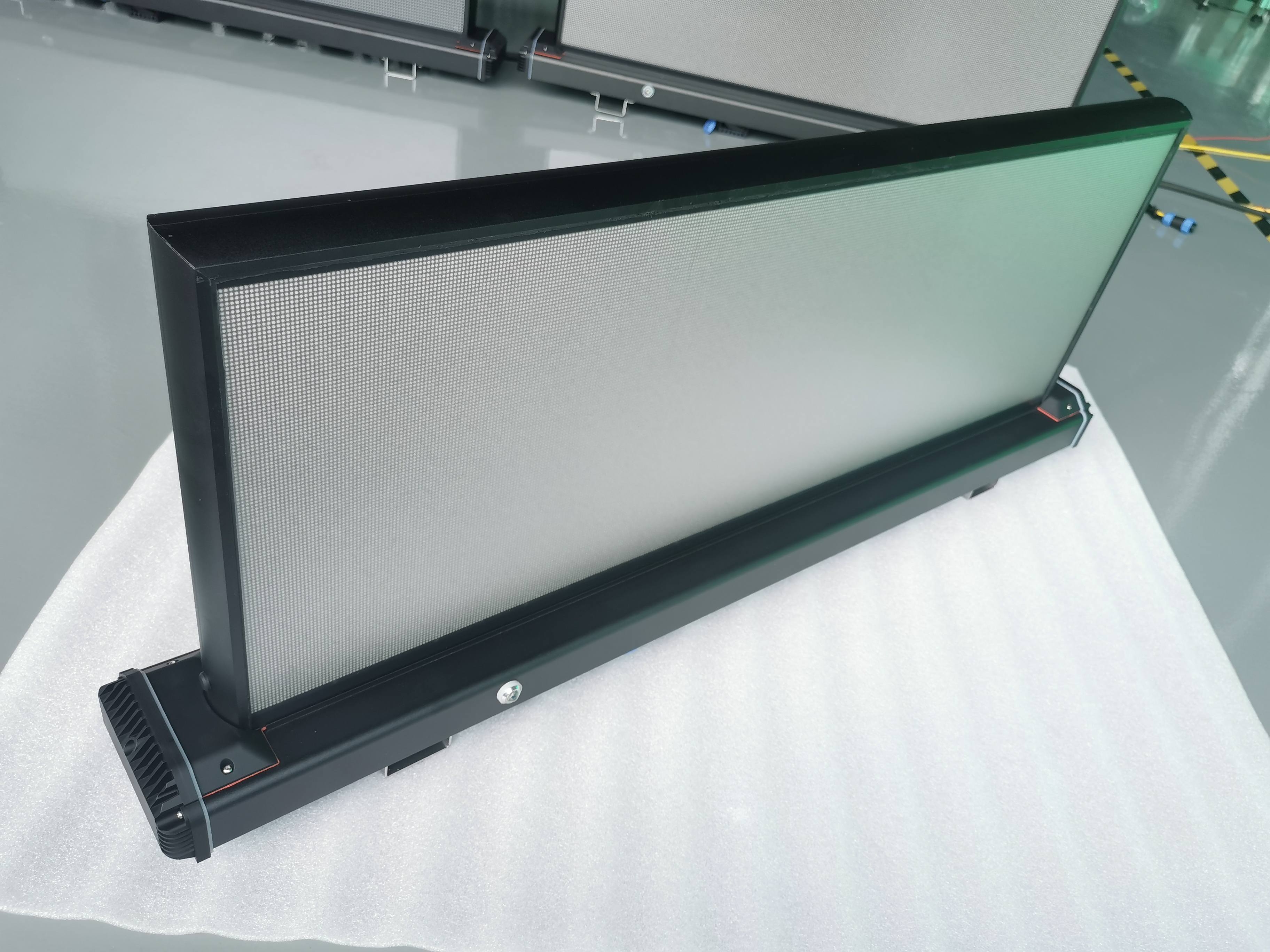

P2.5 P3 P5 Roof Led Display 4G WiFi GPS Outdoor Taxi Led Display

P2.5 P3 P5 Roof Led Display 4G WiFi GPS Outdoor Taxi Led Display

Product Advantages

1, Patent structure design,aluminum case with oxidation treatment,coating film

for unti ultraviolet, outdoor painting for anti-rusting and anti-aging.

2, High tranparent pc cover that not turning yellow color or old in 10 years.

3, high level powersupply,beyond voltage,current load,short circuit will be protected,

work in -40°C~+70°C environment.

4, Web control and could manage in anytime and any location through web browser.

No need for download software.

5, Easy installtion bracket , fast maintenance structure.

Lightweight 15kg/pcs and 58mm thickness, the most light and thin Car Top led display

in this industry, can reduce much of your transportation failure.

P2.5 P3 P5 Roof Led Display 4G WiFi GPS Outdoor Taxi Led Display

Product Size: 960x320mm.

Here is standard size, special installation way should follow the car size.

Bracket installation

Easy design leads a quick way installtion of bracket.

Sign installation

Each type of vehicle has different mounting racks.

Different lengths of mounting racks can be selected according to type to be installed.

The corresponding installation method can be designed according to different

types of vehicles.

Connection Schematic Diagram

Main cable connect with car battery and control cable connect with lighter position.

Control schematic

Supports 3G 4G WIFI Internet connection.

Quickly and simply change your content anytime, anywhere.

Slim and Light Weight

Slim and light architecture, the taxi roof LED display cabinet weighs only 15kg.

The thinnest part of the cabinet measures only 5.8cm, aerodynamic design

results in low wind load.

Waterproof Testing

IP65 High protection, can adapt to any extreme enviroment.

Product Parameters

Model	P2.5	P3	P4	P5
Pixel Pitch	2.5mm	3mm	4mm	5mm
Application	Outdoor				Outdoor
LED Configuration	SMD1921	SMD1921	SMD1921	SMD1921
Pixel Density (dots/㎡)	160,000	111111	62,500	40,000
Module size	160×160mm	192×192mm	256×128mm	320×160mm
Module Resolution	64×64dots	64×64dots	64×32dots	64×32dots
Cabinet Size	960×320(Double Sided)	960×320(Double Sided)	960×320(Double Sided)	960×320(Double Sided)
Cabinet Resolution	640×128dots	512×128dots	384×96dots	192×640dots
Cabinet Weight	15kg	15kg	15kg	15kg
IP Rating	IP65	IP65	IP65	IP65
Brightness Intensity	≥5500cd/㎡	≥5500cd/㎡	≥5500cd/㎡	≥5500cd/㎡
Viewing Angle	140°	140°	140°	140°
View Distance	＞2m	＞3m	＞4m	＞5m
Gray Scale	16bit	16bit	16bit	16bit
Max./Avg. Consumption (m²)	400W/130W	460W/150W	480W/160W	500W/160W
Operating Life	100,000hours
Refresh Frequency	≥3840-5200HZ	≥3840-5200HZ	≥3840-5200HZ	≥3840-5200HZ
Control Mode	Synchronous display with control PC by DVI
Operation Power	AC100/240 50/60HZ
Operating Condition	- 20℃~+50℃, 10~90% RH

Taxi LED advertising screen cost performance is very high, what are

the advantages of taxi LED?

Taxi LED advertising screen cost performance is very high, what are the advantages of taxi

LED advertising?

First, can chase the crowd, because the taxi to pull guests, so a city where there are many people,

taxi drivers will take the initiative to find crowded areas, especially the location of major events, such

as concerts, fairs, sports venues, hotels, hotels, etc.. This advantage is unmatched by any other medium.

Second, taxi LED advertising is not like fixed outdoor advertising, not fixed advertising, therefore, a wide audience. Taxis are not restricted by region, route, time, and time, and can reach every corner.

Third, the advertising effect is good, taxi LED advertising has the characteristics of high contact rate,

high contact frequency, high arrival rate and large coverage. The height of taxi advertising is the same

as the line of sight of people, and the advertising content can be transmitted to the public in close distance,

so as to achieve the maximum visual opportunity and the highest reach rate, so the advertising effect is very good.

Fourth, the information release is flexible, not subject to the constraints of time and space, can be designated

time constantly round broadcast, can receive, store, display information in the driving of the vehicle

FAQ:

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven 250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
