Longvison Commercial Smart Led Poster Display 1000nits for
Advertising

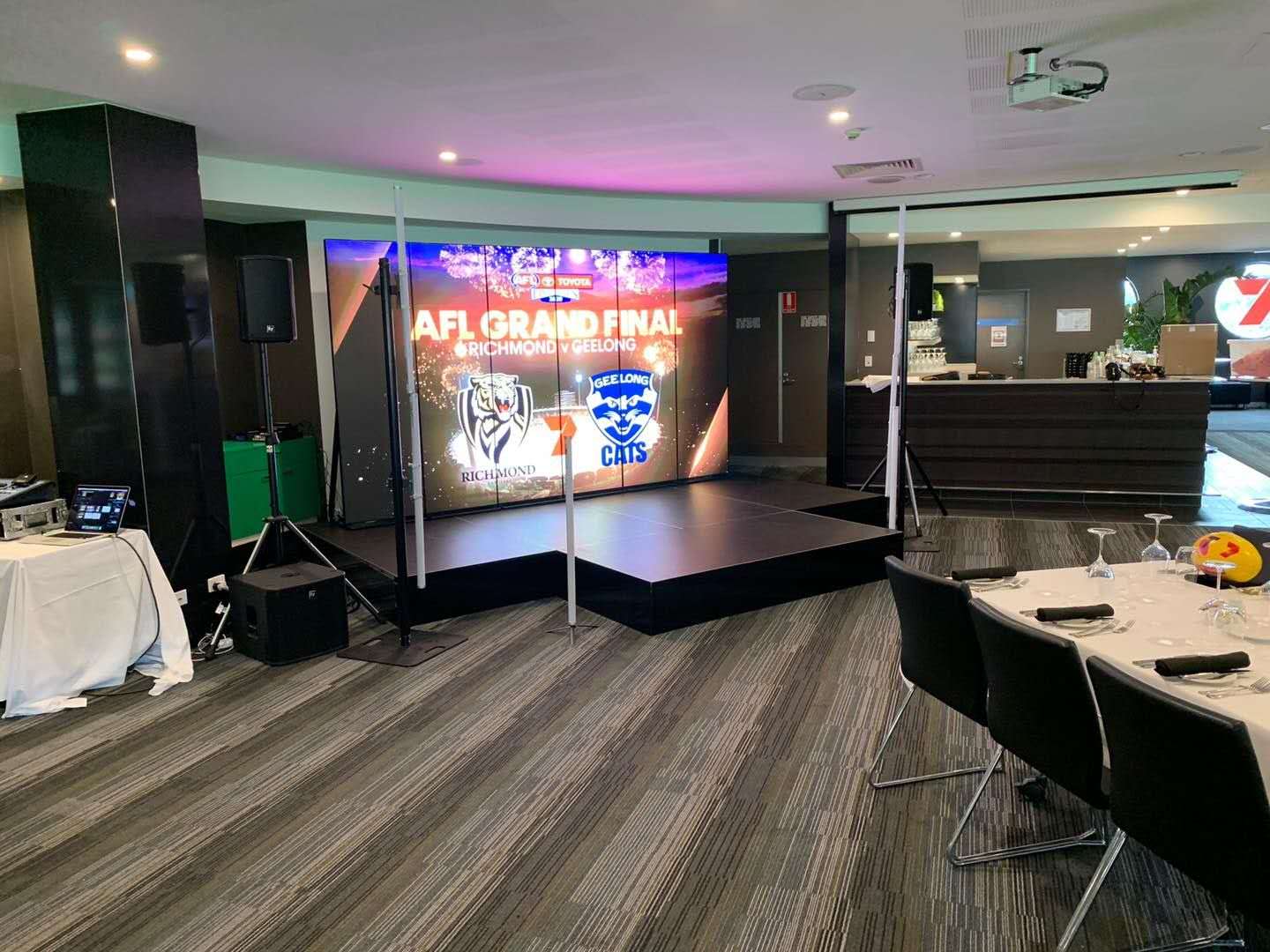

Commercial LED display screen applications :

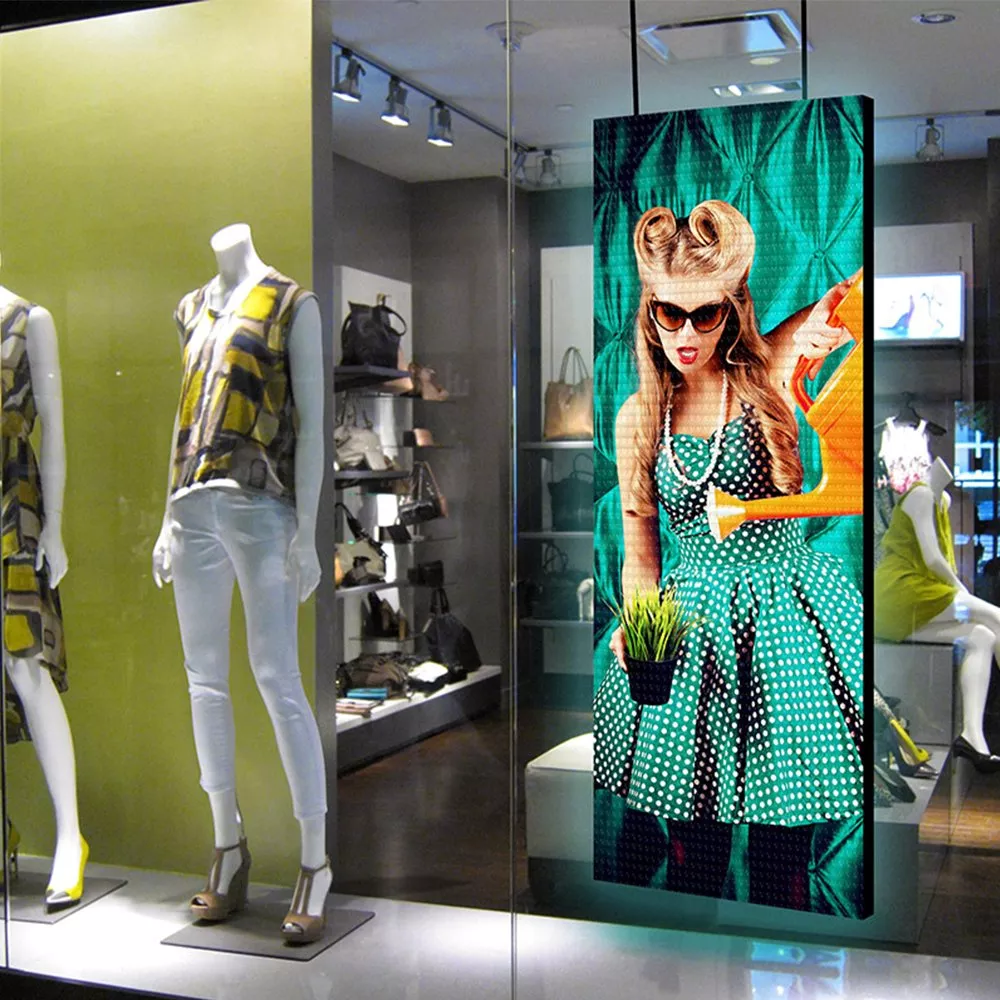

This indoor movable adverts led poster widely use for shops, hotel,
wedding, meeting
guidence, new product presentation, autocar 4S shop, high-end cloth
chain shops, metro station, airport, etc. This led poster is also
called mirror led display.

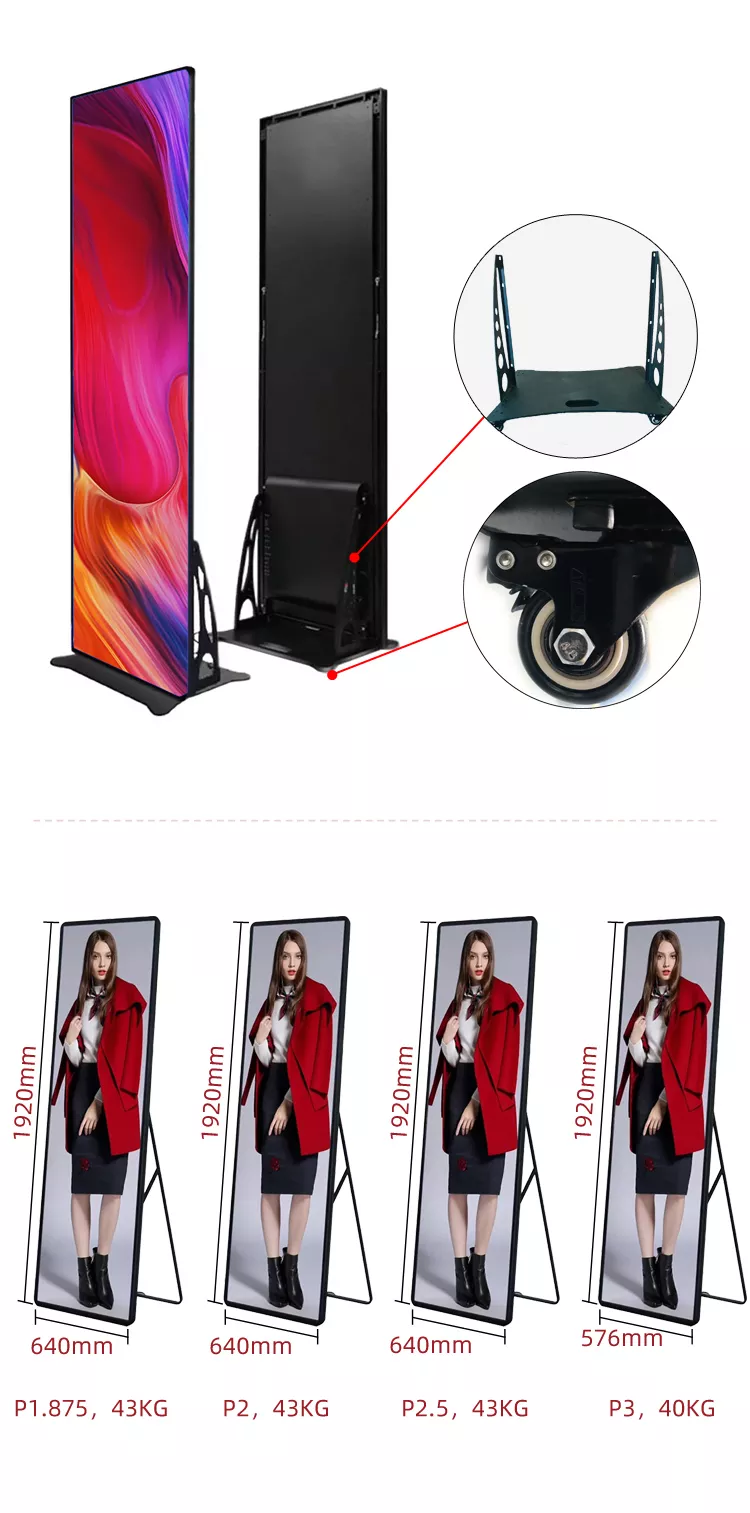

Flexible Installation
LED poster design based on flexible advers machine conception, so
you can horizontally /
vertically hang it on the wall or make it as floor standing.No need
extra harware except for our professionl hanging pendant.
Factory new design indoor full color high refresh led poster screen
for events
a--- Thin and light screen body, rear maintenance
b---Appearance design presents high-end atmosphere, fashion and
novelty.
c--- Auto-calibration design.
d--- The installation method is flexible and changeable, which can
meet the installation
requirements of various application scenarios.
Specifications:
Model | P2.5 | P2.5 | P3 | P3 |
Pixel Pitch | 2.5mm | 2.5mm | 3mm | 3mm |
Application | Indoor Outdoor Indoor Outdoor | | | |
LED Configuration | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
Pixel Density | 160,000dots/㎡ | 160,000dots/㎡ | 111,111dots/㎡ | 111,111dots/㎡ |
Module size | 160X160mm | 160X160mm | 192X192mm | 192X192mm |
Module Resolution | 64X64dot | 64X64dot | 64X64dot | 64X64dot |
Cabinet Size | 640X1920X38mm | 960X1920X38mm | 576X1920X38mm | 768X1920X38mm |
Cabinet Resolution | 256X768dots | 384X768dots | 192X640dots | 256X640dots |
Cabinet Weight | 35kg | 50kg | 30kg | 40kg |
IP Rating ( front/back) | IP40 | IP40 | IP40 | IP40 |
Brightness Intensity | ≥1000cd/㎡ | ≥1000cd/㎡ | ≥1000cd/㎡ | ≥1000cd/㎡ |
Viewing Angle | 140° | 140° | 140° | 140° |
View Distance | ＞2m | ＞2m | ＞3m | ＞3m |
Max./Avg. Power Consumption(W/m²) | 900W/300W | 1500W/500W | 800W/260W | 1100W/360W |
Refresh Frequency | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ |
Control Mode | Synchronous display with control PC by DVI | | | |
Operation Power | AC100/240 50/60HZ | | | |
Operating Condition | - 20℃~+50℃, 10~90% RH | | | |
FAQ :
Q1. What about LED Display MOQ?
A1. Any quantity is acceptable for your order. And the price is
negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to
the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt
industry top quality material,we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free,
spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
