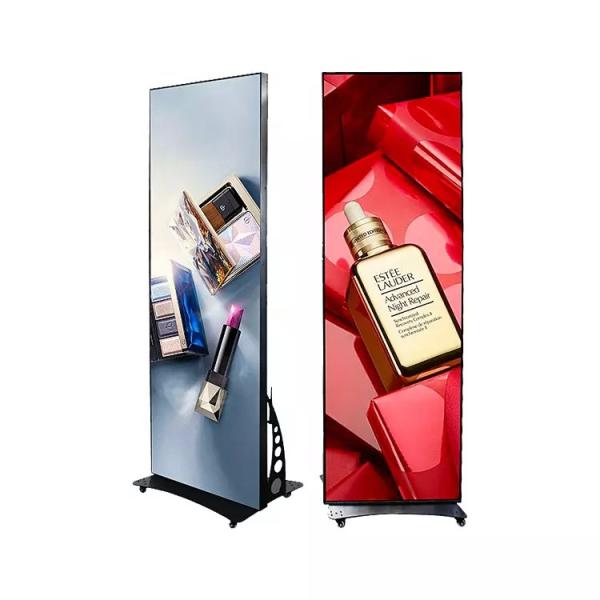

P2 P2.5 P3 Movable Floor Standing Digital Led Poster Display Wifi
4G For Outdoor
Advantage:
1. Can be released instantly via WIFI, 3G/4G , USB remote
2. Large-scale cluster control and management
3. Intelligent adjustment of screen brightness
4. Can send videos or pictures to interact with smart cloud screen
through smart terminal APP
Specifications:
Pixel Pitch | 2mm | 2.5mm | 3mm |
LED Type | SMD 1515 | SMD 2121 | SMD 2121 |
Pixel Density | 250,000 dots/m2 | 160,000 dots/m2 | 111,111 dots/m2 |
Module Size | 256 x 128mm | 320 x 160 mm | 192 x 192 mm |
Module Resolution | 128 x 64 dots | 128 x 64 dots | 64 x 64 dots |
Screen Size | 512 x 1920 mm | 640 x 1920 mm | 576 x 1920mm |
Screen Resolution | 256 x 960 dots | 256 x 768 dots | 192 x 640 dots |
Frame Size | 516 x 2000 x 45 mm | 644 x 2000 x 45 mm | 580 x 2000 x 45 mm |
Scren Mode | 1/32 Scan | 1/32 Scan | 1/32 Scan |
IC Dirver | ICN 2153 |
Brightness | 900 nits | 1,100 nits | 1,200 nits |
Power Supply Input | AC 90 - 240V |
Max Consumption | 720W | 650W | 600W |
Average Consumption | 350W | 300W | 280W |
Fresh Frenquency | 3,840 Hz | | |
Gray Scale | 16 bits RGB |
IP Grade | IP32 |
View Angle | 140°(H) / 140°(V) |
Optimal Viewing Distance | 1 - 4 m | 2 - 5 m | 3 - 8 m |
Working Humidity | 10 % - 90 % RH |
Control Method | 4G / WiFi / Internet / USB / HDMI / Audio |
Control Mode | Asynchronous |
Frame Material | Aluminum |
Screen Protection | Waterproof, Rust-proof, Dust-proof, Anti-static, Anti-mildew |
Life | ≥100,000 Hours |
Weight | 42 kg | 42 kg | 42 kg |
Applications:
Poster LED display screens are widely used in government agencies
for government affairs, stations, banks, taxation, post and
telecommunications, hospitals, customs, securities markets, bidding
markets, schools, factories, ports, stadiums, airports,industry and
commerce, taxation, customs, monitoring centers and advertising.
The entertainment industry, and real estate trading centers and
other window industries that need publicity, as well as highways,
urban traffic management, urban environmental index
display, etc.
FAQ :
Q1. What about LED Display MOQ?
A1. Any quantity is acceptable for your order. And the price is
negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to
the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt
industry top quality material,we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free,
spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
