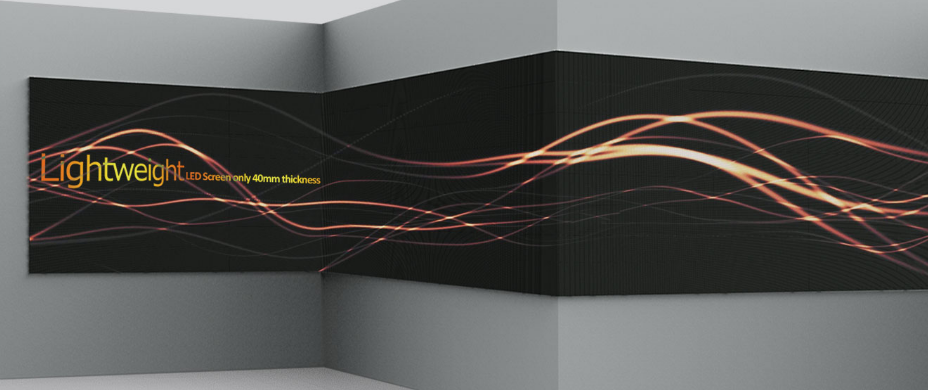

P3 P4 P5 P6 Lightweight Indoor Led Display Screen For Stage

Advantages

1. Indoor and Semi-outdoor available, over 5,000nits for semi-outdoor, reach a brilliantly video performance

2. Utra light, only 7.8kg per cabinet, 23kg/㎡;

3. 100% front and Rear maintenance for all parts;

4. Can be completely installed on the wall, saving maintenance space;

5. Seamless stitching. Can be at right angles, corners, to achieve different creative shapes.

Specification

Model	Semi-outdoor Series
Pixel Pitch (mm)	3	4	5	6	8
Pixel Density (dot/m²)	105625	62500	40000	22500	15628
LED Type	SMD
Brightness (CD/m²)	5000	5000	5000	5000	5000
Module Size (mm*mm)	320*160mm	320*160mm	320*160mm	320*160mm	320*160mm
Module Resolution (dot*dot)	104*52	80*40	64*32	48*24	40*20
Cabinet Size (LWH)	96032060mm	96032060mm	96032060mm	96032060mm	96032060mm
Cabinet Size (LWH)	64032060mm	64032060mm	64032060mm	64032060mm	64032060mm
Cabinet Resolution (dot*dot)	312*104	240*80	192*64	144*48	120*40
Cabinet Resolution (dot*dot)	208*104	160*80	128*64	96*48	80*40
Material	Die-casting Aluminum
Viewing Angle	H: 140°/V: 140°	H: 140°/V: 140°	H: 140°/V: 140°	H: 140°/V: 140°	H: 140°/V: 140°
Refresh Rate (Hz)	1920Hz～3840Hz	1920Hz～3840Hz	1920Hz～3840Hz	1920Hz～3840Hz	1920Hz～3840Hz
Best Viewing Distance	>3m	>4m	>5m	>6m	>8m
Gray Scale (bit)	14~16bit	14~16bit	14~16bit	14~16bit	14~16bit
Max/Avg. Power Consumption (Wm²)	800W/385W	800W/385W	800W/385W	800W/385W	800W/385W
AC Input Voltage (V)	AC 100～240V	AC 100～240V	AC 100～240V	AC 100～240V	AC 100～240V
Waterproof Level	IP54	IP54	IP54	IP54	IP54
Maintenance	100% Front Service

Product Discription

P3 P4 P5 P6 Lightweight Indoor Led Display Screen For Stage

Front Access

● Front access for wall-mounted installation.
● Take out the modules directly for front access

100% Front maintenance module and all other components

100% Rear maintenance module and all other components

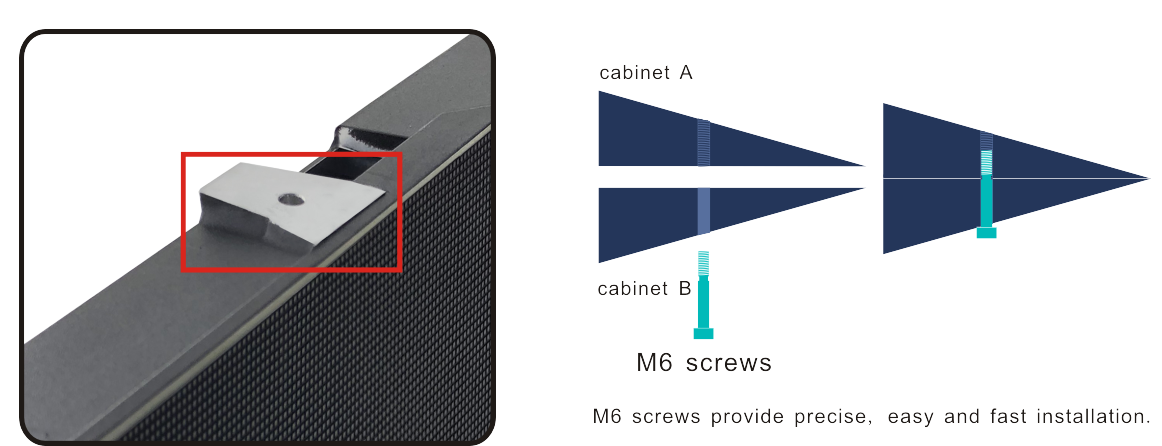

High precision splicing

SEAMLESS SPLICING

Realize seamless joint and convenient installation

Flexible modeling, Outer arc and Inner arc splicing diversity

90 degrees Angle wall splicing, seamless perfect display

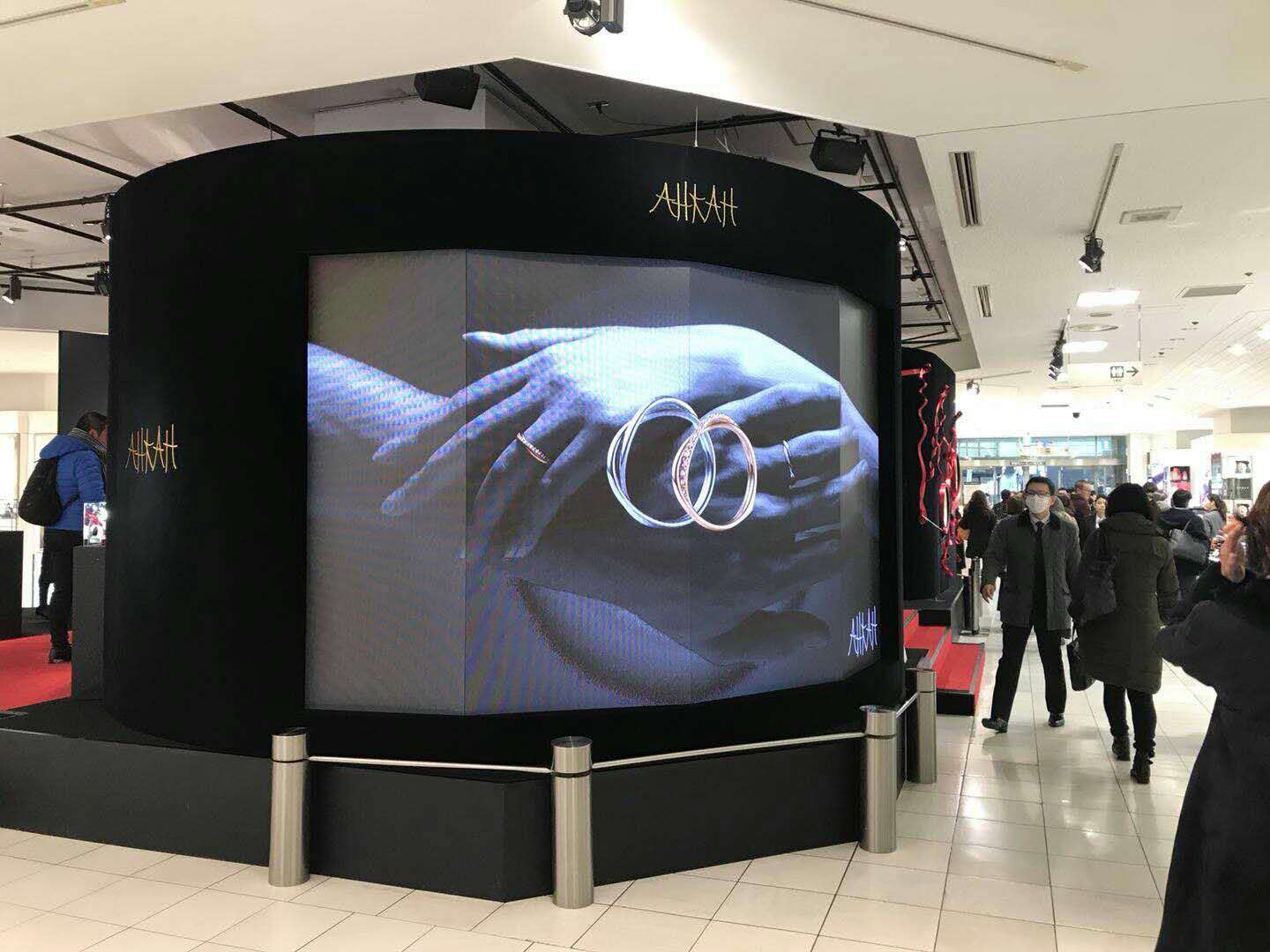

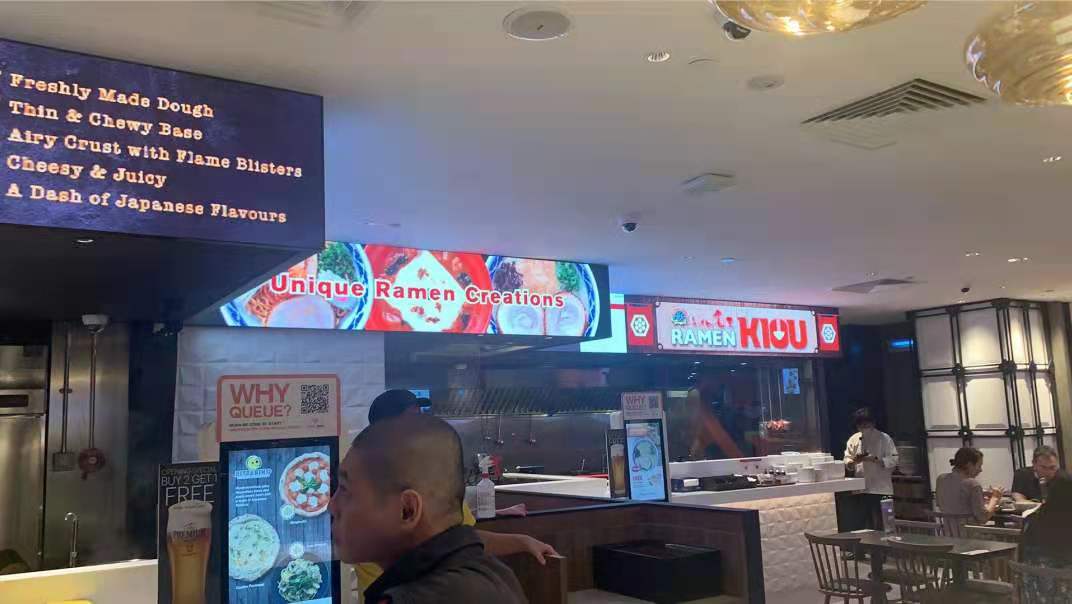

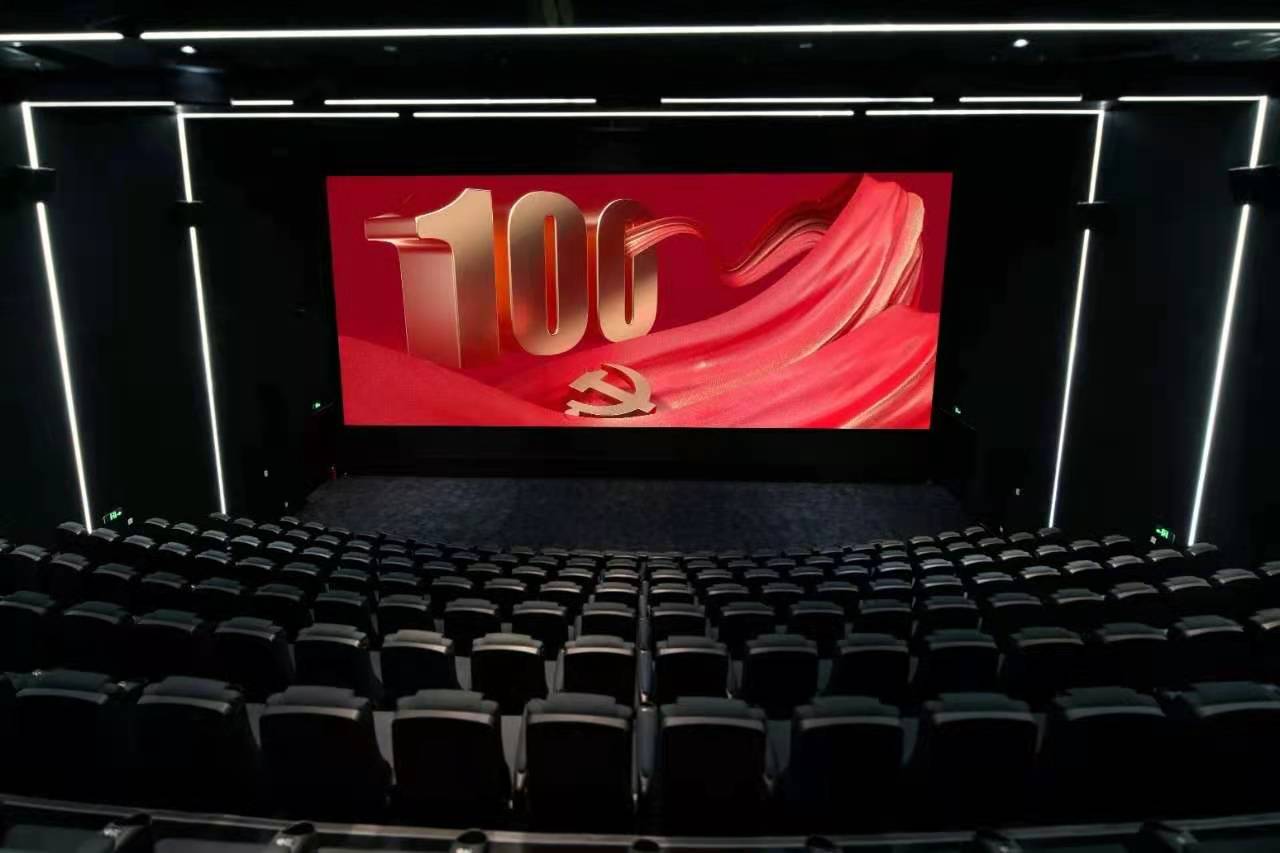

Application

FAQ

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month. 8 modernized dust-free and static-free production lines, 6 new YAMAHA and PANASONIC high speed SMT machines, 2 large leadless reflow oven,250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock,10-15 days for the new production led finished screen according to the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.But you are willing to pay extra money for after sales and adopt industry top quality material, we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
