Model Number : | DL series |
Brand Name : | Longvison |
Supply Ability : | 3000 Square Meter/Square Meters per Month |
Price : | negotiable |
Certification : | CE, ROHS, UL, FCC |
Payment Terms : | T/T |
Delivery Time : | 7-20 work days |
Advantages |

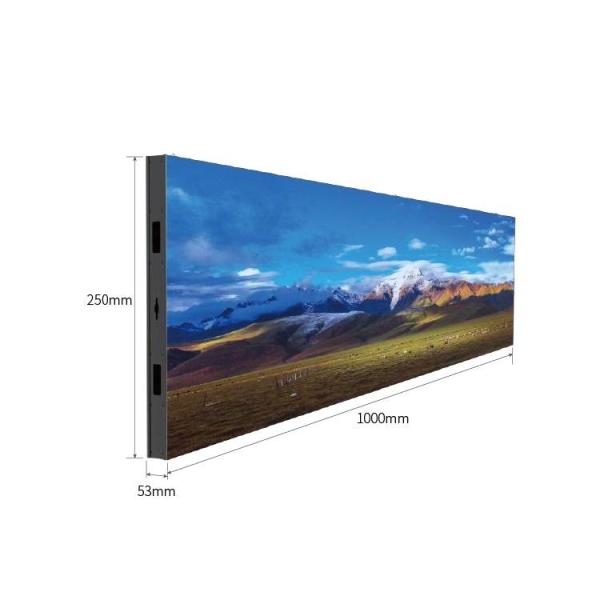

1. Ultra thin(only 53mm thickness), Super light (only 7kg per
cabinet) 2. Fast installation and front maintenance, more convenient 3. Double sided display, both of the sides can be synchronous or
asynchronous to meet different needs 4. Support split-screen multi-module display 5. High brightness and contrast, good color saturation |
Specification
Model | Indoor Series | ||||
Pixel Pitch (mm) | 1.83 | 2 | 2.5 | 3 | 4 |
Pixel Density (dot/m²) | 295664 | 250000 | 160000 | 105625 | 62500 |
LED Type | SMD | ||||
Brightness (CD/m²) | 800~1000 | 800~1000 | 800~1000 | 800~1000 | 800~1000 |
Module Size (mm*mm) | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
Module Resolution (dot*dot) | 174*87 | 160*80 | 128*64 | 104*52 | 80*40 |
Cabinet Size (L*W*H) | 960*320*60mm | 960*320*60mm | 960*320*60mm | 960*320*60mm | 960*320*60mm |
640*320*60mm | 640*320*60mm | 640*320*60mm | 640*320*60mm | 640*320*60mm | |
Cabinet Resolution (dot*dot) | 522*174 | 480*160 | 384*128 | 312*104 | 240*80 |
348*174 | 320*160 | 256*128 | 214*104 | 160*80 | |
Material | Die-casting Aluminum | ||||
Viewing Angle | H: 140°/V: 140° | H: 140°/V: 140° | H: 140°/V: 140° | H: 140°/V: 140° | H: 140°/V: 140° |
Refresh Rate (Hz) | 1920Hz~3840Hz | 1920Hz~3840Hz | 1920Hz~3840Hz | 1920Hz~3840Hz | 1920Hz~3840Hz |
Best Viewing Distance | >1.8m | >2m | >2.5m | >3m | >4m |
Gray Scale (bit) | 14~16bit | 14~16bit | 14~16bit | 14~16bit | 14~16bit |
Max/Avg. Power Consumption (Wm²) | 500W/250W | 500W/250W | 500W/250W | 500W/250W | 500W/250W |
AC Input Voltage (V) | AC 100~240V | AC 100~240V | AC 100~240V | AC 100~240V | AC 100~240V |
Waterproof Level | IP40/ IP20 | IP40/ IP20 | IP40/ IP20 | IP40/ IP20 | IP40/ IP20 |

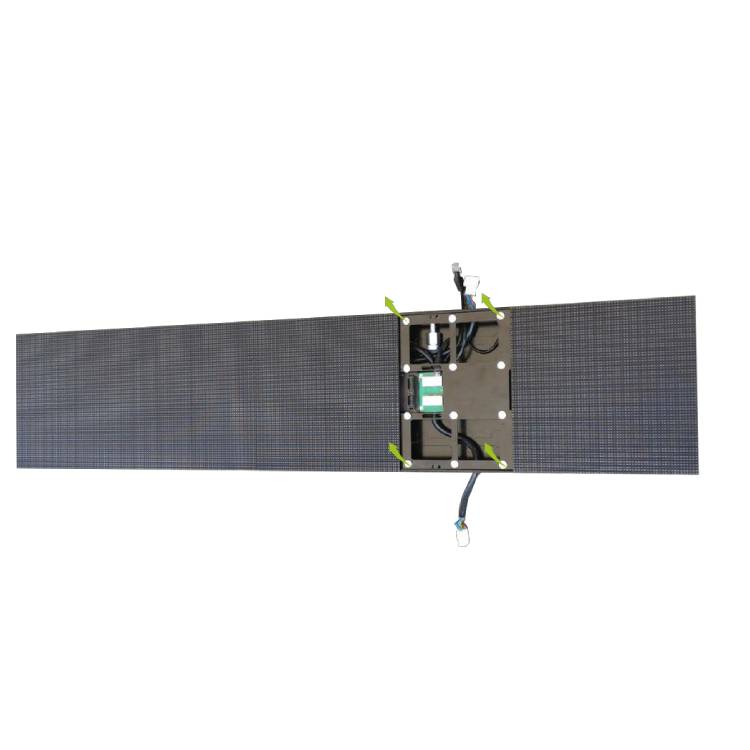

Maintenance | 100% Front Service |
