Custom P2 P2.5 P3 Led Screen Led Perimeter Display Indoor Outdoor

Ask Lasest Price
Model Number :	MVP series
Brand Name :	Longvison
Supply Ability :	3000 Square Meter/Square Meters per Month
Price :	negotiable
Certification :	CE, ROHS, UL, FCC
Payment Terms :	T/T
Delivery Time :	7-20 work days

Add to Cart

Product Details
Company Profile

Custom P2 P2.5 P3 Led Screen Led Perimeter Display Indoor Outdoor

Advantages

1. Indoor and Semi-outdoor available, over 5,000nits for semi-outdoor,

2. Utra light, only 7.8kg per cabinet, 23kg/㎡;

3. 100% front and Rear maintenance for all parts;

Specification

Model	Semi-outdoor Series
Pixel Pitch (mm)	3	4	5	6	8
Pixel Density (dot/m²)	105625	62500	40000	22500	15628
LED Type	SMD
Brightness (CD/m²)	5000	5000	5000	5000	5000

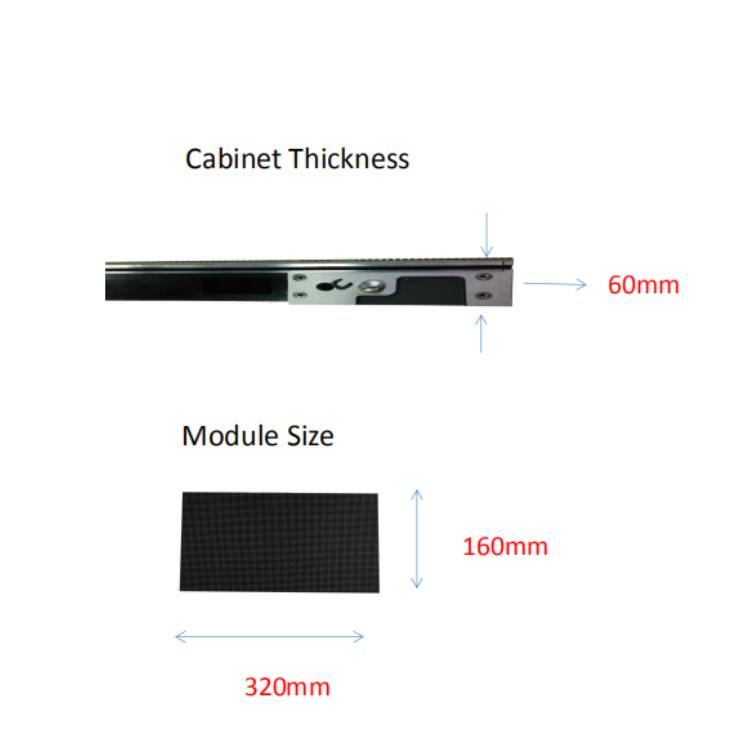

Module Size (mm*mm)	320*160mm	320*160mm	320*160mm	320*160mm	320*160mm
Module Resolution (dot*dot)	104*52	80*40	64*32	48*24	40*20
Cabinet Size (LWH)	96032060mm	96032060mm	96032060mm	96032060mm	96032060mm
Cabinet Size (LWH)	64032060mm	64032060mm	64032060mm	64032060mm	64032060mm
Cabinet Resolution (dot*dot)	312*104	240*80	192*64	144*48	120*40
Cabinet Resolution (dot*dot)	208*104	160*80	128*64	96*48	80*40
Material	Die-casting Aluminum
Viewing Angle	H: 140°/V: 140°	H: 140°/V: 140°	H: 140°/V: 140°	H: 140°/V: 140°	H: 140°/V: 140°
Refresh Rate (Hz)	1920Hz～3840Hz	1920Hz～3840Hz	1920Hz～3840Hz	1920Hz～3840Hz	1920Hz～3840Hz
Best Viewing Distance	>3m	>4m	>5m	>6m	>8m
Gray Scale (bit)	14~16bit	14~16bit	14~16bit	14~16bit	14~16bit
Max/Avg. Power Consumption (Wm²)	800W/385W	800W/385W	800W/385W	800W/385W	800W/385W
AC Input Voltage (V)	AC 100～240V	AC 100～240V	AC 100～240V	AC 100～240V	AC 100～240V
Waterproof Level	IP54	IP54	IP54	IP54	IP54
Maintenance	100% Front Service

Product Description

Custom P2 P2.5 P3 Led Screen Led Perimeter Display Indoor Outdoor

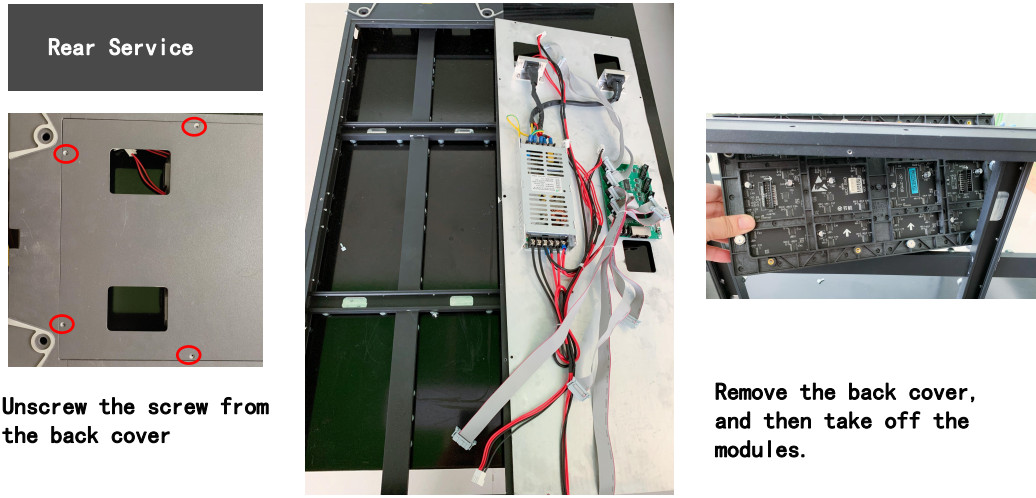

Maintenance: 100% front and Rear maintenance for all parts;

Application

Widely used in shopping malls, training center, meeting room, conference center, exhibition hall etc.

FAQ

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month. 8 modernized dust-free and static-free production lines, 6 new YAMAHA and PANASONIC high speed SMT machines, 2 large leadless reflow oven,250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock,10-15 days for the new production led finished screen according to the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.But you are willing to pay extra money for after sales and adopt industry top quality material, we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
