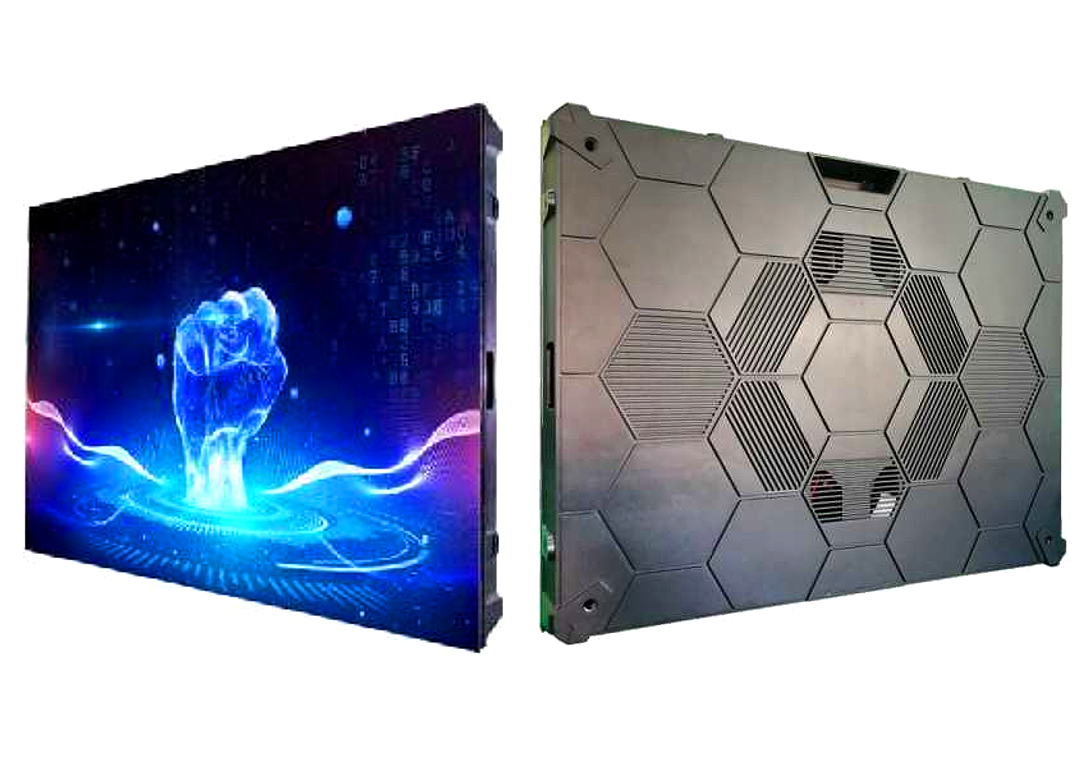

P1.875 P2.5 Fine Pitch Led Display 8k Led Video Wall Retail

Advantages

1. Ultra-light, Ultra-thin- Magnesium alloy die casting, single cabinet weight is only 6KG.
Cabinet size:640mm*480mm*50mm

2. Wide Viewing Angle ·Viewing Angle: 160°(horz.), 160°(vert.)

3. Excellent Visual Effect: Low brightness with high gray level and high refresh rate,
stable dynamic display effect and the visual experience is more comfortable.

4. High Reliability: Power and signal dual backup

Parameters	LH1.25	LH1.5	LH1.6	LH1.8	LH2.0	LH2.5	LH3.0	LH4.0	LH5.0
Pixel Pitch(mm)	1.25	1.538	1.667	1.839	2	2.5	3.076	4	5
LEDconfiguration	SMD1010	SMD1212		SMD1515		SMD2020
Module size(mm)	320*160*14
Module resolution	256*128	208*104	192*96	172*86	160*80	128*64	104*52	80*40	64*32
Cabinet size(mm)	640*480*50
Cabinet resolution	512*384	416*312	384*288	344*258	320*240	256*192	208*156	160*120	128*96
Cabinet weight(kg)	6
Brightness(cd/m2)	500-1000
Max Power Consumption	580(W/m2)				450(W/m2)	460(W/m2)	420(W/m2)	480(W/m2)	580(W/m2)
Avg Power Consumption	193(W/m2)				150(W/m2)	193(W/m2)	140W/m2)	160(W/m2)	193(W/m2)
Refresh rate	3840Hz						1920Hz
IPRatingfFront/Rear)	IP31/IP30

:

Shenzhen Longvision Technology Co., Ltd. (Longvision) is a professional LED display solution servicer. It is a high-tech enterprise focusing on providing customers with advertising display, data visualization, stage display equipment and overall technical solutions for commercial display. The company's core business includes small-pitch led screens, indoor and outdoor fixed led screens, rental led screens, creative led screens, window led screens, and stadium led screens. Its products are sold to more than 130 countries and regions, and are widely praised.

Longvision has a complete design, R & D, manufacturing, sales and installation service system, and an independent production base with modern workshops and automated production equipment. In addition, the company also recruited a large number of high-quality professional design, research and development, production and sales personnel, and created an excellent and stable service team. Specially for upholding down-to-earth and honest behavior, insisting on honesty, innovation in technology and processes, and treating each order as a quality project for production and supervision. In just a few years, it has been specially obtained It has been highly recognized by the country and industry.

"To Make the biggest Contribution to Staff’s Better Life and Social Progress", this is a special corporate vision, and it is also the goal to strive for. We would like to be together with you to "show a better world"!
