FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits

Product Categories

Shenzhen Longvision Technology Co., Ltd.

Contact Now

FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits

Ask Lasest Price
Brand Name :	Longvision
Model Number :	DJ series
Certification :	CE UL FCC ROHS
Price :	$1850.00-$245/Pcs
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	3000 Square Meter/Square Meters Per Month

Add to Cart

Product Details
Company Profile

FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits

FCC Outdoor Concert DJ Stage RGB Led Screens For Events Backdrop 5000nits

Advantages

Adopt high refresh rate, high gray scale constant current driver IC from world-renowned top manufacturers. It has excellent driving performance, stable and reliable characteristics.
The multi-layer circuit design ensures uniform current distribution and good heat dissipation of the lamp board, prevents color blocks from appearing under low gray-scale conditions, and enhances the anti-electromagnetic interference ability.
Dedicated 14bits high gray-scale, high refresh drive constant current IC. The unique blanking shadow circuit protects LED and prevents surge leakage.
The lamp driver is integrated, and the multi-layer circuit structure is designed. The current distribution is uniform. So the power consumption is small and the heat dissipation is fast.

This cabinet size is 500x500mm and 500x1000mm, which can be mixed installed of two size to be multipe stage events led display size, fast lock in dia-casting cabinet which can be fast installation in events, widely used in different applications, conference, weddings, large concerts, lauch events, broadcasting TV show and so on.

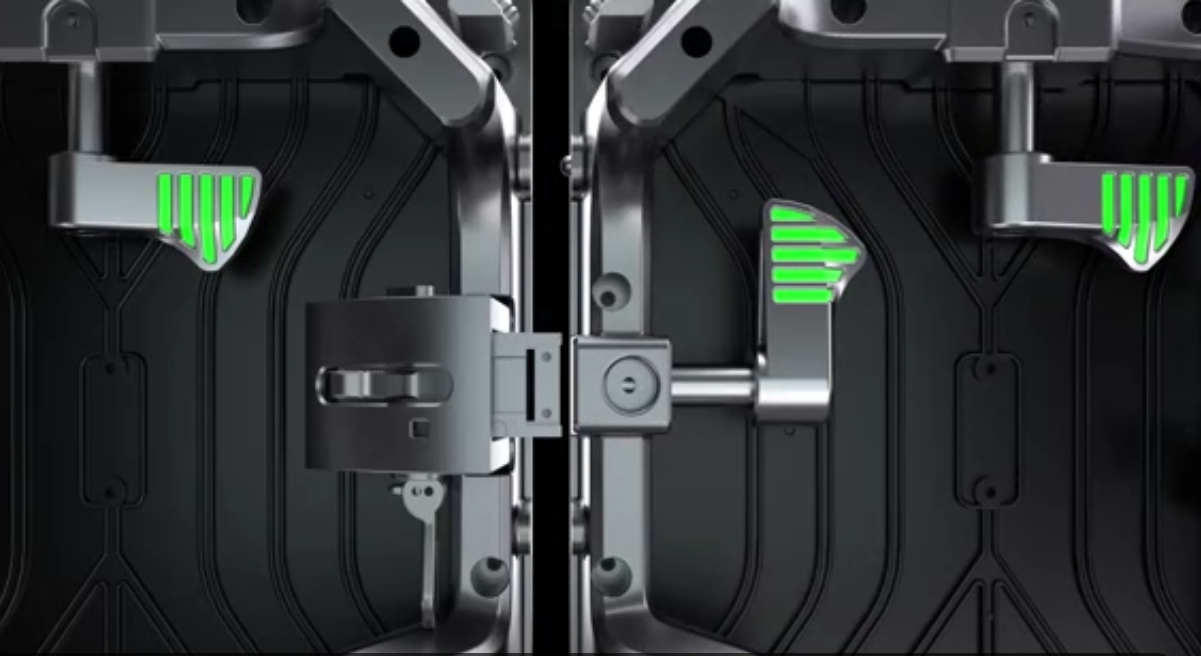

This cabinet is easy and fast maintenance, fast lock within 5 seconds to install and dismantle the led panels,control card ,power box,Led module all Integrated in one

4 corner protections on the Led cabinet to protect the lamp and mask from damage

in events, getting a long life time and saving much cost for maintenance of Led panels.

Curve design,inner 15° and outer 15 °,widely used in mutiple different shape Led events.

High brightness can show best video visual performance and more clear picture under

strong x-ray sunshine at day time Led events

As PWM IC driver was applied on lED cabinet, it enhances visual refresh rate by reinforcing pulse wave width and dividing conducting time to numbers of shorter conducting time. Besides, GCLK frequency multiplier increases GCLK frequency to realize doubling refresh rate

Not only refresh rate, this led panel grayscale also benefits from PWM IC driver. Grayscale is smoother comparing with common IC driver especially at low grayscale

Specifications
Model	A-P2.84	A-3.91	A-3.91	A-4.81	A-5.95
Pixel Pitch (mm)	2.84	3.91	3.91	4.8	5.95
Application	Indoor Rental			Outdoor Rental
Pixel Density (dot/m²)	147456	112896	112896	65536	43264
LED Configuration	SMD2020	SMD2020	SMD1921	SMD2727	SMD2727
Brightness (CD/m²)	≥1000nit	≥1000nit	≥5000nit	≥5000nit	≥5500nit
*Module Size (mmmm)**	*250250mm**
*Module Resolution (dotdot)**	*9696**	*6464**	*6464**	*5252**	*4242**
*Cabinet Size (WHD)/(mm)*	*50050080*
*Cabinet Resolution (dotdot)**	*192192**	*128128**	*128128**	*104104**	*8484**
Material	Die-casting Aluminum
Angle Lock Degree	±5°,±10°
Cabinet Weight (±0.25kg)	7.0kg/cbn	7.0kg/cbn	7.5kg/cbn	7.5kg/cbn	7.5kg/cbn
Viewing Angle	Horizontal:140° Vertical:140°
Refresh Rate (Hz)	≥1920hz / ≥3840hz
Viewing Distance (m)	>2.84m	>3.91			>4.81	>5.95
Gray Scale (bit)	14bit
Max/Avg. Consumption (W/m²)	480W/180W	500W/200W	560W/220W	600W/250W	650W/280W
AC Input (V)	100～240V	100～240V	100～240V	100～240V	100～240V
AC Frequency (Hz)	50～60Hz	50～60Hz	50～60Hz	50～60Hz	50～60Hz
Waterproof Level	IP43	IP43	IP65	IP65	IP65
Maintenance	100% Front & Rear Service
Control system	Nova/Linsn/Colorlight..

Applications:

Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums,

tparking lots, building walls, hotel, meeting room, offices , hospital , schools ,

flactories , commercial lighting , shopping malls, supermarkets,concerts,

TV show and so on

FAQ:

Q1: Are you trading company or manufacturer?

A1: Longvision is a professional LED display manufacturer, having been enrolled in led display industry

with professional R&D team and skilled QC team for 12 years.

Q2: What is your best price?

A2: One to one sales engineer to customer responsibility system.
We will do:
1. Know your project and provide the best solution for it;
2. Track your order and let you know each step and detail of it;
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after - sales service be well.

Q3: What is What’s the delivery time?

A3: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time

depends on the items and the quantity of your order

Q4: How about your Warranty Term?

A4: 2-5 years warranty.depends on project.
Structure design, installation problem, program the screen, how to use the screen…...
Don’t worry, we have professional after-sale team to solve your any questions after you placed an order. and your exclusive sales engineer will also help you get over any problems.Q5 How about your Warranty Term?Q3 What is your best service?Q5 How about your Warranty Term?

A5 3-years warranty.
Structure design, installation problem, program the screen, how to
use the screen…...
Don’t worry, we have professional after-sale team to solve your any
questions after you placed an order.and your exclusive sales engineer will also help you get over any
problems.
