Double Sided Advertising Taxi Top Led Display Roof For Car 4g Wifi 5mm P5

Ask Lasest Price
Model Number :	LV Series
Brand Name :	Longvision
Supply Ability :	3000 Set/Sets per Month
Price :	$769.00-$1256/Sets
Certification :	CE FCC ROHS UL CCC
Payment Terms :	D/P, T/T, Western Union, MoneyGram
Delivery Time :	5-8 Days

Add to Cart

Product Details
Company Profile

Double Sided Advertising Taxi Top Led Display Roof For Car 4g Wifi 5mm P5

Double Sided Advertising Taxi Top Led Display Roof For Car 4g Wifi 5mm P5

Product Advantages

1, Patent structure design,aluminum case with oxidation treatment,coating film for unti

ultraviolet, outdoor painting for anti-rusting and anti-aging.

2, High tranparent pc cover that not turning yellow color or old in 10 years.

3, high level powersupply,beyond voltage,current load,short circuit will be protected,
work in -40°C~+70°C environment.

4, Web control and could manage in anytime and any location through web browser.

No need for download software.

5, Easy installtion bracket , fast maintenance structure

Product Size

Here is standard size, special installation way should follow the car size.

Double Sided Advertising Taxi Top Led Display Roof For Car 4g Wifi 5mm P5

Bracket installation

Easy design leads a quick way installtion of bracket.

Sign installation

Each type of vehicle has different mounting racks.

Different lengths of mounting racks can be selected according to type to be installed.

The corresponding installation method can be designed according to different types of vehicles.

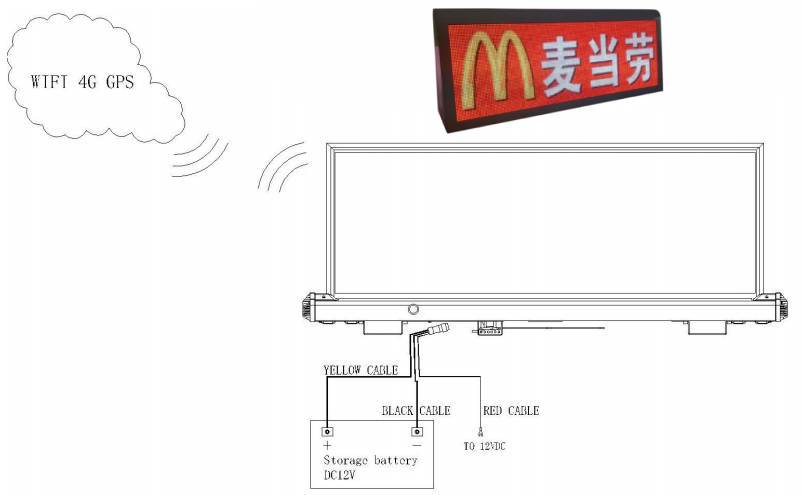

Connection Schematic Diagram

Main cable connect with car battery and control cable connect with lighter position.

Control schematic

Supports 3G 4G WIFI Internet connection.

Quickly and simply change your content anytime, anywhere.

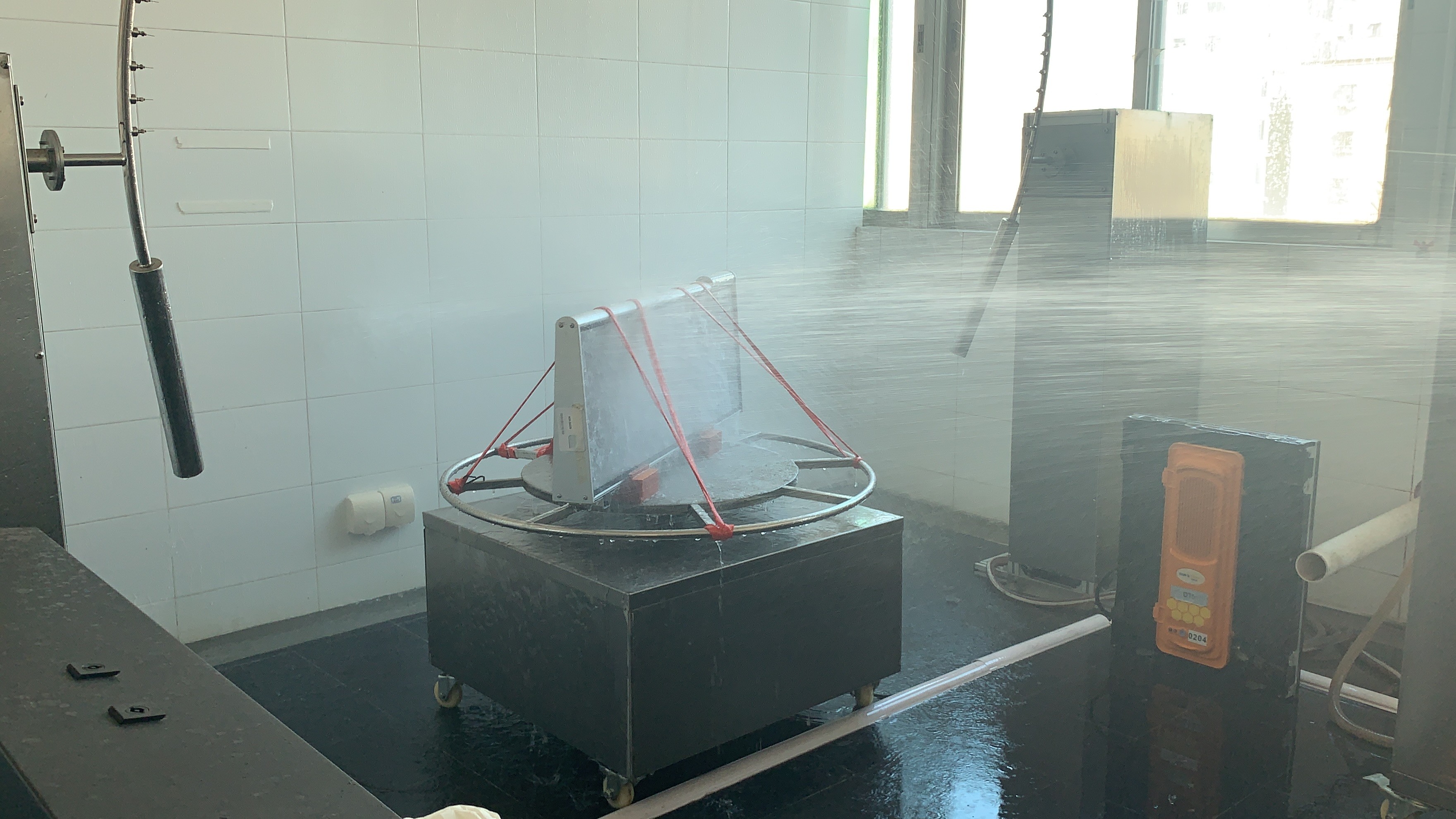

Waterproof Testing

IP65 High protection, can adapt to any extreme enviroment.

Taxi LED advertising screen cost performance is very high, what are

the advantages of taxi LED?

Taxi LED advertising screen cost performance is very high, what are the advantages of taxi LED advertising?

First, can chase the crowd, because the taxi to pull guests, so a city where there are many people, taxi drivers will take the initiative to find crowded areas, especially the location of major events, such as concerts, fairs, sports venues, hotels, hotels, etc.. This advantage is unmatched by any other medium.

Second, taxi LED advertising is not like fixed outdoor advertising, not fixed advertising, therefore, a wide audience. Taxis are not restricted by region, route, time, and time, and can reach every corner.

Third, the advertising effect is good, taxi LED advertising has the characteristics of high contact rate, high contact frequency, high arrival rate and large coverage. The height of taxi advertising is the same as the line of sight of people, and the advertising content can be transmitted to the public in close distance, so as to achieve the maximum visual opportunity and the highest reach rate, so the advertising effect is very good.

Fourth, the information release is flexible, not subject to the constraints of time and space, can be designated time constantly round broadcast, can receive, store, display information in the driving of the vehicle

Product Parameters
Item	P2.5	P3.33	P4	P5
Package Mode	SMD1415	SMD1921	SMD1921	SMD1921
Pixel Pitch	2.5mm	3.3mm	4mm	5mm
Pixel Configuration	1R1G1B	1R1G1B	1R1G1B	1R1G1B
LED Module
Module Size(W*H)	320mm*160mm	320mm*160mm	320mm*160mm	320mm*160mm
Module Weight	0.5Kg	0.6Kg	0.5Kg	0.5Kg
Module Resolution(W*H)	128Dots*64Dots	96Dots*48Dots	80Dots*40Dots	64Dots*32Dots
Pixel Density	160000dots/㎡	91828dots/㎡	62500dots/㎡	40000Dots/㎡
Scan Mode	16S	16S	10S	16S
Refresh Rate	3840Hz	3840Hz	3840Hz	1920-3840Hz
Brightness	≥5300CD/㎡	≥5500CD/㎡	≥5500CD/㎡	≥5500CD/㎡
Signal Processing	16Bit	16Bit	16Bit	16Bit
Port	HUB75	HUB75	HUB75	HUB75
Power Consumption	45W	45W	40W	40W
Protection Level	IP65	IP65	IP65	IP65
Temperature	Operating:-20℃～70℃ Storage:-40℃～85℃	Operating:-20℃～70℃ Storage:-40℃～85℃	Operating:-20℃～70℃ Storage:-40℃～85℃	Operating:-20℃～70℃ Storage:-40℃～85℃
Relative Humidity	Work:10%～90%,No Condensation Store:10%～90%,No Condensation	Work:10%～90%,No Condensation Store:10%～90%,No Condensation	Work:10%～90%,No Condensation Store:10%～90%,No Condensation	Work:10%～90%,No Condensation Store:10%～90%,No Condensation
Cabinet(Aluminum Cabinet or Iron Cabinet)
Screen Area(W*H)	960mm*320mm Double-sided	960mm*320mm Double-sided	960mm*320mm Double-sided	960mm*320mm Double-sided
Cabinet Size(WHTHK)	1080mm450mm58mm	1080mm450mm58mm	1080mm450mm58mm	1080mm45mm58mm
Cadbinet Weight	15Kg	15Kg	15Kg	15Kg
Cabinet Resolution(W*H)	384pixels*128pixels	288pixels*96pixels	240pixels*80pixels	192pixels*64pixels
Module Distribution(W*H)	32 Double sided	32 Double sided	32 Double sided	32 Double-sided
Installation Method	Fixed roof installation	Fixed roof installation	Fixed roof installation	Fixed roof installation
Power Consumption	Average:160W/PCS Max.:480W/PCS	Average:160W/PCS Max.:480W/PCS	Average:160W/PCS Max.:480W/PCS	Average:160W/PCS Max.:480W/PCS

Item	P2.5	P3.33	P4	P5
Best View Distance	2.5-15m	3m-16m	4m-18m	5m~20m
Best View Angle	140°(W)～120°(H)
Flatness	≤0.2mm
Working Voltage	DC12～24V±15% 40～65HZ
Control Method	Asynchronous Control, 4G control
Control Terminal	Laptop Mobile Phone
Temperature Sensor	Including
Brightness Sensor	Including
Smoke Alarms	Optional
Content	Office(DNG/JPEG/GIF/PNG/BMP/PSD) (AVI/JPEG/MOV/MPEG/DAT/VOB/BMP/JPG/TIFF/GIF/FLI/FLC/RMVB)
Life span	＞50000Hours
Package(Aluminum Cabinet)
Packing	Plywood case	Plywood case	Plywood case	Plywood case
Quantity	2PCS	2PCS	2PCS	2PCS
Weight	45kg	45kg	45kg	45kg

FAQ :

A 1, Who is Longvision?

Q1, Based in Shenzhen, Longvision is an professional OEM/ODM-led display factory, our products are sold to more than 130 countries and regions all over the world.

A2, Can I get a sample order?
Q2, Yes, warmly welcome. Strong partnerships are the result of every small trial. Price would be negotiated welcome based on bigger quantity.

A3, How does Longvision do regarding quality control?
Q3, "Quality is the foundation of an enterprise" that's our faith. Our factory has gained CE, FCC, RoHS, and other certifications.

A4, What is your after-sales service?
Q4, We offer 100% guarantee on our product and 24hrs non-stop service, you can find us for technology help anytime. We have
professional engineers who can speak English.

A5, When will you make the delivery?
Q5, We can deliver the goods within 7~15 working days according to the size of your projects.
