Brand Name : | Longvision |
Model Number : | LI series |
Certification : | CE, ROHS, UL, FCC |
Price : | negotiable |
Payment Terms : | T/T |
Supply Ability : | 3000 Square Meter/Square Meters per Month |
Delivery Time : | 7-20 work days |
2. Fast lock for quick installation, only takes 10 seconds
3. Full frontal maintenance, direct wall mounting
4. High-precision led screen cabinet, extending service life
Specification
Pixel Pitch(mm) | 4 | 5.33 | 6.67 | 8 | 10 |
Pixel Matrix Per Sq.m | 62500dots | 35200dots | 22500dots | 15625dots | 10000dots |
LEDs package | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |

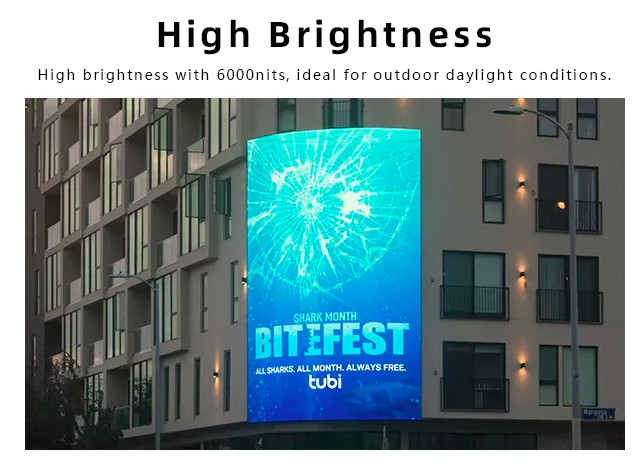

Brightness (cd/㎡) | ≥6000cd/㎡ | ≥6000cd/㎡ | ≥6000cd/㎡ | ≥6000cd/㎡ | ≥6000cd/㎡ |
Scan | 1/10 | 1/8 | 1/6 | 1/5 | 1/4 |
Module Dimension | 320*320mm | 320*320mm | 320*320mm | 320*320mm | 320*320mm |

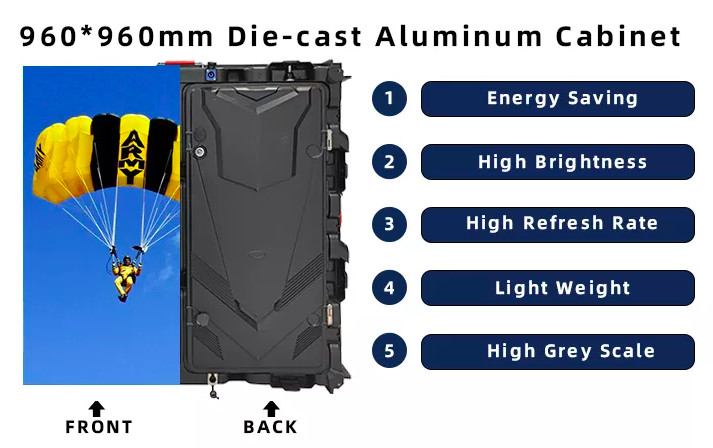

Cabinet Dimension | 960*960*160mm | 960*960*160mm | 960*960*160mm | 960*960*160mm | 960*960*160mm |
Cabinet Resolution | 240*240dots | 180*180dots | 144*144dots | 120*120dots | 96*96dots |
Cabinet Material | Iron | Iron | Iron | Iron | Iron |
Cabinet Weight | 40KGs | 40KGs | 40KGs | 40KGs | 40KGs |
Max. Power Consumption | 800W | 800W | 800W | 800W | 800W |
Ave. Power Consumption | 200-300W | 200-300W | 200-300W | 200-300W | 200-300W |
Service Access | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear |
Refresh Rate (HZ) | 1920HZ/ 3840HZ | 1920HZ/ 3840HZ | 1920HZ/ 3840HZ | 1920HZ/ 3840HZ | 1920HZ/ 3840HZ |
Grey Scale (bit) | 16 | 16 | 16 | 16 | 16 |
Viewing Angle (H/V) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
Best Viewing Distance | 4-40m | 5-53m | 6-67m | 8-80m | 10-100m |
IP Rate | IP65 | IP65 | IP65 | IP65 | IP65 |
Input Voltage (AC) | 110V-240V, 50/60HZ | 110V-240V, 50/60HZ | 110V-240V, 50/60HZ | 110V-240V, 50/60HZ | 110V-240V, 50/60HZ |
Product Discription
Application
Q1. What about LED Display MOQ?
![]() |
